神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-056) - COMPRESSOR ASSEMBLY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
500 次

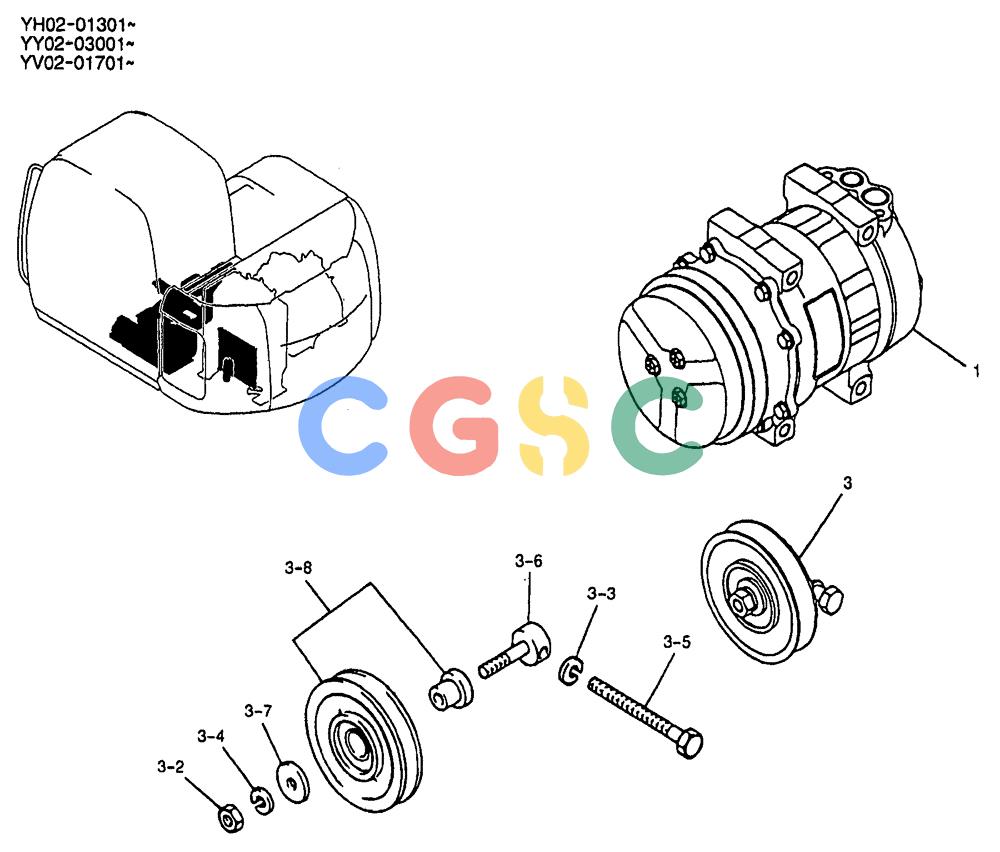

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX91V00002F2 | [1] | AIRCOND. COMPRESSOR | KOB |
| 1. | YX91V00001F1 | [1] | AIRCOND. COMPRESSOR,W/ Pulley | KOB |
| . . | YX91V00001F1R | [1] | REMAN-COMPRESSOR,W/ Pulley | KOBED150 BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554, SK135SR SHORT RADIUS EXCAVATOR ASN YY02-03001 |
| . . | YX91V00001F1C | [1] | CORE-COMPRESSOR | KOBReturn Number |
| 3. | YX20M01029F2 | [1] | PULLEY ASSY. | KOB Superseded by part number: YX20M01029F4 |
| 3-2. | 24100U1176S25 | [1] | NUT | KOBM10 |
| 3-3. | 24100U1176S27 | [1] | LOCK WASHER | KOBM08 Superseded by part number: 83990583 |
| 3-4. | 24100U1176S26 | [1] | LOCK WASHER | KOBM10 Superseded by part number: ZW26X10000 |
| 3-5. | 24100U1176S18 | [1] | BOLT | KOB |
| 3-6. | YX20M01029S006 | [1] | SHAFT | KOB |
| 3-7. | 24100U1176S19 | [1] | STOP | KOB |
| 3-8. | LC20M01060P1 | [1] | PULLEY | KOBAir Compressor Tension Superseded by part number: YX20M01029F4 |
