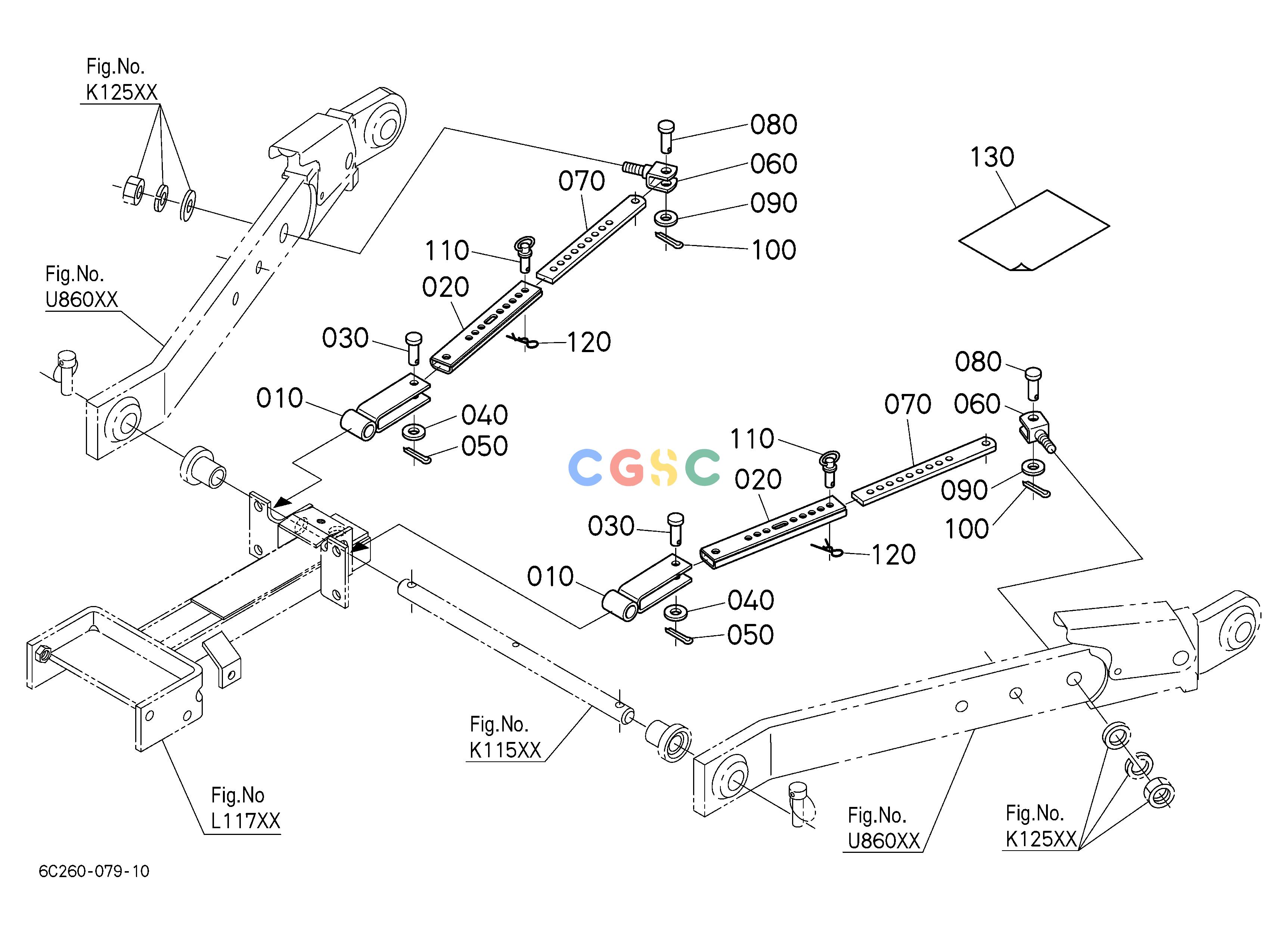

久保田零件查询U87000 3-P LINK KIT 3 (STABILIZER) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07265310
|
[2] |
BRACKET,STABILIZER
|
1.8920(lbs); 0.860
|
| 020. |
6C07065320
|
[2] |
PIPE,STABILIZER
|
1.7600(lbs); 0.800
|
| 030. |
0512251245
|
[2] |
PIN,JOINT
|
0.0924(lbs); 0.042
|
| 040. |
0401150120
|
[2] |
WASHER,PLAIN
|
0.0110(lbs); 0.005
|
| 050. |
0551150425
|
[2] |
PIN,SPLIT
|
0.0066(lbs); 0.003
|
| 060. |
6C07065350
|
[2] |
BOLT,STABILIZER
|
0.5500(lbs); 0.250
|
| 070. |
6C07265330
|
[2] |
PLATE,STABILIZER
|
1.1880(lbs); 0.540
|
| 080. |
0512251235
|
[2] |
PIN,JOINT
|
0.0748(lbs); 0.034
|
| 090. |
0401150120
|
[2] |
WASHER,PLAIN
|
0.0110(lbs); 0.005
|
| 100. |
0551150425
|
[2] |
PIN,SPLIT
|
0.0066(lbs); 0.003
|
| 110. |
6C07065340
|
[2] |
PIN,STABILIZER
|
0.0660(lbs); 0.030
|
| 120. |
0551551000
|
[2] |
PIN,SNAP
|
0.0044(lbs); 0.002
|
| 130. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
