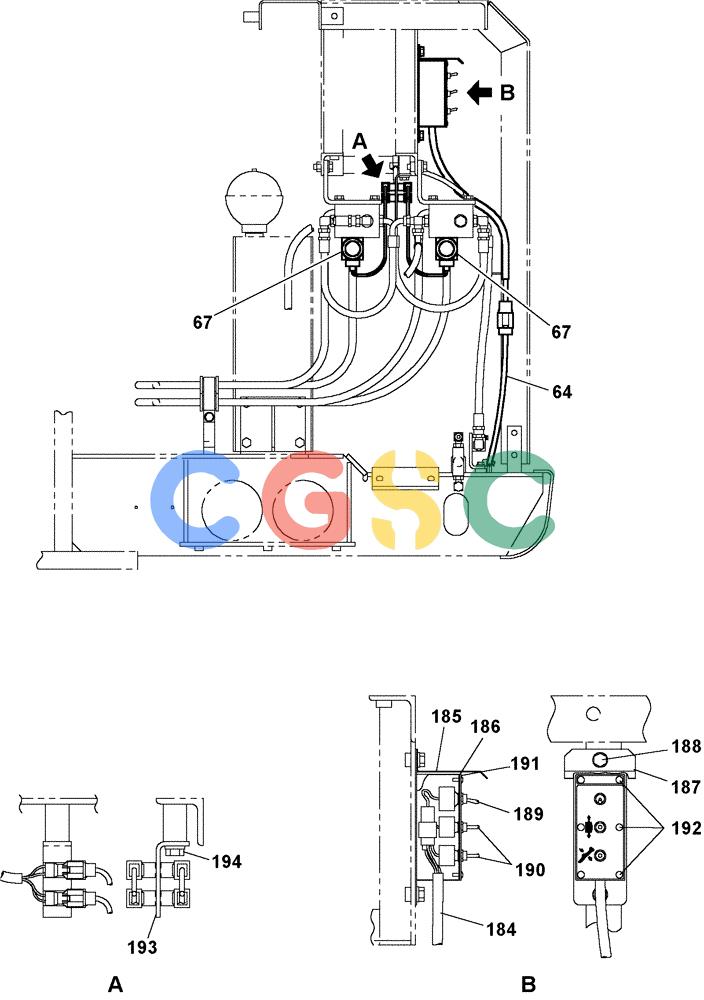

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (04-023-00[01]) - ELECTRICAL CIRCUIT - OPTIONAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
446 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 64. | KUR0085 | [1] | HARNESS | SUM |
| 67. | KUJ0288 | [2] | SOLENOID VALVE | SUM |
| 184. | KUR0090 | [1] | HARNESS | SUM |
| 185. | 150636A1 | [1] | BOX | SUM |
| 186. | 150642A1 | [1] | PACKING | SUM |
| 187. | KUR0055 | [1] | COVER | SUM |
| 188. | 166052A1 | [2] | BOLT | SUM Superseded by part number: 11106231 |
| 189. | KUR0053 | [1] | TOGGLE SWITCH | SUM |
| 190. | KUR0054 | [2] | TOGGLE SWITCH | SUM |
| 191. | KUR0056 | [1] | PANEL | SUM |
| 192. | 150875A1 | [6] | SCREW,Phil Truss Hd, M4 x 12mm | SUMM4 x 12 |
| 193. | KUR0091 | [1] | BRACKET | SUM |
