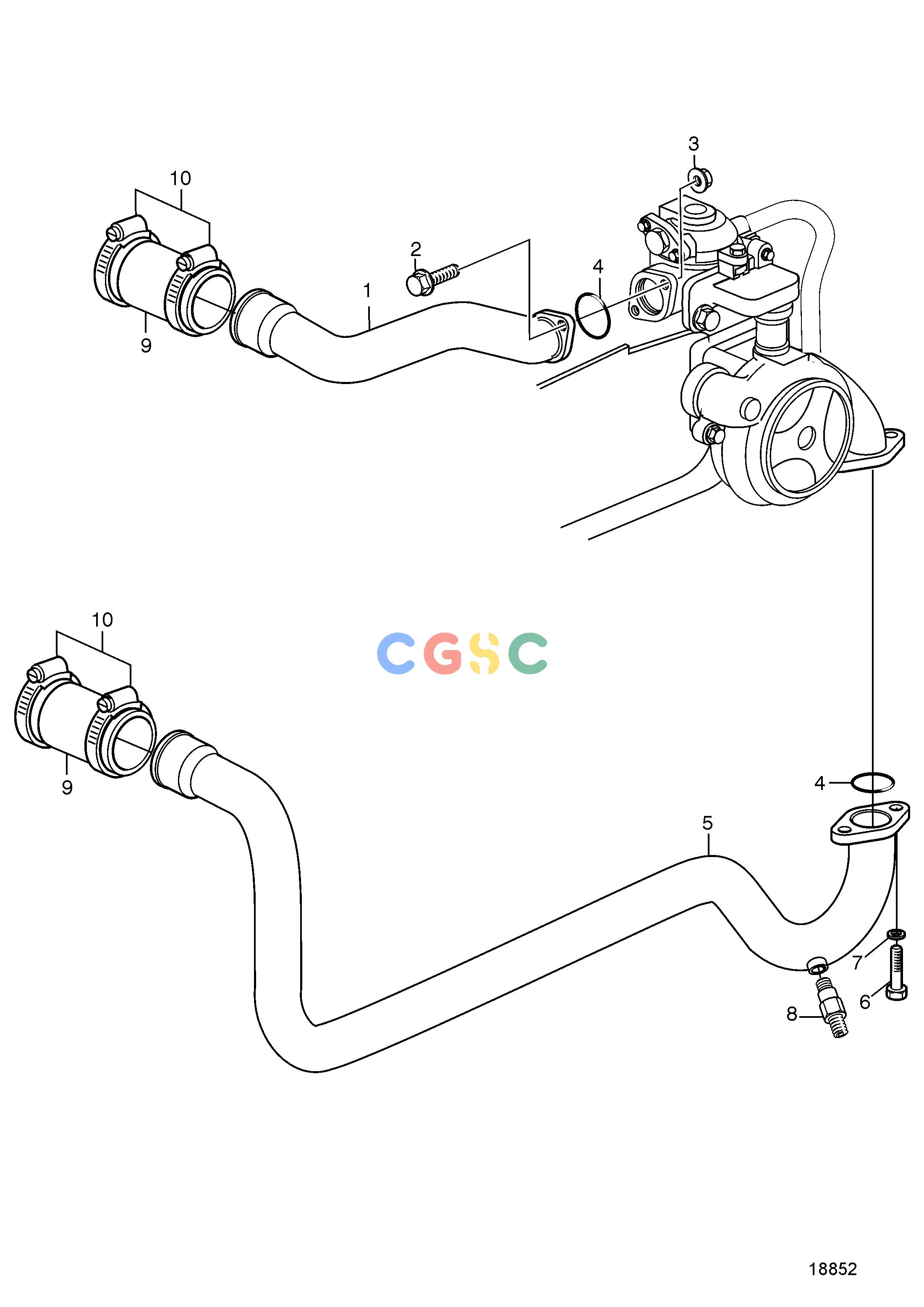

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemCooling Water Pipe for Thermostat House and Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829733
|
[1] |
Coolant pipe
|
|
| 2. |
945444
|
[2] |
Flange screw
|
|
| 3. |
955782
|
[1] |
Hexagon nut
|
|
| 4. |
925092
|
[2] |
O-ring
|
(975673)
|
| 5. |
3829735
|
[1] |
Coolant pipe
|
|
| 6. |
941907
|
[2] |
Spring washer
|
|
| 7. |
959229
|
[2] |
Hex. socket screw
|
|
| 8. |
949918
|
[1] |
Shut-off cock
|
|
| 9. |
949540
|
[2] |
Hose
|
|
| 10. |
961672
|
[4] |
Hose clamp
|
|
