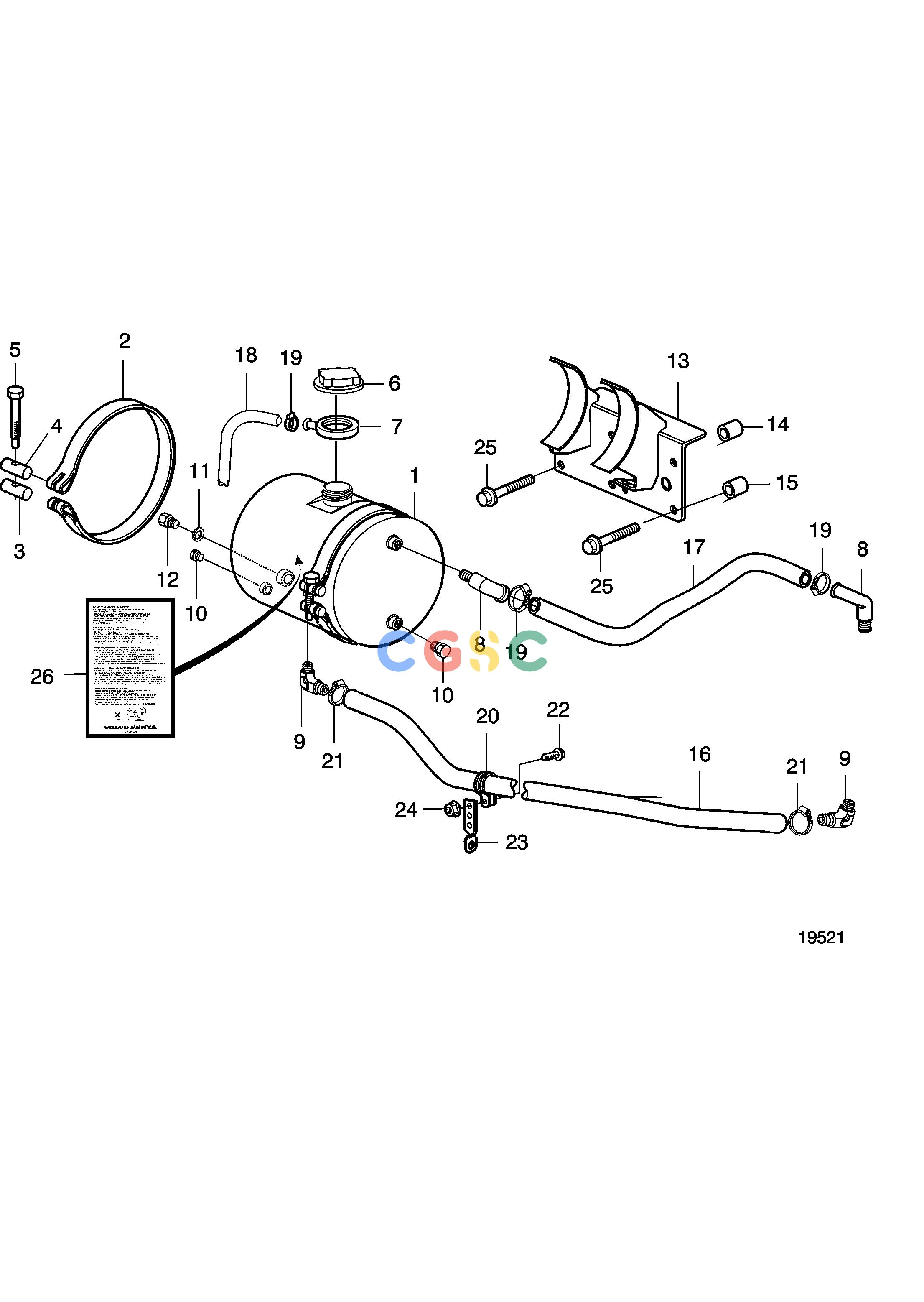

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemExpansion Tank for Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827367
|
[1] |
Expansion tank
|
|
| 2. |
339958
|
[2] |
Tensioning band
|
|
| 3. |
31405
|
[2] |
Pin
|
|
| 4. |
31404
|
[2] |
Clevis pin
|
|
| 5. |
31406
|
[2] |
Hexagon screw
|
|
| 6. |
1674083
|
[1] |
Pressure cap
|
75kPa
|
| 7. |
3828863
|
[1] |
Rubber collar
|
|
| 8. |
479953
|
[2] |
Elbow nipple
|
|
| 9. |
942649
|
[2] |
Elbow nipple
|
|
| 10. |
981749
|
[2] |
Plug
|
|
| 11. |
11998
|
[1] |
Gasket
|
|
| 12. |
960632
|
[1] |
Plug
|
|
| 13. |
3835107
|
[1] |
Bracket
|
|
| 14. |
847239
|
[2] |
Spacer sleeve
|
L=36mm
|
| 15. |
848694
|
[4] |
Spacer sleeve
|
L=33mm
|
| 16. |
944386
|
[1] |
Rubber hose
|
|
| 17. |
943367
|
[1] |
Rubber hose
|
L=470mm
|
| 18. |
192618
|
[1] |
Hose
|
L=1000mm
|
| 19. |
994556
|
[2] |
Hose clamp
|
|
| 20. |
952637
|
[1] |
Clamp
|
|
| 21. |
994560
|
[2] |
Hose clamp
|
|
| 22. |
967949
|
[1] |
Flange screw
|
|
| 23. |
354842
|
[1] |
Bracket
|
|
| 24. |
949278
|
[1] |
Flange lock nut
|
|
| 25. |
965184
|
[4] |
Flange screw
|
L=100mm
|
| 26. |
3825346
|
[1] |
Decal
|
|
