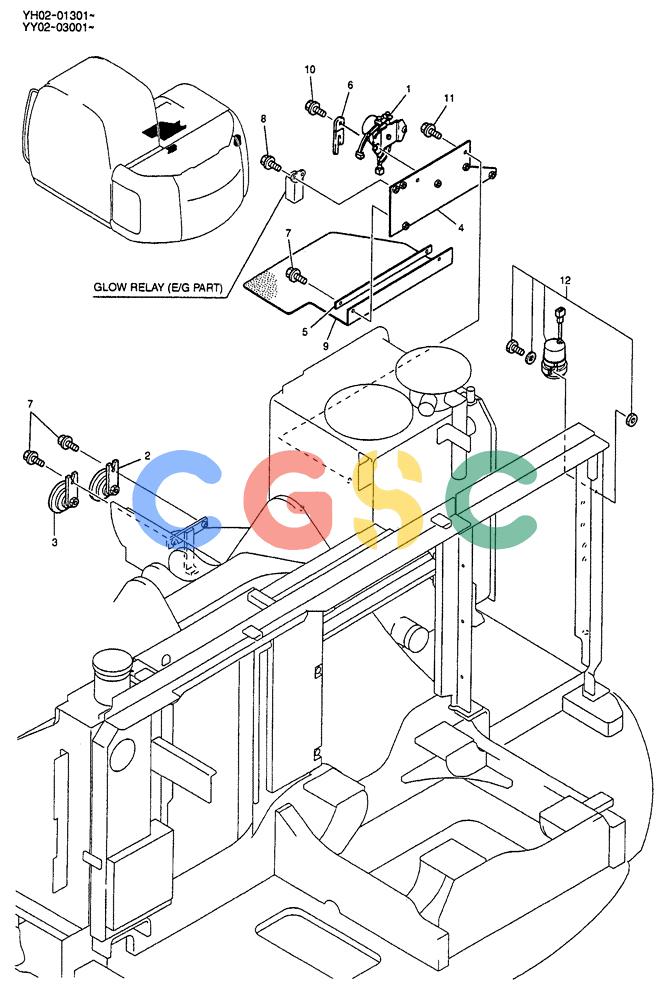

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-059) - ELEC ASSEMBLY, UPPER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX03E00002F2 | [1] | ELECTRIC PANEL | KOB |
| 1. | YN24S00003F1 | [1] | RELAY | KOBBattery (Includes fusible link) |
| 2. | 2479U1009F1 | [1] | HORN,24V, 390HZ | KOBHigh (415Hz) Superseded by part number: CM53S00002F1 |
| 3. | 2479U1009F2 | [1] | HORN,24V, 350HZ | KOBLow (390Hz) Superseded by part number: CM53S00002F2 |
| 4. | YX03E01008P2 | [1] | BRACKET | KOB Superseded by part number: YX03E01011P1 |
| 5. | YX03E01007P1 | [1] | PLATE | KOB Superseded by part number: YX03E01012P1 |
| 6. | 2432R233D2 | [1] | CLIP | KOB37x12x40mm |
| 7. | ZM11C08016 | [4] | BOLT | KOBM08x1.25x16mm (Incls. Lockwasher) |
| 8. | ZM61C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 9. | YX03E01010P1 | [1] | RUBBER | KOB Superseded by part number: YX03E01013P1 |
| 10. | ZM22C08030 | [2] | BOLT | KOBM08x1.25x30mm (Incls. Washer & Lockwasher) |
| 11. | ZM22C08020 | [2] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 12. | YN53S00002F1 | [1] | ALARM | KOB |
