纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (04-031-00[01]) - ELECTRICAL ACCESSORIES - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
940 次

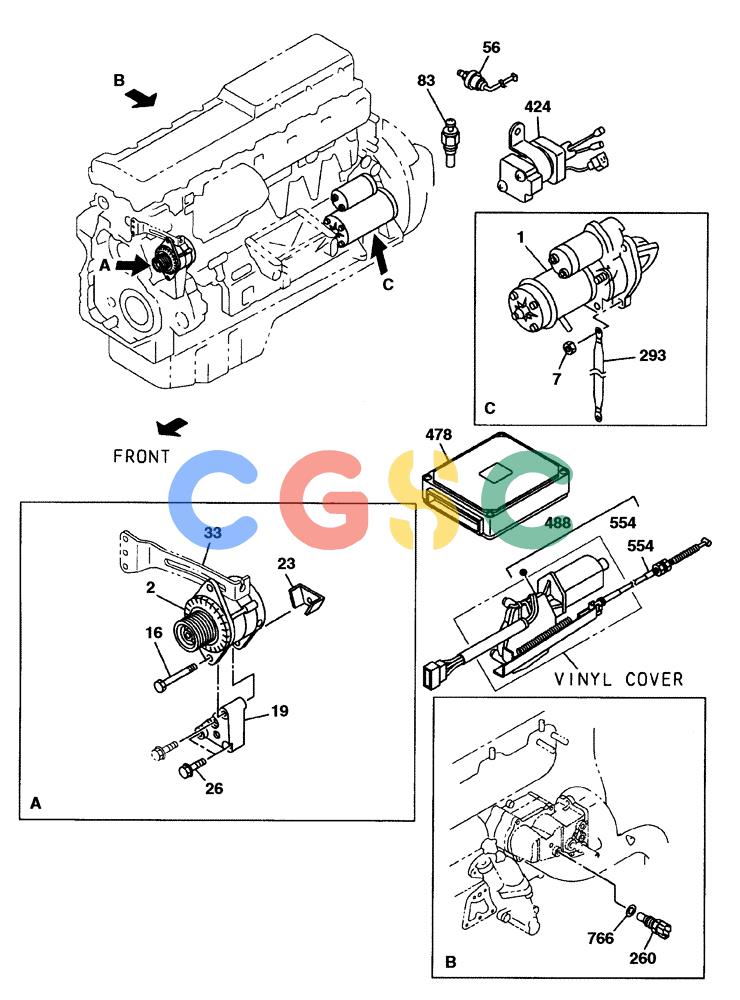

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426652A1 | [1] | STARTING MOTOR | ISU Superseded by part number: 76614470 |
| 2. | 426653A1 | [1] | ALTERNATOR | ISU Superseded by part number: 87528337 |
| 7. | 426270A1 | [3] | NUT | ISUCover Superseded by part number: 84477146 |
| 16. | 426654A1 | [1] | BOLT | ISUM14 x 157 |
| 19. | 426655A1 | [1] | SUPPORT | ISU |
| 23. | 437982A1 | [1] | SUPPORT | ISUSupport |
| 26. | 288635A1 | [2] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 33. | 443678A1 | [1] | TENSIONER | ISUTensioner |
| 56. | 426659A1 | [1] | SWITCH | ISU |
| 83. | 426660A1 | [1] | THERMOMETER | ISU Superseded by part number: 76552669 |
| 260. | 288817A1 | [1] | SENSOR | ISU |
| 293. | 426661A1 | [1] | CABLE | ISU |
| 424. | 167624A1 | [1] | RELAY,24V | SUM |
| 478. | 87408530 | [1] | ECU | ISU Superseded by part number: 87454373 |
| 488. | 426664A1 | [1] | CONTROL BLOCK | ISU |
| 554. | 426665A1 | [1] | CABLE | ISU |
| 776. | 426200A1 | [1] | GASKET | ISU16,2 ID |
