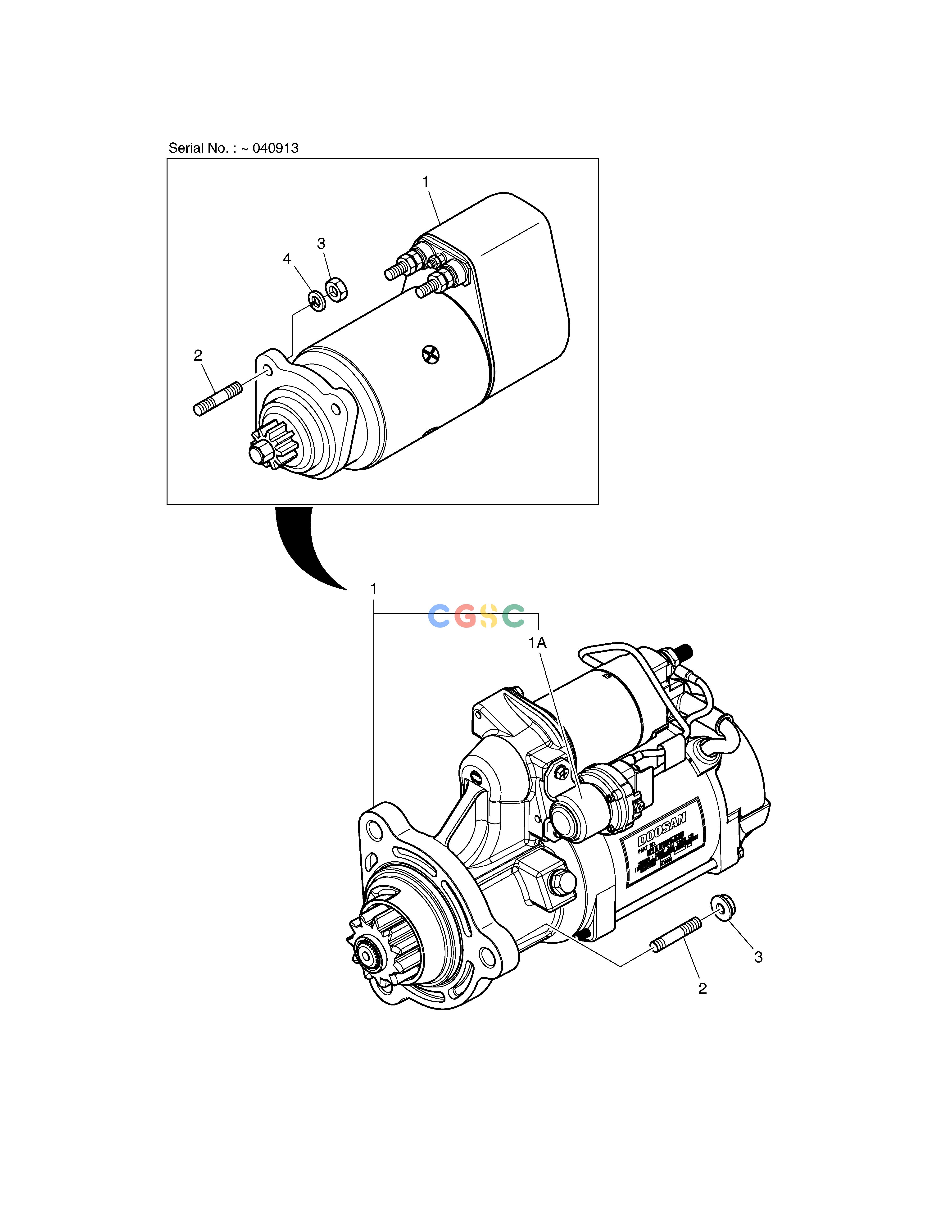

斗山零件查询STARTER SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.26201-7058A
|
[1] |
STARTER(DAC)
|
|
| 1. |
65.26201-7074
|
[1] |
STARTER(DAC)
|
65.26201-7074C
|
| 1. |
65.26201-7074C
|
[1] |
STARTER
|
65.26201-7074D
|
| 1. |
65.26201-7074D
|
[1] |
STARTER(DAC)
|
|
| 1. |
300516-00020
|
[1] |
|
300516-00020A
|
| 1. |
300516-00020A
|
[1] |
|
300516-00020B
|
| 1. |
300516-00020B
|
[1] |
|
|
| 1A. |
301206-00017
|
[1] |
RELAY,STARTER
|
|
| 2. |
06.06175-8308
|
[3] |
BOLT;STUD M12X1.5X30
|
06.06175-8309
|
| 2. |
06.06175-8309
|
[3] |
BOLT;STUD M12X1.5X35
|
|
| 3. |
06.11063-9216
|
[3] |
NUT;HEX. M12X1.5
|
65.90535-0005
|
| 3. |
65.90535-0005
|
[3] |
NUT;HEX M12X1.5
|
|
| 4. |
06.16731-2109
|
[3] |
WASHER;SPRING A12
|
|
