纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (04-033-01[01]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
644 次

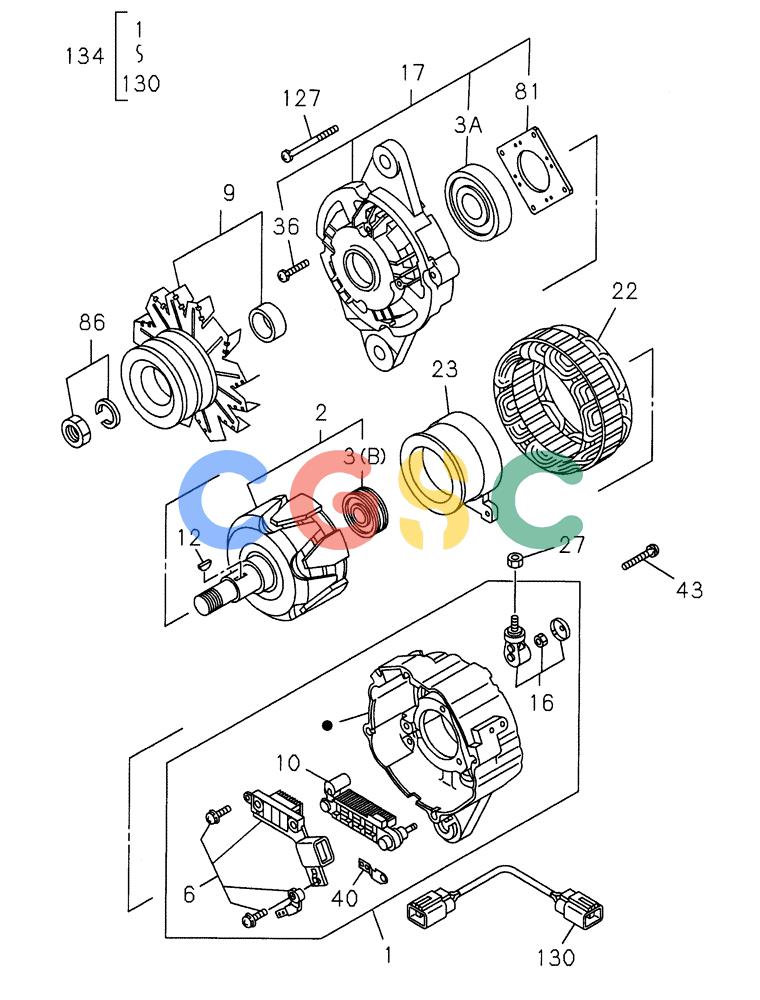

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 443836A1 | [1] | COVER ASSY | ISU |
| 2. | 443837A1 | [1] | ROTOR ASSY. | ISU |
| 3A. | 443839A1 | [1] | BALL BEARING | ISU |
| 3B. | 443838A1 | [1] | BALL BEARING | ISU Superseded by part number: 320557 |
| 6. | 443840A1 | [1] | REGULATOR | ISU |
| 10. | 443841A1 | [1] | RECTIFIER | ISU |
| 10. | 443842A1 | [1] | RECTIFIER | ISU |
| 12. | 443843A1 | [1] | KEY | ISU |
| 16. | 443844A1 | [1] | TERMINAL | ISU |
| 17. | 443845A1 | [1] | FLANGE COVER CAP | ISU |
| 19. | 443846A1 | [1] | ELECTRIC PULLEY | ISU |
| 22. | 443847A1 | [1] | ALTERNATOR STATOR | ISU |
| 23. | 443856A1 | [1] | COIL | ISU |
| 27. | 443848A1 | [1] | NUT | ISU |
| 36. | 443849A1 | [1] | SCREW | ISU |
| 43. | 438012A1 | [1] | SCREW | ISU |
| 43. | 443851A1 | [1] | SCREW | ISU |
| 43. | 443852A1 | [1] | SCREW | ISU |
| 81. | 443853A1 | [1] | SPACER | ISU |
| 86. | 426814A1 | [1] | NUT | ISU Superseded by part number: 72110737 |
| 127. | 443854A1 | [1] | KIT | ISU |
| 130. | 443855A1 | [1] | ELEC CONNECTOR | ISU |
| 134. | 426653A1 | [1] | ALTERNATOR | ISU Superseded by part number: 87528337 |
