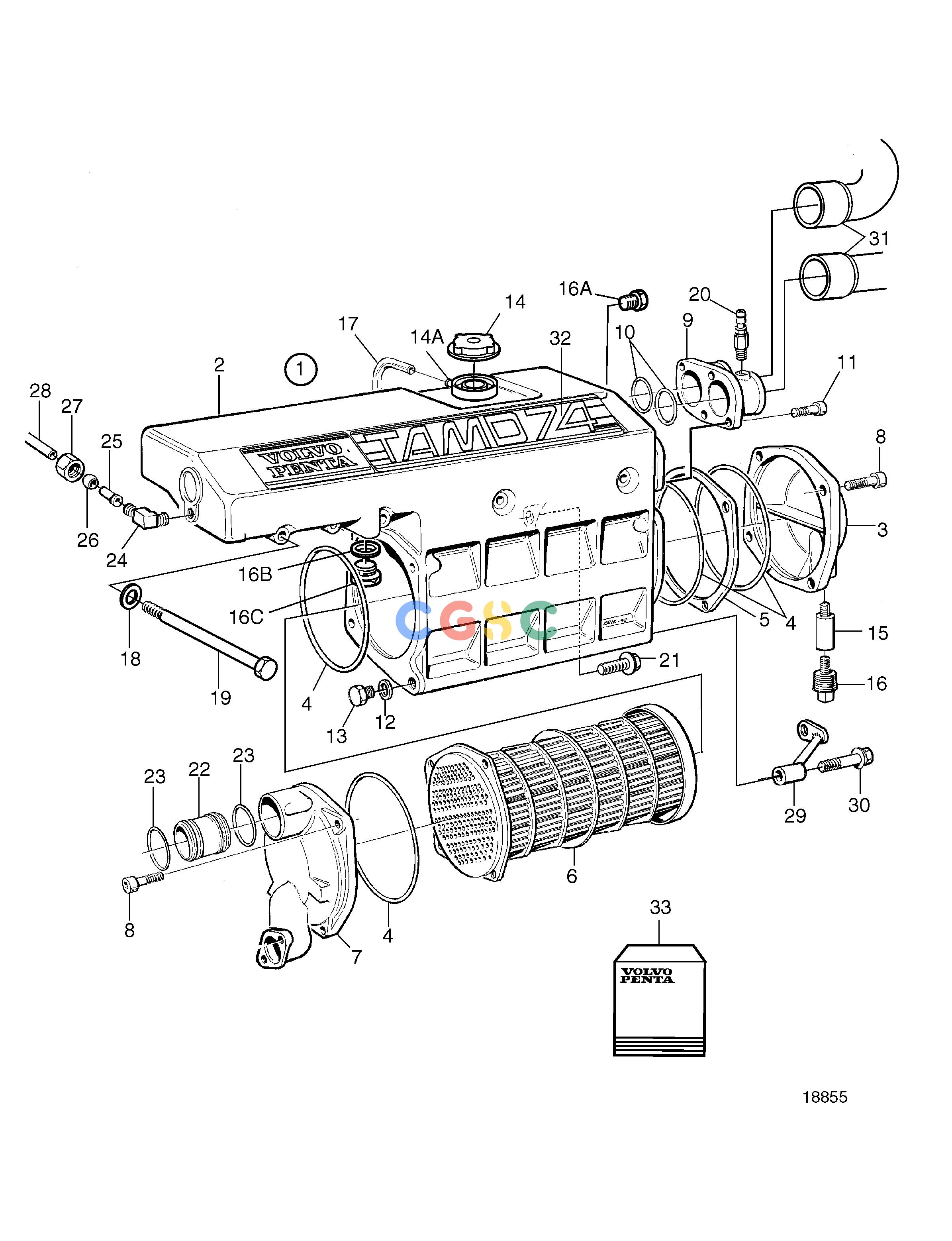

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3830505
|
[1] |
Heat exchanger
|
|
| 2. |
3829900
|
[1] |
Housing
|
|
| 3. |
3828575
|
[1] |
End plate
|
|
| 4. |
3826783
|
[4] |
O-ring
|
|
| 5. |
3826782
|
[1] |
Spacer
|
|
| 6. |
3826790
|
[1] |
Insert
|
|
| 7. |
3826788
|
[1] |
End plate
|
|
| 8. |
959224
|
[8] |
Hex. socket screw
|
|
| 9. |
866592
|
[1] |
Hose connection
|
|
| 10. |
125362
|
[2] |
O-ring
|
|
| 11. |
959222
|
[4] |
Hex. socket screw
|
|
| 12. |
907132
|
[1] |
Gasket
|
|
| 13. |
960628
|
[1] |
Plug
|
|
| 14. |
1674083
|
[1] |
Pressure cap
|
|
| 14A. |
3828863
|
[1] |
Rubber collar
|
|
| 15. |
838929
|
[1] |
Anode
|
|
| 16. |
838928
|
[1] |
Plug
|
|
| 16A. |
981749
|
[1] |
Plug
|
|
| 16B. |
947624
|
[1] |
Gasket
|
|
| 16C. |
861918
|
[1] |
Plug
|
|
| 17. |
192618
|
[1] |
Hose
|
L=800mm
|
| 18. |
191172
|
[5] |
Washer
|
|
| 19. |
980359
|
[5] |
Hexagon screw
|
L=220mm
|
| 20. |
949918
|
[2] |
Shut-off cock
|
|
| 21. |
947760
|
[1] |
Flange screw
|
|
| 22. |
866594
|
[1] |
Tube
|
|
| 23. |
866690
|
[2] |
O-ring
|
|
| 24. |
954385
|
[1] |
Elbow nipple
|
|
| 25. |
944717
|
[1] |
Support sleeve
|
|
| 26. |
954364
|
[1] |
Sleeve
|
|
| 27. |
954356
|
[1] |
Fitting nut
|
|
| 28. |
945460
|
[1] |
Tube
|
L=1110mm
|
| 29. |
3826392
|
[1] |
Stay
|
|
| 30. |
965180
|
[1] |
Flange screw
|
|
| 31. |
7740900_108
|
|
Coolant pipe
|
|
| 32. |
3830245
|
[1] |
Decal
|
TAMD74
|
