纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (05-003-00[01]) - UNDERCARRIAGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
706 次

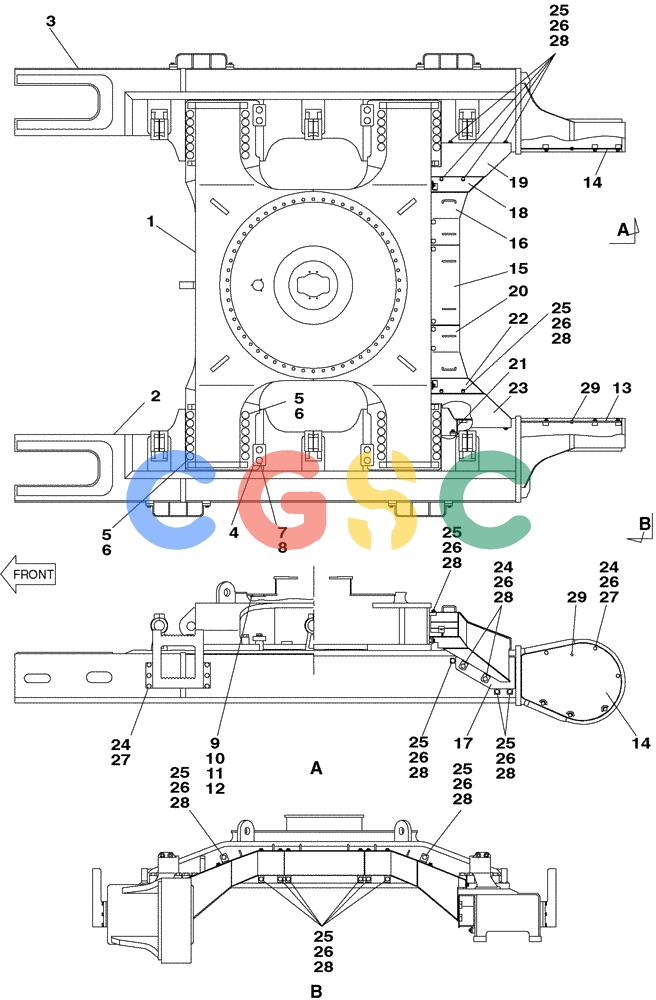

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUA0119 | [1] | CHASSIS | SUM |
| 2. | KUA0120 | [1] | CHASSIS | SUM |
| 3. | KUA0122 | [1] | CHASSIS | SUM |
| 4. | KUA0123 | [4] | PLATE | SUM |
| 5. | KUA0124 | [48] | SPACER | SUM |
| 6. | 102R036W180N | [48] | BOLT | SUMM36 x 180 |
| 7. | 102R030W190N | [8] | BOLT | SUMM30 x 190 |
| 8. | 157545A1 | [8] | WASHER | SUM |
| 9. | 150432A1 | [1] | LID | SUM |
| 10. | 150436A1 | [1] | PACKING | SUM |
| 11. | 627-8016 | [3] | BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd | CAS Superseded by part number: 16043231 |
| 12. | 183-108VR | [3] | SPRING WASHER | SUMW8 |
| 13. | KUA0127 | [1] | COVER | SUM |
| 14. | KUA0128 | [1] | COVER | SUM |
| 15. | KUA0148 | [1] | COVER | SUM |
| 16. | KUA0170 | [1] | COVER | SUM |
| 17. | KUA0171 | [1] | COVER | SUM |
| 18. | KUA0172 | [1] | COVER | SUM |
| 19. | KUA0173 | [1] | COVER | SUM |
| 20. | KUA0174 | [1] | COVER | SUM |
| 21. | KUA0175 | [1] | COVER | SUM |
| 22. | KUA0176 | [1] | COVER | SUM |
| 23. | KUA0177 | [1] | COVER | SUM |
| 24. | 627-16050 | [40] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CAS Superseded by part number: 412398 |
| 25. | 627-16040 | [28] | BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 374835 |
| 26. | 892-11016 | [44] | LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk | CAS Superseded by part number: 87016618 |
| 27. | 150814A1 | [36] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | SUM |
| 28. | KHA0012 | [32] | WASHER | SUM |
| 29. | 627-12020 | [2] | BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43258 |
