久保田零件查询U96001 REAR DEFOGGER KIT 1 (W/G No.B7328) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次

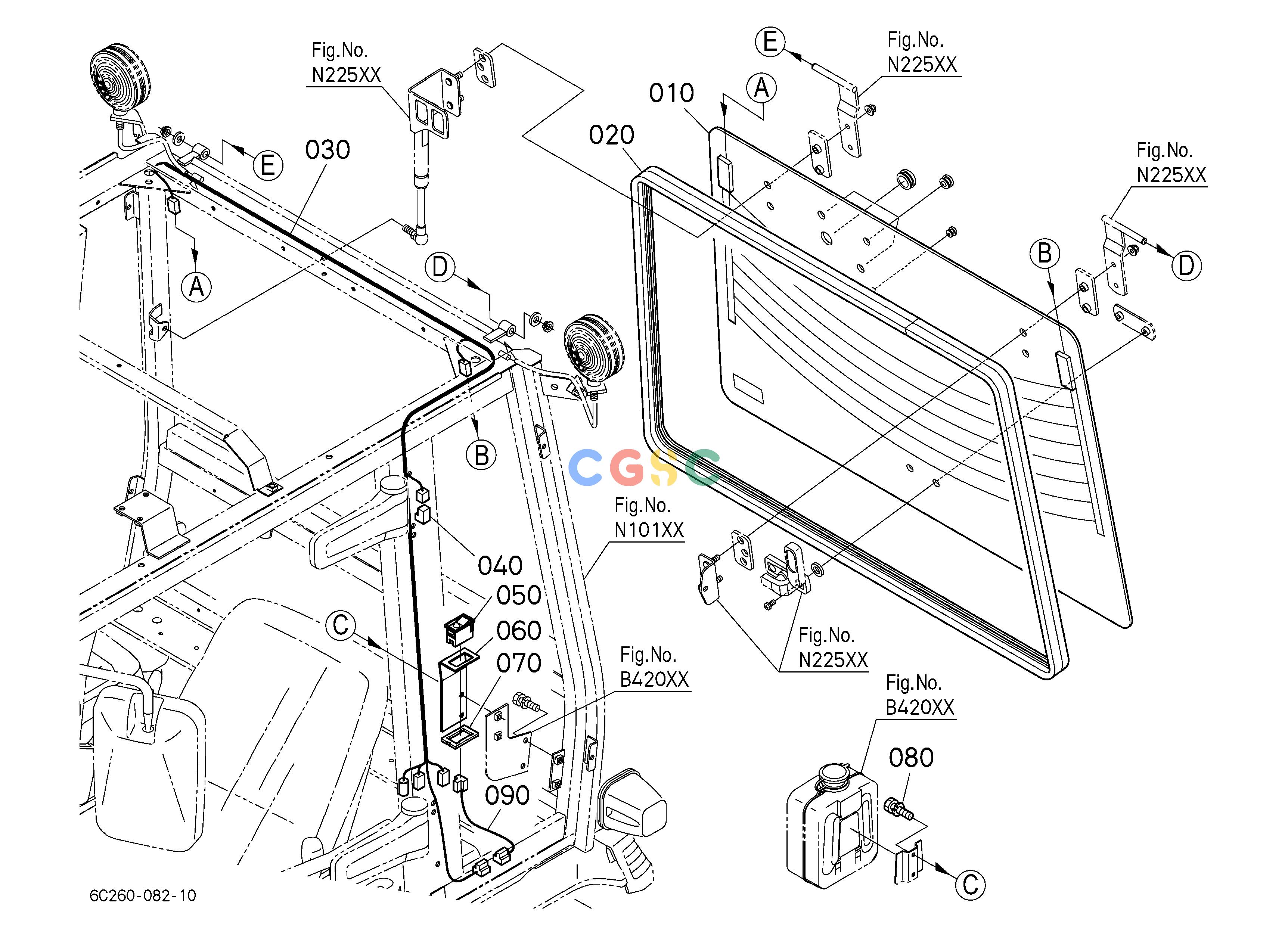

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C23172415
|
[1] |
GLASS,REAR HATCH
|
17.6000(lbs); 8.000
|
| 020. |
6C23072425
|
[1] |
STRIP,REAR WEATHER
|
1.7380(lbs); 0.790
|
| 030. |
6C23174020
|
[1] |
WIRE HARNESS
|
0.4136(lbs); 0.188
|
| 040. |
T106033720
|
[1] |
RELAY
|
0.0440(lbs); 0.020
|
| 050. |
3F77075100
|
[1] |
SWITCH,DEFOGGER
|
0.0484(lbs); 0.022
|
| 060. |
6C23174620
|
[1] |
STAY,DEFOGGER SWITCH
|
0.3410(lbs); 0.155
|
| 070. |
3F76075220
|
[1] |
SPACER
|
0.0066(lbs); 0.003
|
| 080. |
0102350616
|
[2] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 090. |
6C26074020
|
[1] |
WIRE HARNESS
|
0.0352(lbs); 0.016
|
