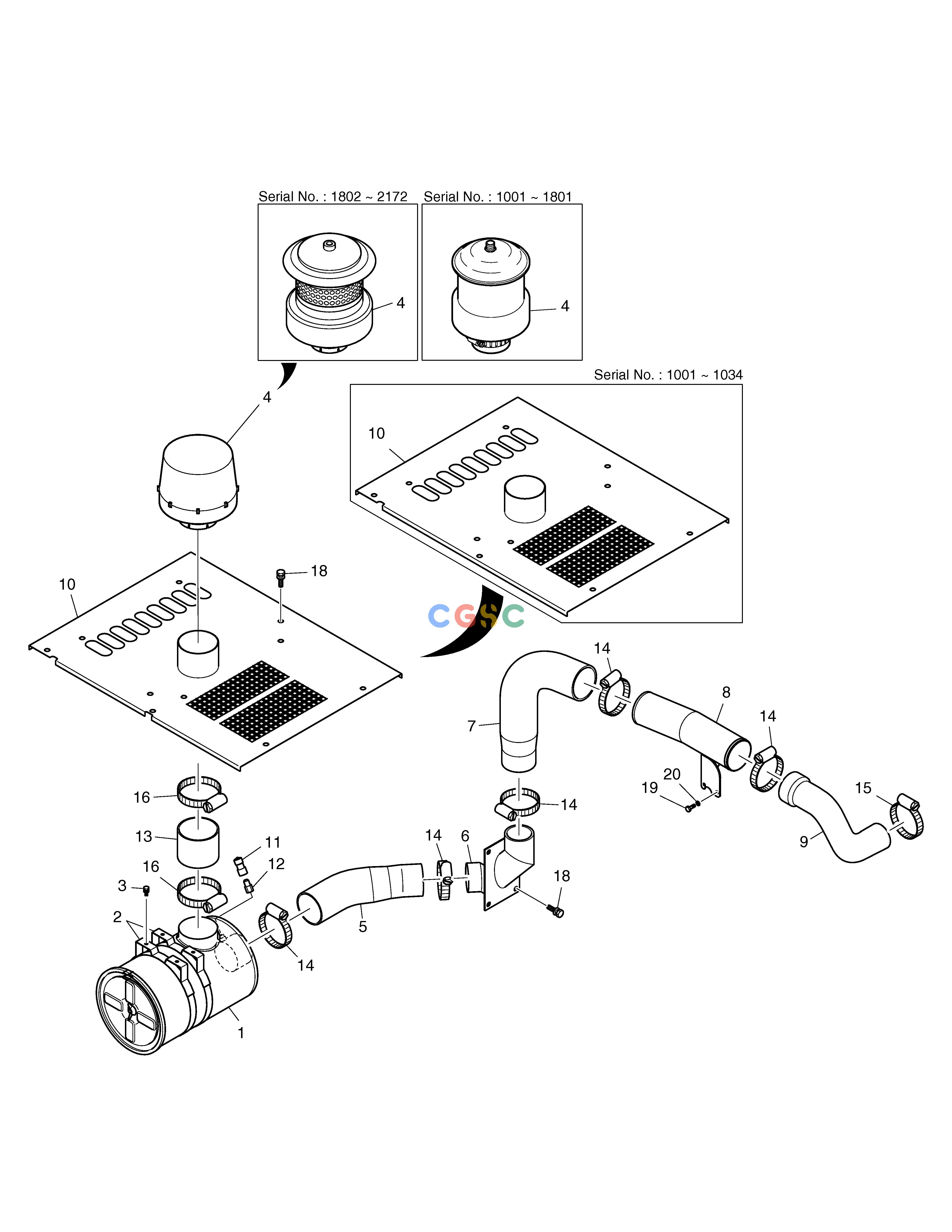

斗山零件查询AIR CLEANER ASS'Y SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
204-00038B
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
2204-2012A
|
[1] |
AIR CLEANER
|
|
| 10. |
621-01756A
|
[1] |
COVER
|
621-01756B
|
| 10. |
621-01756B
|
[1] |
COVER
|
621-01756E
|
| 10. |
621-01756E
|
[1] |
COVER
|
621-01756G
|
| 10. |
621-01756G
|
[1] |
COVER
|
|
| 10. |
621-01756H
|
[1] |
COVER
|
|
| 11. |
170-00004
|
[1] |
INDICATOR
|
|
| 12. |
2181-2690
|
[1] |
ADAPTER;FILTER
|
|
| 13. |
2185-1792A
|
[1] |
HOSE;AIR
|
|
| 14. |
S8510143
|
[5] |
CLAMP
|
|
| 15. |
S8510118
|
[1] |
CLAMP
|
|
| 16. |
S8510168
|
[2] |
CLAMP;HOSE
|
|
| 18. |
2120-2196D7
|
[14] |
BOLT;SET M12X1.75X30
|
|
| 19. |
S0511853
|
[2] |
BOLT
|
|
| 2. |
2124-1552A
|
[2] |
BAND;AIR CLEANER
|
|
| 20. |
S5102603
|
[2] |
. WASHER
|
|
| 3. |
2120-2196D2
|
[4] |
BOLT;SET M10X1.5X25
|
|
| 4. |
2204-9032A
|
[1] |
PRE-CLEANER
|
2204-9032
|
| 4. |
2204-9032
|
[1] |
PRE-CLEANER
|
K1017883
|
| 4. |
K1017883
|
[1] |
PRE-CLEANER
|
|
| 4. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 5. |
185-00267
|
[1] |
HOSE;AIR
|
|
| 6. |
193-00642A
|
[1] |
PIPE;AIR
|
|
| 7. |
185-00268
|
[1] |
HOSE;AIR
|
|
| 8. |
193-00651A
|
[1] |
PIPE;AIR
|
|
| 9. |
185-00249
|
[1] |
HOSE;AIR
|
|
