卡特零件查询（730） 200-8215: VALVE GP-SOLENOID
广数供应链运营团队, 15 02月, 2025，浏览：
283 次

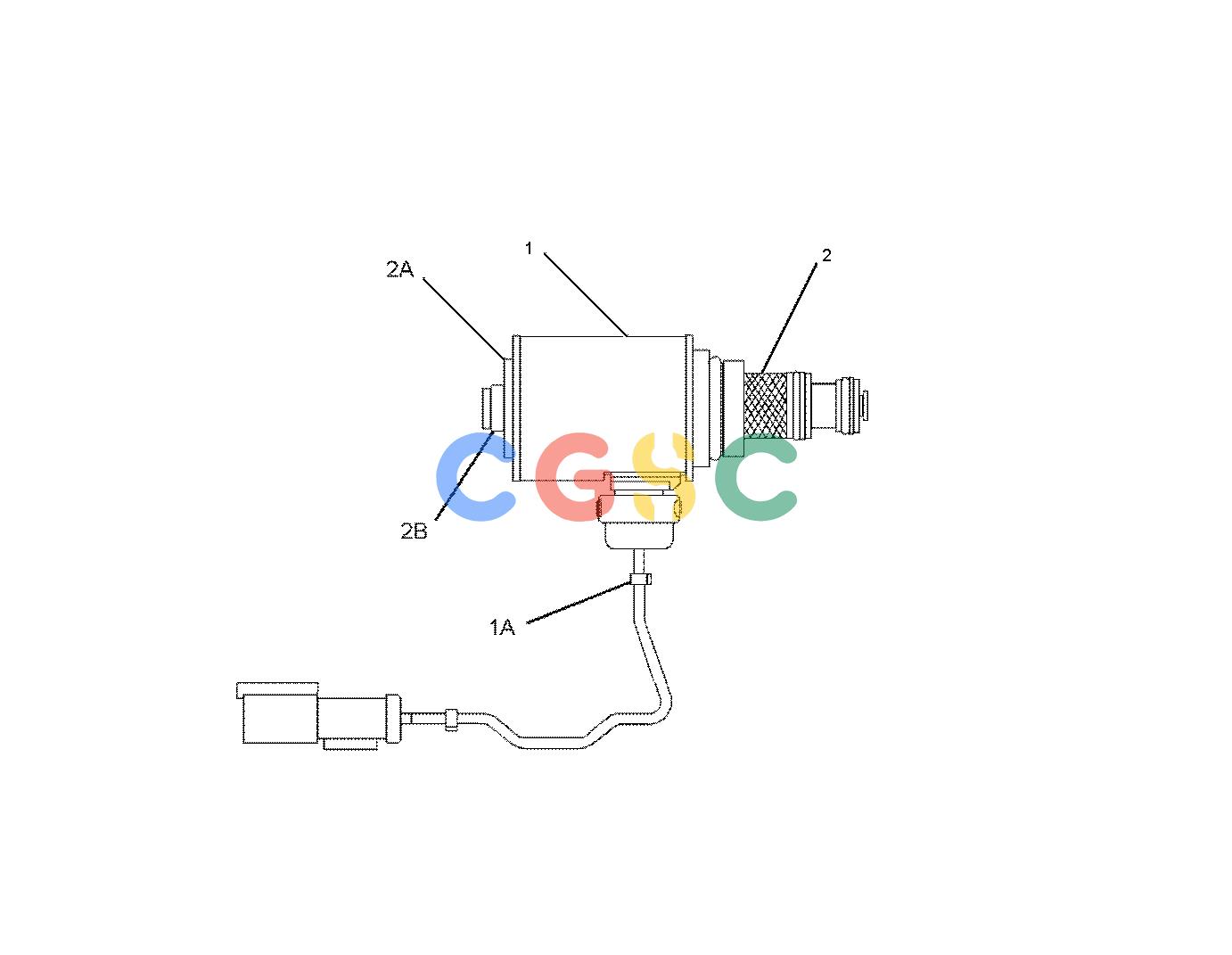

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-6230 | [1] | COIL AS | |
| 1A. | 1S-9593 | [2] | STRAP-CABLE | |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 2. | 235-8396J | [1] | CARTRIDGE AS | |
| 2A. | 8C-9987 | [1] | WASHER(8.3X28X2.5-MM THK) | |
| 2B. | 111-0343 | [1] | LOCKNUT(5/16-18-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 100-4083J | [1] | KIT-SEAL(TRANSMISSION CLUTCH LATCHING) | |
| | | | (INCLUDES SEALS & RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
