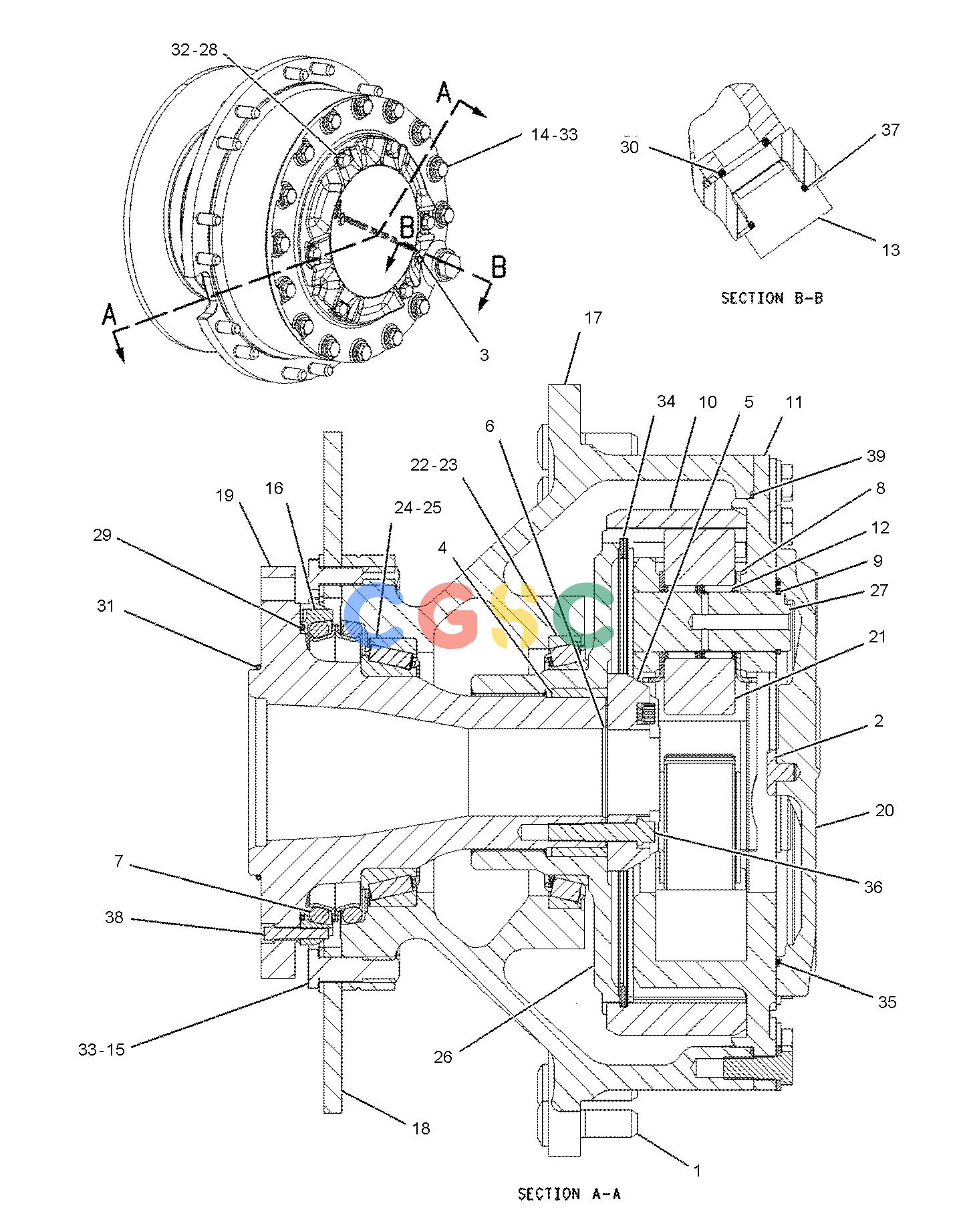

卡特零件查询（730） 147-5225: WHEEL & FINAL DRIVE GP
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 308-9259 | [16] | STUD-WHEEL | |
| 2. | 2D-0604 | [1] | BUTTON | |
| 3. | 2L-3650 | [1] | PIN-SPRING | |
| 4. | 2V-5715 | [1] | BUSHING-TERMINAL | |
| 5. | 2V-7092 | [1] | PLATE-RETAINER | |
| 6. | 2V-7390B | [1] | SHIM PACK(INCLUDES 15-SHIMS) | |
| 7. | 3T-6541 | [1] | SEAL GP-DUO-CONE | |
| | 3N-0759 | [2] | RING-SEALING | |
| 8. | 4E-0072 | [6] | WASHER-THRUST | |
| 9. | 4K-6801 | [3] | RING-LOCK | |
| 10. | 4V-8538 | [1] | GEAR-RING(64-TEETH) | |
| 11. | 4V-8541 | [1] | CARRIER AS | |
| 12. | 5M-0578 | [6] | BEARING AS-ROLLER | |
| 13. | 5P-4484 | [1] | PLUG-MAGNETIC(FINAL DRIVE OIL DRAIN) | |
| 14. | 7B-1115 | [15] | BOLT(5/8-11X1.625-IN) | |
| 15. | 8S-9092 | [26] | BOLT(5/8-11X2.25-IN) | |
| 16. | 216-0227 | [1] | RETAINER | |
| 17. | 138-2317 | [1] | WHEEL | |
| 18. | 138-2318 | [1] | DISC | |
| 19. | 138-4805 | [1] | SPINDLE | |
| 20. | 138-4811 | [1] | COVER AS | |
| 21. | 147-1740 | [3] | GEAR(23-TEETH) | |
| 22. | 161-8150 | [1] | CONE-BEARING | |
| 23. | 161-8151 | [1] | CUP-BEARING | |
| 24. | 161-8152 | [1] | CONE-BEARING | |
| 25. | 161-8153 | [1] | CUP-BEARING | |
| 26. | 175-7528 | [1] | HUB | |
| 27. | 190-3594 | [3] | SHAFT-PLANETARY | |
| 28. | 0S-1585 | [6] | BOLT(1/2-13X1.5-IN) | |
| 29. | 1J-2176 | [1] | SEAL-O-RING | |
| 30. | 5H-2767 | [1] | SEAL-O-RING | |
| 31. | 5H-3252 | [1] | SEAL-O-RING | |
| 32. | 5P-8245 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 5P-8247 | [41] | WASHER-HARD(17X32X3.5-MM THK) | |
| 34. | 5P-9928 | [1] | RING-RETAINING | |
| 35. | 6S-3018 | [1] | SEAL-RING | |
| 36. | 7K-6058 | [8] | BOLT-12 POINT HEAD(1/2-13X2.5-IN) | |
| 37. | 7M-8485 | [1] | SEAL-O-RING | |
| 38. | 8M-8162 | [4] | BOLT-12 POINT HEAD(5/16-18X1.5-IN) | |
| 39. | 9X-3975 | [1] | SEAL-RING | |
| | B | | USE AS REQUIRED |
