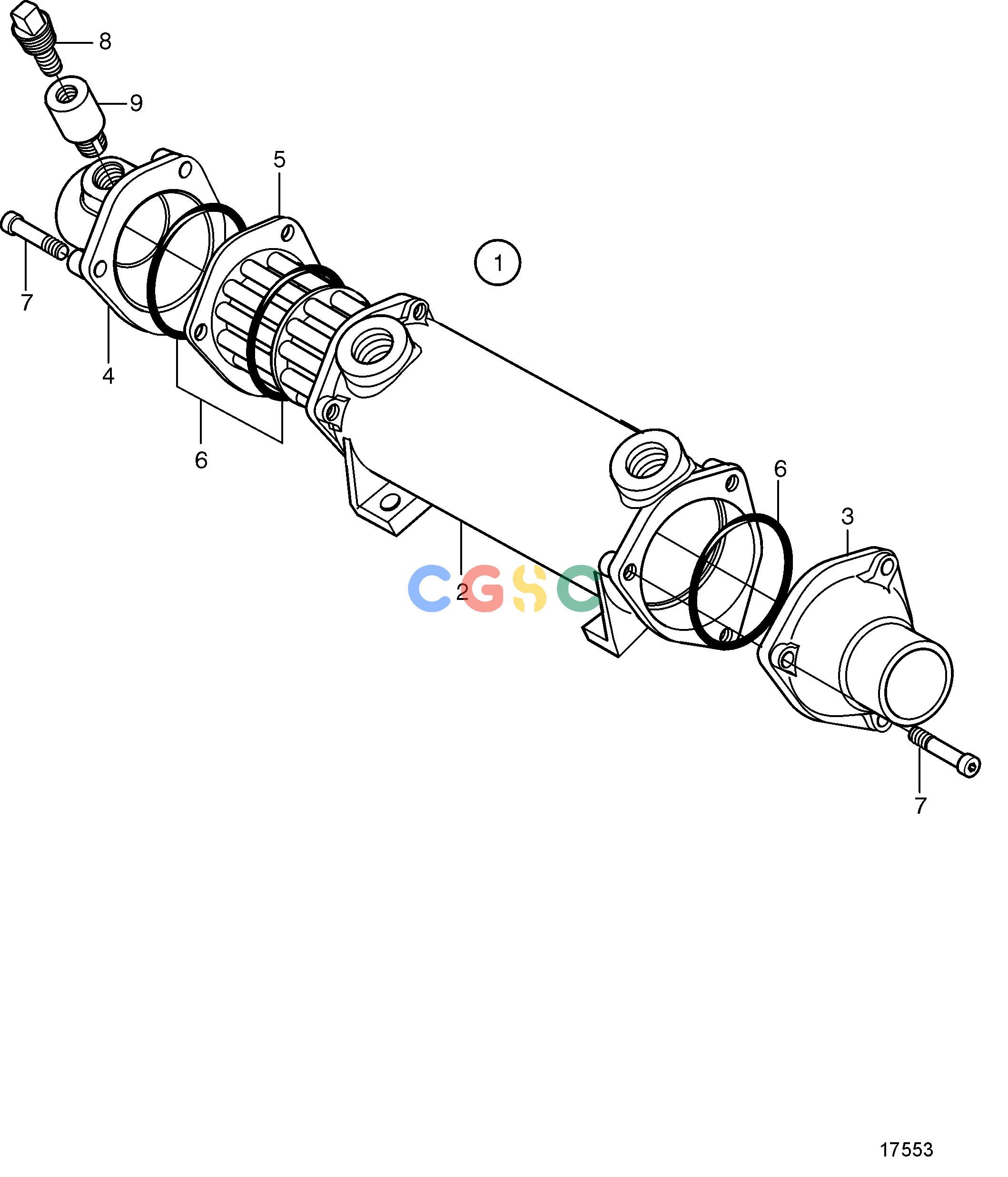

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemOil Cooler for Reverse Gear, Components: 3830503EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3830503
|
[1] |
Oil cooler
|
Classifiable
|
| 2. |
3827988
|
[1] |
Housing
|
|
| 3. |
3828407
|
[1] |
End plate
|
|
| 4. |
3828408
|
[1] |
End plate
|
|
| 5. |
3828406
|
[1] |
Insert
|
|
| 6. |
3581070
|
[3] |
O-ring
|
|
| 7. |
959224
|
[6] |
Hex. socket screw
|
|
| 8. |
838928
|
[1] |
Plug
|
|
| 9. |
838929
|
[1] |
Anode
|
|
