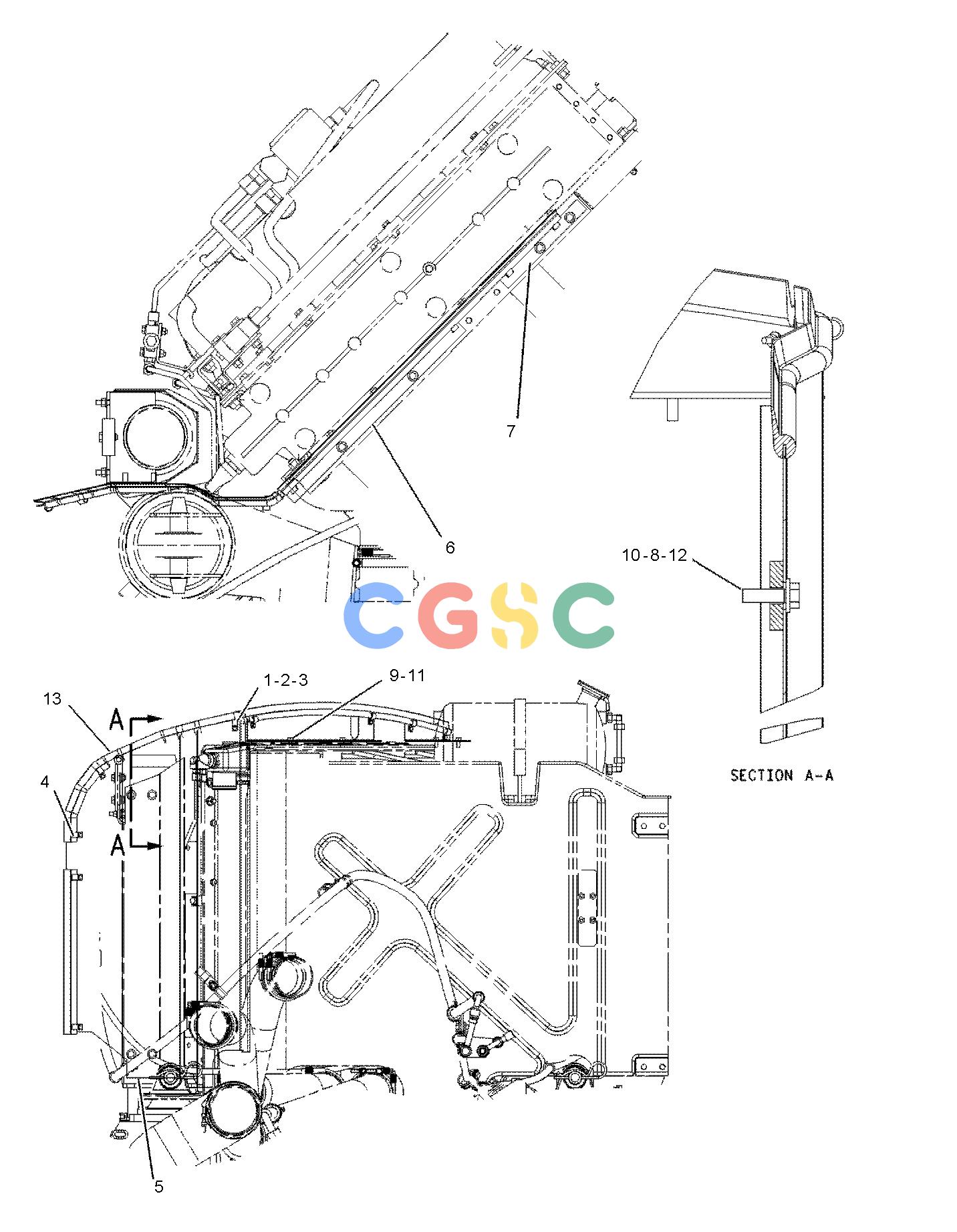

卡特零件查询（730） 194-4333: BAFFLE GP-RADIATOR
广数供应链运营团队, 15 02月, 2025，浏览：
905 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-2452 | [9] | LOCKNUT | |
| 2. | 2U-2453 | [9] | WASHER(5.6X12.6X1.22-MM THK) | |
| 3. | 2U-2589 | [9] | BOLT | |
| 4. | 2U-3416 | [9] | CLAMP-TUBE | |
| 5. | 186-5117 | [1] | PLATE | |
| 6. | 186-5118 | [1] | PLATE | |
| 7. | 193-0547 | [1] | PLATE | |
| 8. | 211-7524 | [4] | WASHER(11X50X10-MM THK) | |
| 9. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 10. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 12. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 13. | 5P-5905D | | SEAL(2.84-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
