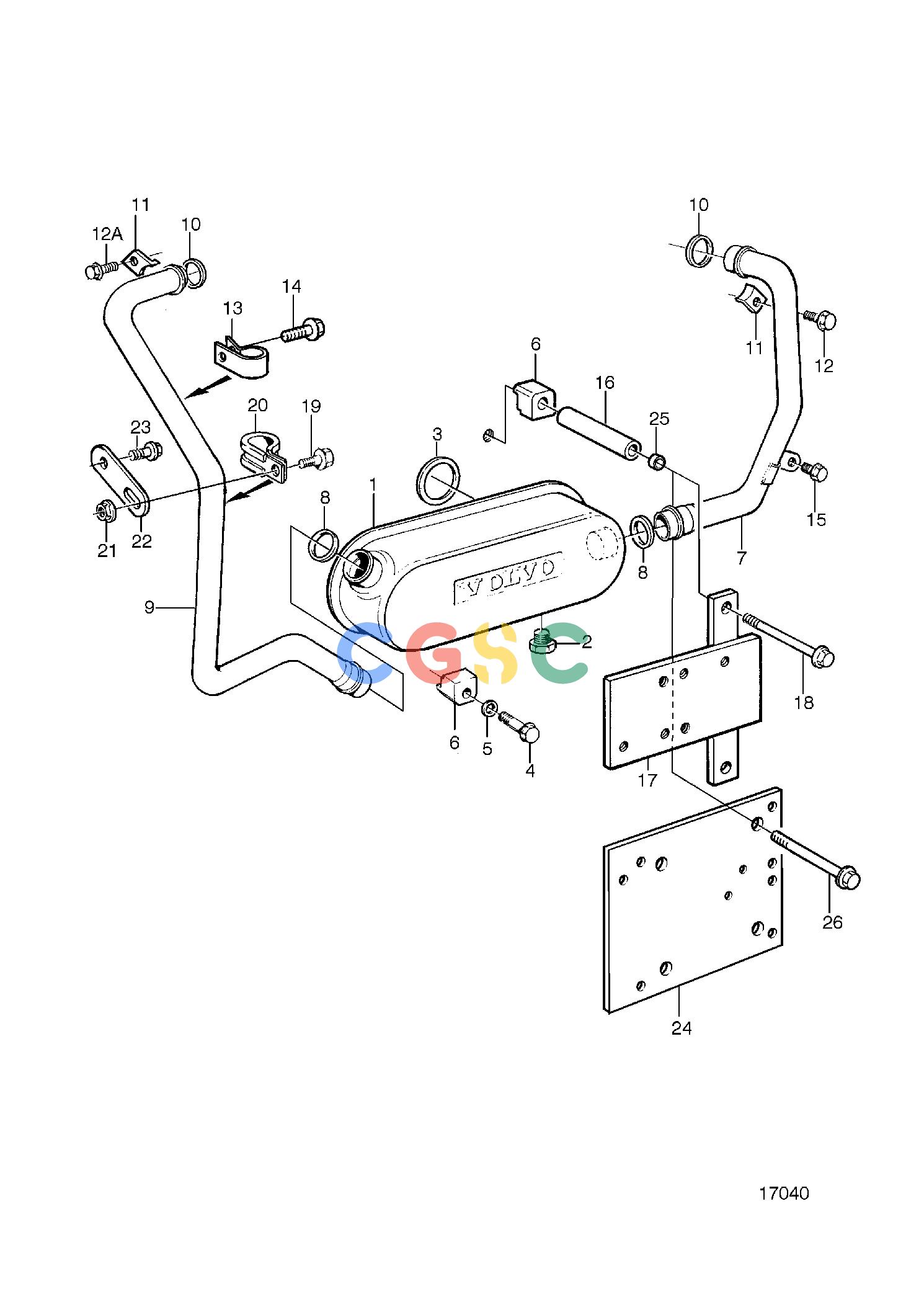

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemOil Cooler, EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866539
|
[1] |
Oil cooler, classifiable
|
|
| 2. |
981749
|
[1] |
Plug
|
|
| 3. |
471467
|
[2] |
Sealing ring
|
|
| 4. |
965186
|
[2] |
Flange screw
|
M10x50mm
|
| 5. |
941908
|
[4] |
Spring washer
|
|
| 6. |
471804
|
[4] |
Retainer
|
|
| 7. |
3826984
|
[1] |
Water pipe
|
Cylinder block-oil cooler., D=35mm
|
| 8. |
1543579
|
[2] |
Sealing ring
|
|
| 9. |
864589
|
[1] |
Water pipe
|
Thermostat housing-oil cooler., D=35mm
|
| 10. |
471637
|
[2] |
Sealing ring
|
|
| 11. |
421654
|
[2] |
Clamp
|
|
| 12. |
946440
|
[1] |
Flange screw
|
L=16mm
|
| 12A. |
949846
|
[1] |
Flange screw
|
Tapping screw., L=20mm
|
| 13. |
968508
|
[1] |
Clamp
|
|
| 14. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 15. |
946441
|
[1] |
Flange screw
|
M8x20mm
|
| 16. |
822779
|
[4] |
Spacer sleeve
|
|
| 17. |
3826159
|
[1] |
Bracket, shut-off valve
|
|
| 18. |
969313
|
[4] |
Flange screw
|
L=110mm
|
| 19. |
946544
|
[1] |
Flange screw
|
|
| 20. |
952635
|
[1] |
Clamp
|
Alt
|
| 21. |
945407
|
[1] |
Flange nut
|
|
| 22. |
965538
|
[1] |
Bracket
|
|
| 23. |
946440
|
[1] |
Flange screw
|
|
| 24. |
3826926
|
[1] |
Bracket, electrical distribut
|
|
| 25. |
823575
|
[4] |
Spacer sleeve
|
|
| 26. |
968237
|
[4] |
Flange screw
|
|
