神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-012) - ROLLER ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
150 次

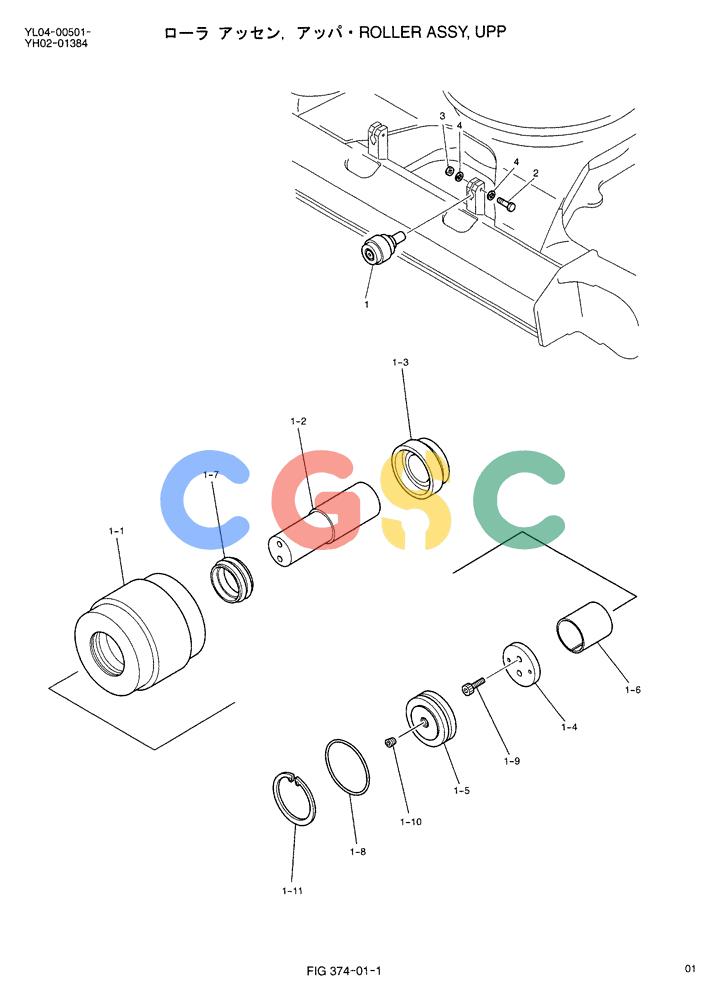

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN64D00014F1 | [1] | ROLLER ASSY. | KOBUPP |
| 1. | YN64D01022F1 | [4] | ROLLER | KOB |
| 1-1. | YN64D01023P1 | [1] | ROLLER | KOB |
| 1-2. | YN64D01024P1 | [1] | SHAFT | KOB |
| 1-3. | YN64D01025P1 | [1] | COLLAR | KOB |
| 1-4. | YN64D01037P1 | [1] | PLATE | KOB Superseded by part number: YN64D01038P1 |
| 1-5. | YN64D01026P1 | [1] | COVER | KOB |
| 1-6. | YN64D01027P1 | [1] | BUSHING | KOB |
| 1-7. | ZD58F05827 | [1] | SEAL | KOB |
| 1-8. | ZD11P06500 | [1] | O-RING | KOBID 64.6 ± 0.57 x OD 75mm |
| 1-9. | YN64D01016P1 | [2] | BOLT | KOBM12x1.75x28mm |
| 1-10. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 1-11. | ZR26X07500 | [1] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
| 2. | ZS13C20120 | [4] | SCREW | KOBM20x2.50x120mm |
| 3. | ZN13C20016 | [4] | NUT | KOBM20x2.50mm |
| 4. | ZW13H20000 | [8] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
