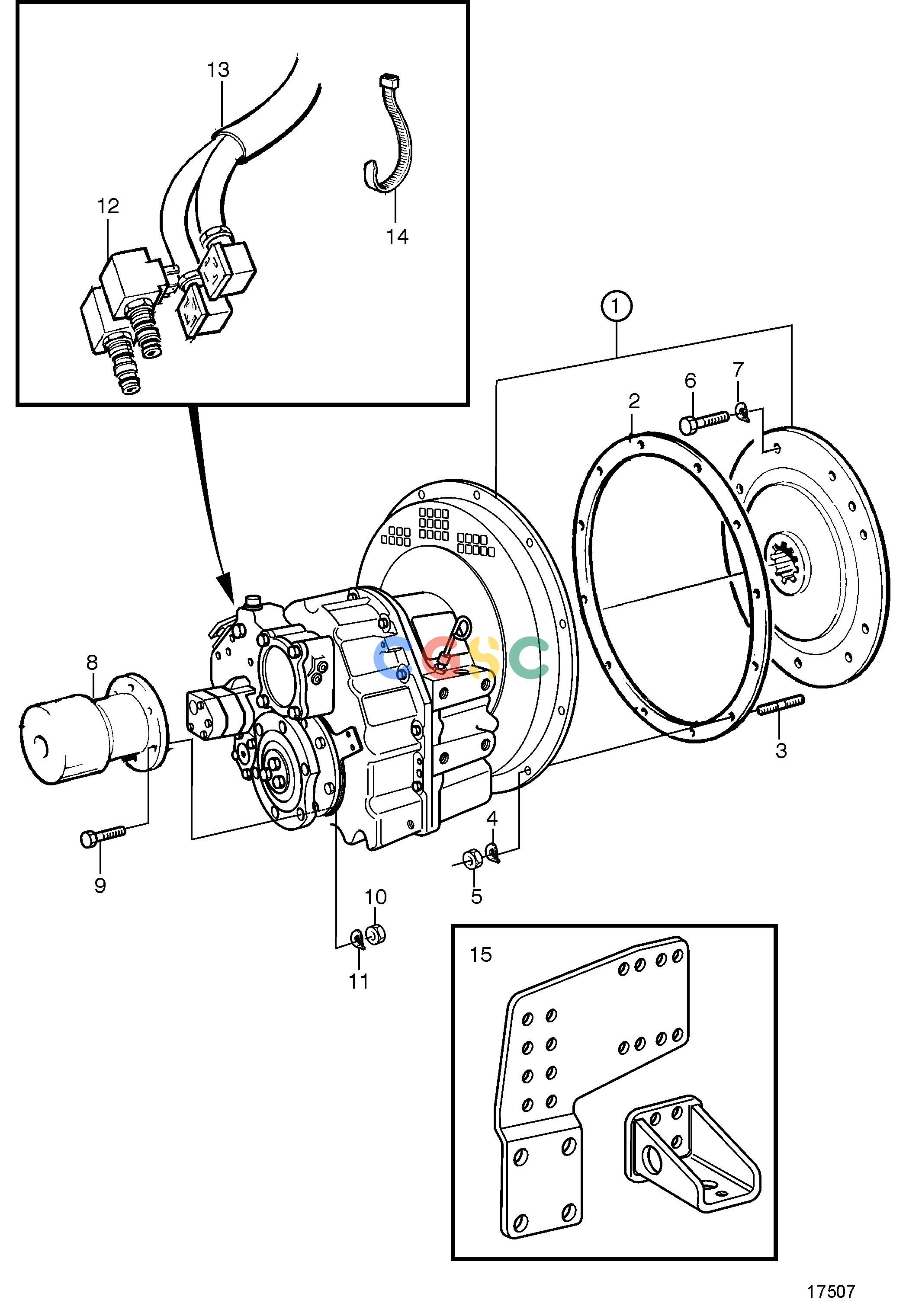

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ATransmissionsReverse Gear MG 5085A-E, MG 5085SC-E: MG 5085A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
862623
|
[1] |
Gasket
|
|
| 3. |
953486
|
[11] |
Stud
|
|
| 4. |
942336
|
[11] |
Spring washer
|
|
| 5. |
955827
|
[11] |
Hexagon nut
|
|
| 6. |
956582
|
[8] |
Hex. socket screw
|
|
| 7. |
942336
|
[8] |
Spring washer
|
|
| 8. |
3828556
|
[1] |
Clutch flange
|
|
| 9. |
955739
|
[6] |
Hexagon screw
|
L=64mm
|
| 10. |
950378
|
[6] |
Lock nut
|
|
| 11. |
941912
|
[6] |
Spring washer
|
|
| 12. |
3825653
|
[1] |
Actuator solenoid
|
12V
|
| 12. |
3825654
|
[1] |
Control solenoid kit
|
24V
|
| 13. |
873827
|
[1] |
Cable kit
|
(873659)
|
| 14. |
948211
|
[2] |
Cable tie
|
|
| 15. |
7740900_021
|
|
Engine suspension
|
|
