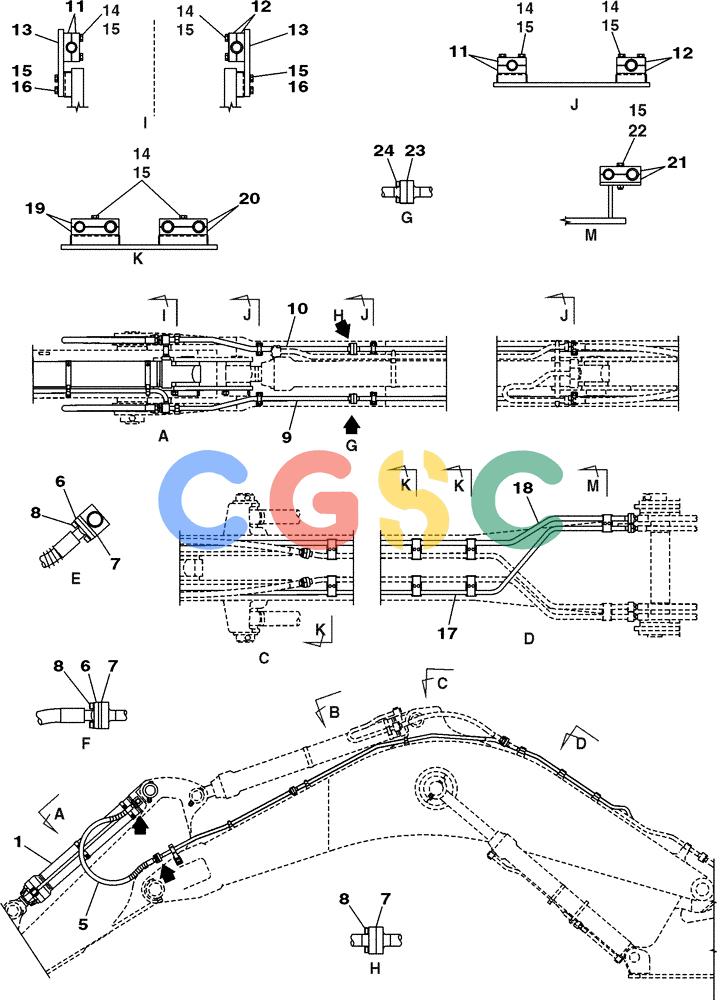

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-045-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER 2,98M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
191 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV0114 | [1] | BUCKET CYLINDER | SUM |
| 5. | KUV0044 | [2] | HYDRAULIC HOSE,38.10 mm ID x 2400.00 mm | SUM |
| 6. | KTJ0169 | [8] | FLANGE | SUM |
| 7. | 168211A1 | [5] | O-RING | SUM |
| 8. | 862-16050 | [20] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50; 12.9 Superseded by part number: 9817243 |
| 9. | KUV0117 | [1] | HYD. TUBE,34.7 mm ID x 42.7 mm OD | SUM Superseded by part number: KUV10510 |
| 10. | KUV0118 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM Superseded by part number: KUV10520 |
| 11. | KUV0054 | [8] | CLAMP BRACKET | SUM |
| 12. | KUV0055 | [8] | CLAMP BRACKET | SUM |
| 13. | KUV0070 | [2] | PLATE | SUM |
| 14. | 827-16090 | [28] | BOLT,Hex, M16 x 2 x 90mm, Cl 10.9 | CAS Superseded by part number: 86521733 |
| 15. | 150814A1 | [34] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | SUM |
| 16. | 627-16050 | [4] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CAS Superseded by part number: 412398 |
| 17. | KUV0173 | [1] | HYD. TUBE,34.7 mm ID x 42.7 mm OD | SUM |
| 18. | KUV0174 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 19. | KUV0057 | [6] | CLAMP BRACKET | SUM |
| 20. | KUV0058 | [4] | CLAMP BRACKET | SUM |
| 21. | KUV0176 | [2] | CLAMP BRACKET | SUM |
| 22. | 827-16110 | [2] | BOLT,Hex, M16 x 2 x 110mm, Cl 10.9 | CAS Superseded by part number: 84036080 |
| 23. | 164450A1 | [1] | O-RING | SUM |
| 24. | 862-14050 | [4] | HEX SOC SCREW,M14 x 50mm, Cl 12.9 | CASM14 x 50; 12.9 |
| 25. | KHV0287 | [1] | SHIM | SUM |
