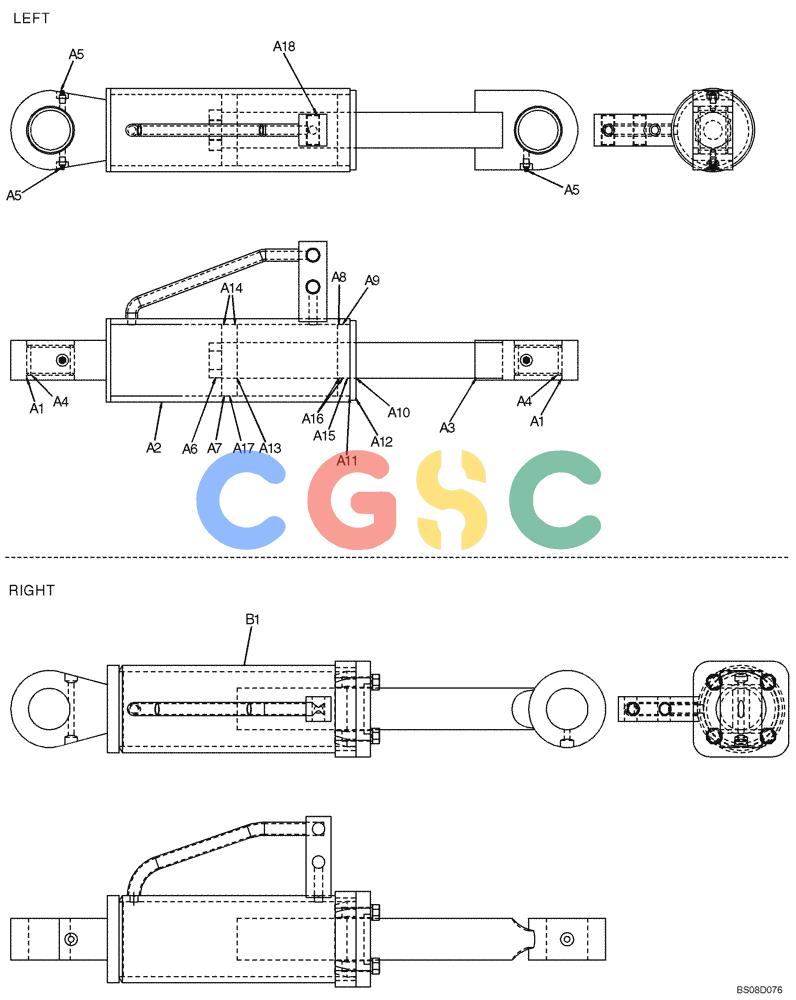

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-025[00]) - CYLINDER ASSEMBLY, DOZER LIFT (YY01VU0001F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY01VU0001F1 | [1] | LIFT CYLINDER,Double Acting, 57.15mm Rod, 209.55mm Stroke | KOBAssembly, (Left Hand) |
| . . | YY01VU0002F1 | [1] | CYLINDER | SMLift Cylinder Assembly, (Right Hand) |
| 1. | YY01VU0001S001 | [4] | RING | KOBWiper |
| 2. | YY01VU0001S002 | [1] | TUBE | KOB(Left Hand) |
| 3. | YY01VU0001S005 | [1] | ROD | KOB |
| 4. | YY01VU0001S008 | [2] | BUSHING | KOB |
| 5. | YY01VU0001S011 | [3] | FITTING | KOBGrease Superseded by part number: YY01VU0005S011 |
| 6. | YY01VU0001S013 | [1] | LOCK NUT | KOB |
| 7. | YY01VU0001S012 | [1] | PISTON | KOB |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring, (Part of kit YY01VU0001F1KIT) |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONRing, Back-up (Part of kit YY01VU0001F1KIT) |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONWiper, (Part of kit YY01VU0001F1KIT) |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring, (Part of kit YY01VU0001F1KIT) |
| 12. | YY01VU0001S004 | [1] | HEAD | KOB |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring, (Part of kit YY01VU0001F1KIT) |
| 14. | NSS | [2] | NOT SOLD SEPARAT | CONRing, Wear (Part of kit YY01VU0001F1KIT) |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONSeal, (Part of kit YY01VU0001F1KIT) |
| 16. | NSS | [2] | NOT SOLD SEPARAT | CONRing, Wear (Part of kit YY01VU0001F1KIT) |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSeal, (Part of kit YY01VU0001F1KIT) |
| 18. | ZE72X08000 | [4] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| . . | ZD12P01800 | [1] | O-RING | KOB(Part of ZE72X08000), ID 17.8mm x OD 20.2mm, Not Shown |
| K. | YY01VU0001F1KIT | [1] | SEAL KIT | KOB(Contain items marked with NSS), Not Shown |
