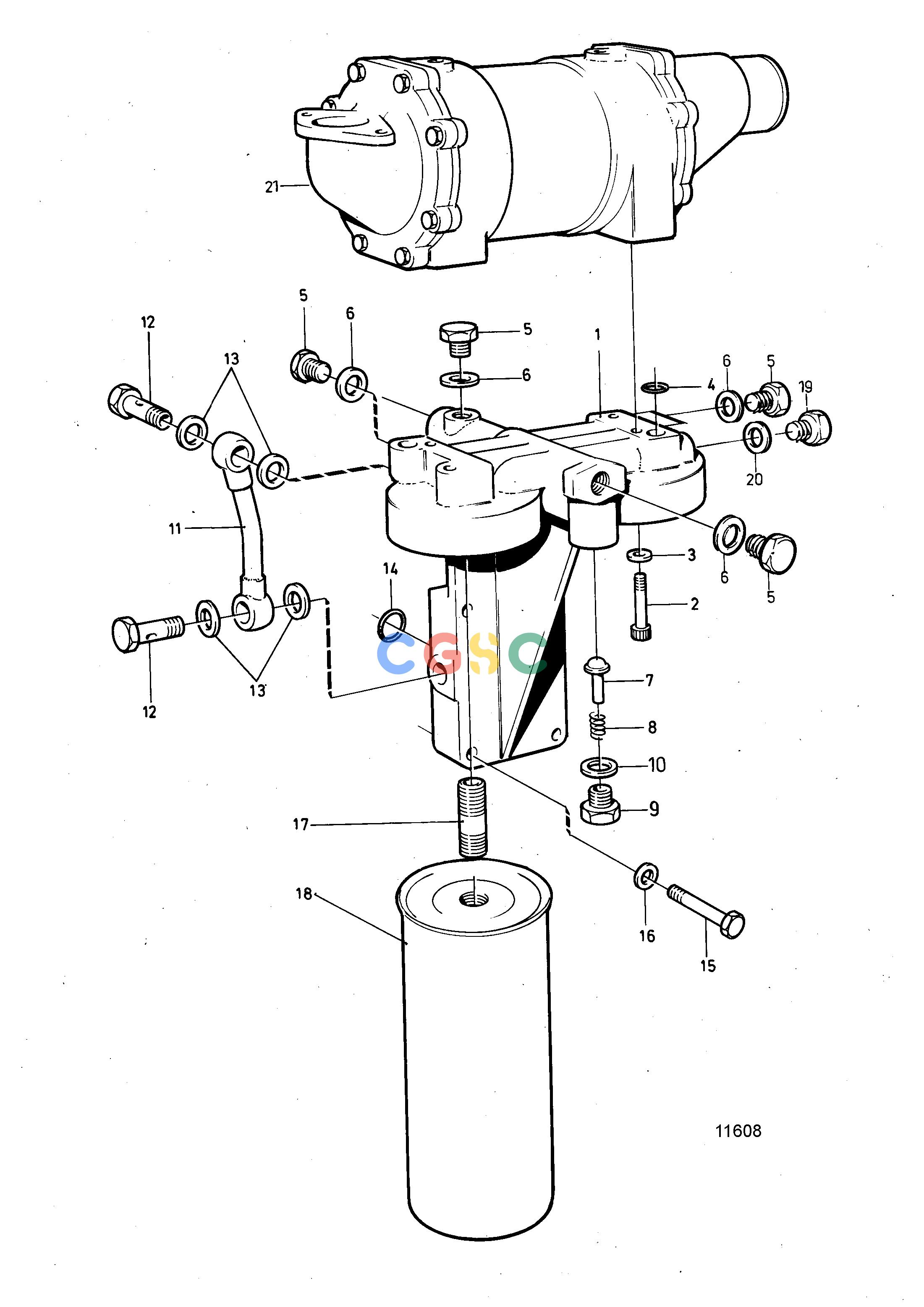

沃尔沃零件查询TMD102A; TAMD102A; TAMD102DLubricating SystemOil Filter HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843528
|
[1] |
Bracket
|
|
| 2. |
956572
|
[4] |
Hex. socket screw
|
|
| 3. |
11992
|
[4] |
Gasket
|
|
| 4. |
949656
|
[2] |
O-ring
|
|
| 5. |
914391
|
[6] |
Plug
|
|
| 6. |
947623
|
[6] |
Gasket
|
|
| 7. |
471085
|
[1] |
Valve cone
|
|
| 8. |
466653
|
[1] |
Compression spring
|
|
| 9. |
466624
|
[1] |
Plug
|
|
| 10. |
18677
|
[1] |
Gasket
|
|
| 11. |
842831
|
[1] |
Tube
|
|
| 12. |
191157
|
[2] |
Hollow screw
|
|
| 13. |
947627
|
[4] |
Gasket
|
|
| 14. |
949657
|
[2] |
O-ring
|
|
| 15. |
955537
|
[4] |
Hexagon screw
|
|
| 16. |
942336
|
[4] |
Spring washer
|
|
| 17. |
466623
|
[2] |
Nipple
|
|
| 18. |
466634
|
[2] |
Oil filter
|
|
| 19. |
960632
|
[2] |
Plug
|
|
| 20. |
947624
|
[2] |
Gasket
|
|
| 21. |
7746400_025
|
|
Oil cooler, engine
|
|
