卡特零件查询（730） 130-0863: PISTON & ROD GP
广数供应链运营团队, 15 02月, 2025，浏览：
707 次

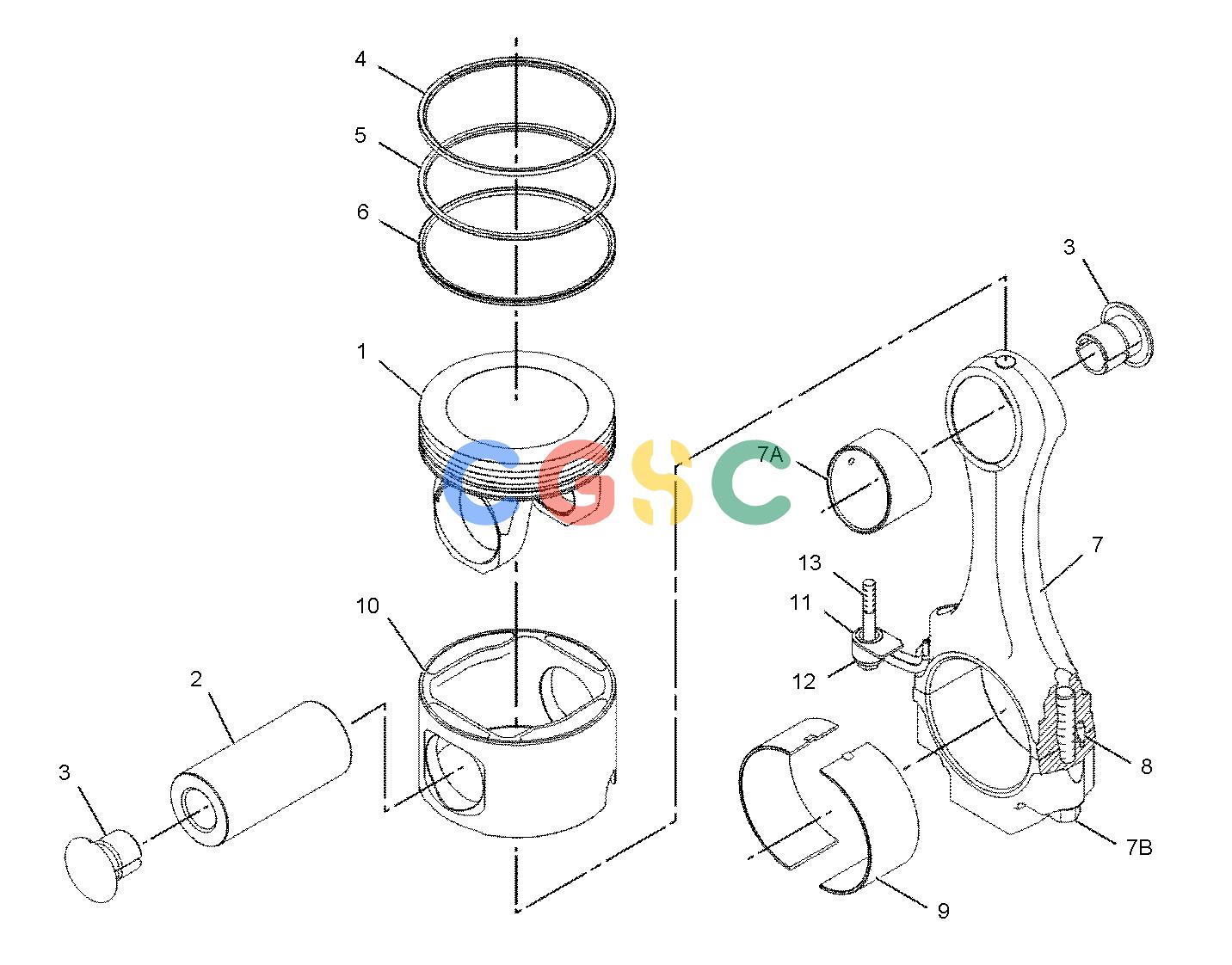

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 144-2948 | [1] | CROWN AS-PISTON | |
| 2. | 197-9251 | [1] | PIN AS | |
| | 168-7296 | [1] | PIN-PISTON | |
| 3. | 113-8999 | [2] | PLUG-PIN | |
| 4. | 197-9341 | [1] | RING-PISTON(TOP) | |
| 5. | 216-8570 | [1] | RING-INTERMEDIATE | |
| 6. | 238-2704 | [1] | RING-PISTON(OIL CONTROL) | |
| 7. | 113-9016 | [1] | ROD AS | |
| 7A. | 115-2972 | [1] | BEARING-CONNECTING ROD | |
| 7B. | 115-2973M | [2] | BOLT-CONNECTING ROD | |
| 8. | 219-4458 | [2] | PIN-DOWEL | |
| 9. | 292-0484 | [1] | BEARING-CONNECTING ROD(STANDARD) | |
| | 128-0395AB | | BEARING-CONNECTING ROD(0.51-MM US) | |
| | 128-0396AB | | BEARING-CONNECTING ROD(0.76-MM US) | |
| 10. | 238-2712 | [1] | SKIRT-PISTON | |
| 11. | 274-1587 | [1] | TUBE AS-OIL JET | |
| 12. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 13. | 8T-0100M | [1] | BOLT(M8X1.25X60-MM) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
