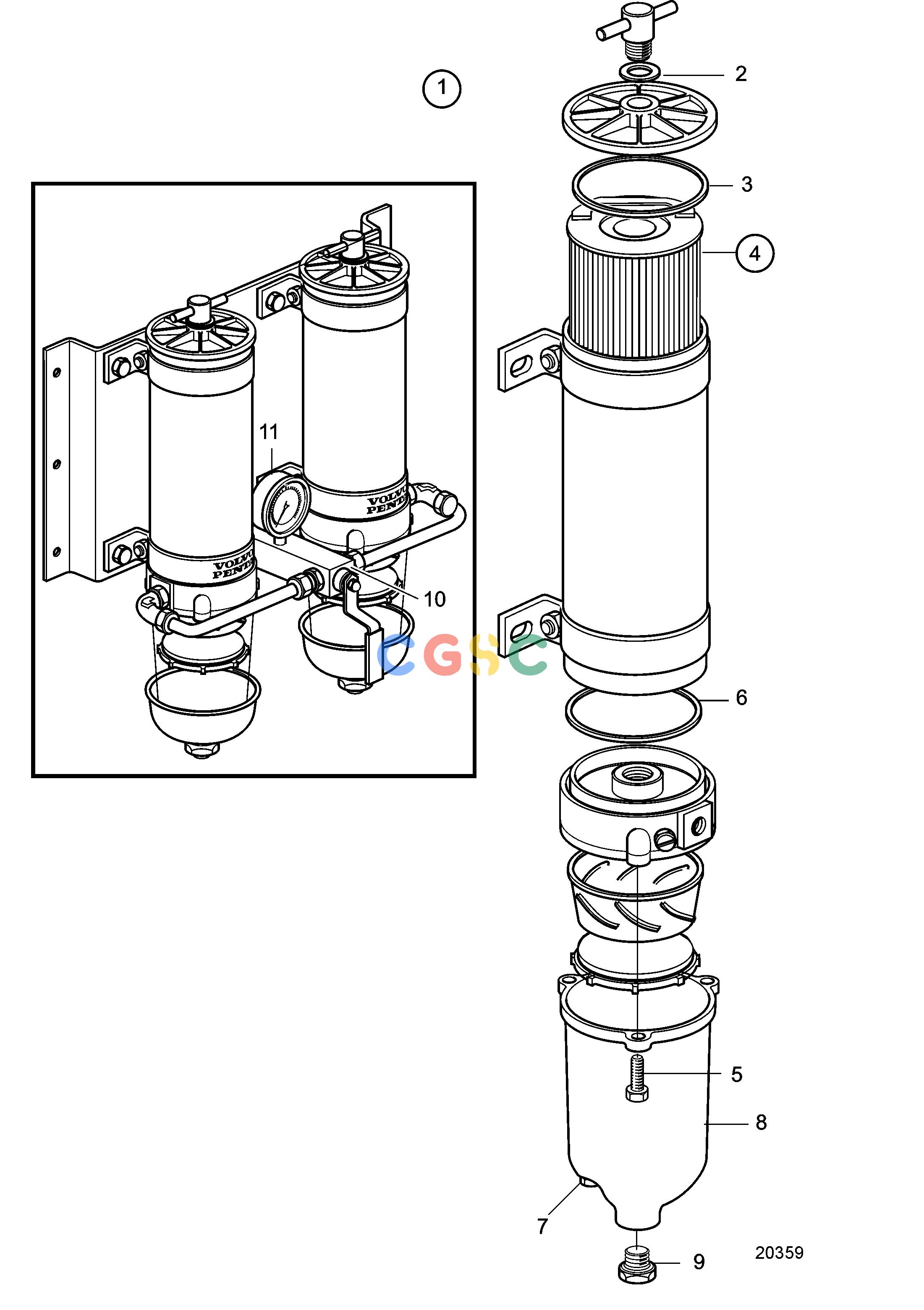

沃尔沃零件查询TMD121C; TAMD121C; TAMD121D; TAMD122C; TAMD122DFuel SystemFuel Cleaner / Water Separator, Twin. Classifiable Fuel System. Later ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825022
|
[1] |
Fuel filter
|
Later prod, Repl by 877770
|
| 1. |
877770
|
[1] |
Fuel filter
|
|
| 2. |
838506
|
[2] |
O-ring
|
|
| 3. |
846719
|
[2] |
Gasket
|
|
| 4. |
3838852
|
[2] |
Fuel filter insert
|
(3825027) 10 micron
|
| 5. |
940094
|
[2] |
Hexagon screw
|
|
| 6. |
846719
|
[2] |
Gasket
|
|
| 7. |
952075
|
[2] |
Plug
|
|
| 8. |
3838851
|
[2] |
Bowl
|
(848293)
|
| 9. |
952075
|
[2] |
Plug
|
|
| 10. |
3827300
|
[1] |
Block
|
|
| 11. |
3827299
|
[1] |
Manometer
|
|
