神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (04-002) - ELEMENT KIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
936 次

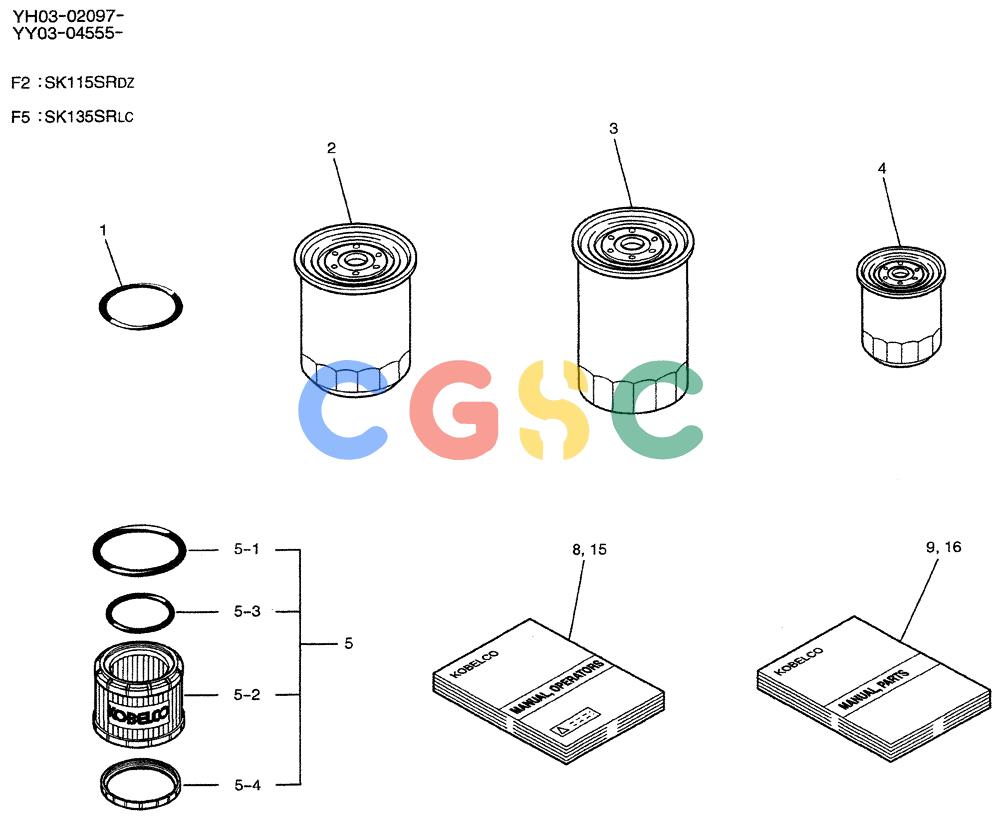

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30T00003F2 | [1] | ELEMENT KIT (SK115SRDZ) | |
| . . | YY30T00003F5 | [1] | ELEMENT KIT (SK135SRLC) | |
| 1. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 2. | 2451U544S16 | [1] | ELEMENT | KOBFILTER, OIL Superseded by part number: 2451U309-1 |
| 3. | YX02P00001S008 | [1] | ELEMENT | KOBFILTER, OIL Superseded by part number: 84160436 |
| 4. | YX02P00001S009 | [1] | FILTER | KOBFUEL Superseded by part number: EN02P00001-2 |
| 5. | YV52V01001R100 | [1] | ELEMENT | KOBFILTER Superseded by part number: YV52V01003R110 |
| 5-1. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 5-2. | YN52V01011P1 | [1] | FILTER | KOBELEMENT Superseded by part number: YN52V01021P1 |
| 5-3. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 5-4. | YN52V01008S005 | [1] | PACKING | KOB |
| 8. | YY91Z00001D7 | [1] | OPERATOR MANUAL | KOB(F2 ONLY) |
| 9. | YY91Z00002DA | [1] | OPERATOR MANUAL | KOBPARTS(F2 ONLY) |
| 15. | YY91Z00001D8 | [1] | MANUAL,OPERATORS(F5 ONLY) | |
| 16. | YY91Z00002D8 | [1] | MANUAL. PARTS(F5 ONLY) | |
