神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-003[01]) - PTO COUPLING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
714 次

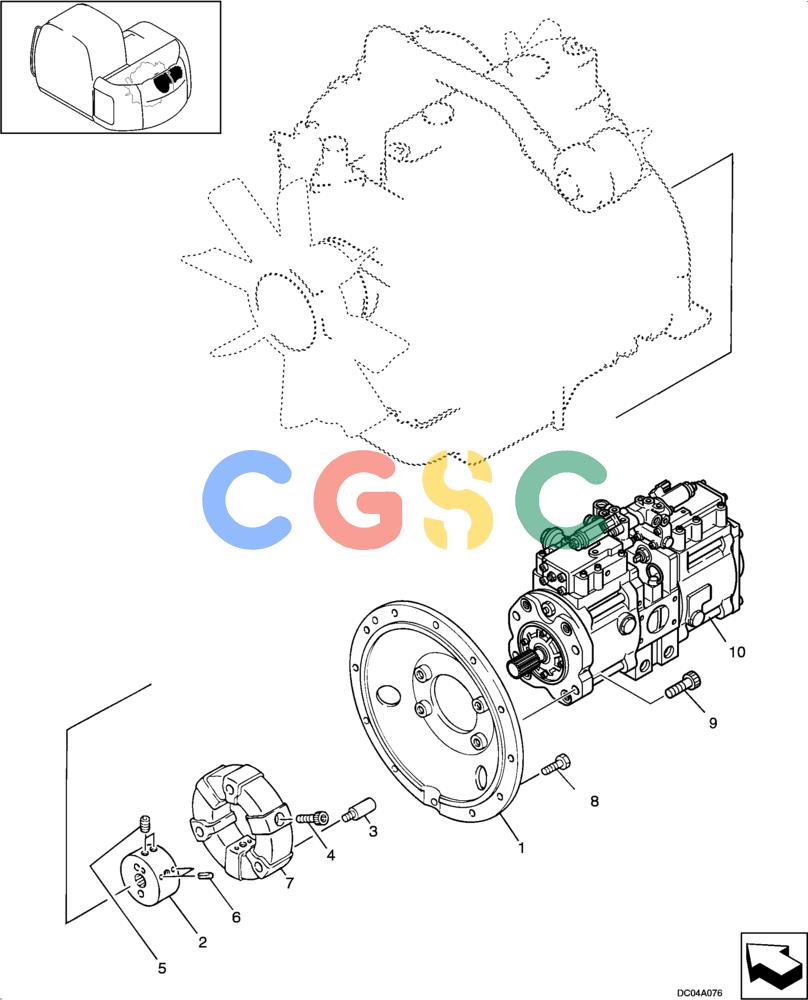

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YX30P01001P1 | [1] | BRACKET | KOB |
| . . | 2418U224F2 | [1] | COUPLING | KOBIncl. 2 - 7 |
| 2. | 2418U224S2 | [1] | HUB | KOB |
| 3. | 2418U162S2 | [4] | BOLT | KOBSOCKET |
| 4. | 2418U128S5 | [4] | SCREW | KOB Superseded by part number: LQ30P01003S005 |
| 5. | 2418U162S3 | [2] | SCREW | KOB |
| 6. | ZP26D05010 | [8] | PIN | KOB |
| 7. | 2418U224S7 | [1] | RUBBER INSULATOR | KOB Superseded by part number: YB30P01001S001 |
| 8. | ZS18C10028 | [11] | CAPSCREW,Hex, M10 x 28mm | KOBSCREW Superseded by part number: ZS18C10030 |
| 9. | ZS23C16045 | [4] | CAP,Hex Socket Head, M16 x 45mm | KOB |
| 10. | YY10V00005F1 | [1] | PUMP | KOB, Serial Range: YL04-00501-YL04-00555 Superseded by part number: YY10V00005F4 |
| 10. | YY10V00005F2 | [1] | HYDRAULIC PUMP | KOB, Start Serial: YL05-00556 Superseded by part number: YY10V00005F4 |
| 10. | YB10V00003F1 | [1] | PUMP | KOB |
