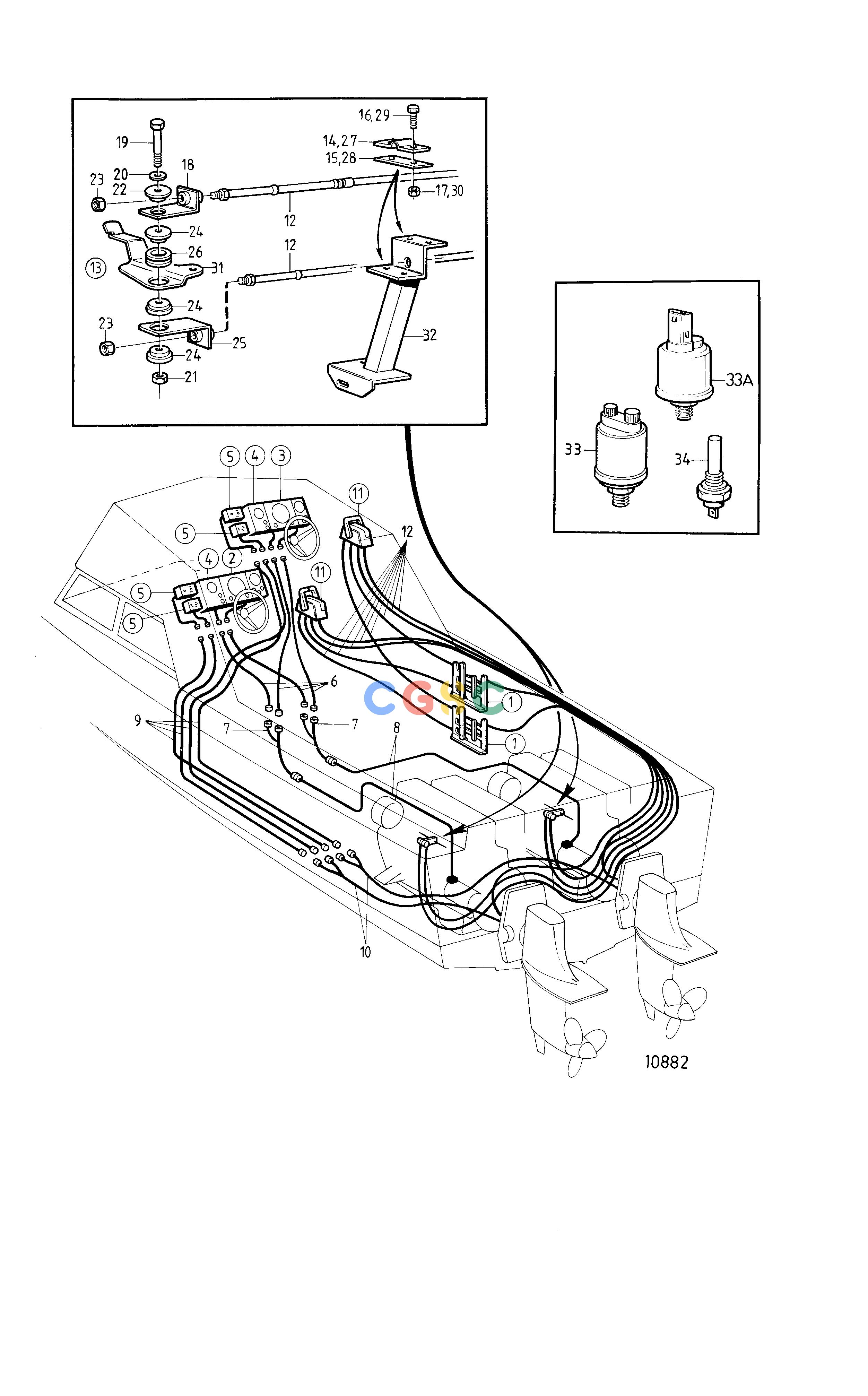

沃尔沃零件查询TMD41A; TMD41B; D41A; D41B; TAMD41A; TAMD41B; AQAD41A; AD41A; AD41B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1; AD41BJ; AD41; AD41P-B; D41; TAMD41Miscellaneous EquipmentFlybride Twin Engine Installation: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828164
|
[2] |
Connection plate
|
|
| 2. |
|
|
|
See group 3
|
| 3. |
838810
|
[2] |
Instrument panel
|
Gold coloured decor stripe., Repl by 858868
|
| 3. |
858868
|
[2] |
Instrument panel
|
White coloured decor stripe., Repl by 864043
|
| 3. |
864043
|
[2] |
Instrument panel
|
|
| 3. |
|
|
|
See group 3
|
| 4. |
846786
|
[1] |
Instrument panel
|
Gold coloured decor stripe., Repl by 858874
|
| 4. |
858874
|
[1] |
Instrument panel
|
White coloured decor stripe
|
| 5. |
828731
|
[4] |
Trimmer
|
|
| 6. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 6. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 6. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 7. |
1140317
|
[2] |
Star connection
|
|
| 8. |
|
|
|
See group 3
|
| 9. |
853052
|
[1] |
Extension cable
|
L=3000mm
|
| 10. |
7745630_284
|
|
cable unit
|
|
| 11. |
853169
|
[1] |
Mounting kit
|
|
| 11. |
851603
|
[1] |
Mounting kit
|
|
| 12. |
7745630_271
|
|
control cable
|
|
| 13. |
858770
|
[2] |
Speed control kit
|
|
| 14. |
21471054
|
[2] |
Bracket
|
|
| 15. |
819068
|
[2] |
Washer
|
|
| 16. |
956078
|
[4] |
Cross recessed screw
|
|
| 17. |
951674
|
[4] |
Lock nut
|
|
| 18. |
843107
|
[2] |
Anchorage
|
|
| 19. |
955275
|
[2] |
Hexagon screw
|
|
| 20. |
955892
|
[2] |
Washer
|
|
| 21. |
946035
|
[2] |
Lock nut
|
|
| 22. |
843105
|
[2] |
Spacer washer
|
|
| 23. |
951674
|
[4] |
Lock nut
|
|
| 24. |
843105
|
[6] |
Spacer washer
|
|
| 25. |
843107
|
[2] |
Anchorage
|
|
| 26. |
843109
|
[2] |
Bushing
|
|
| 27. |
21471054
|
[2] |
Bracket
|
|
| 28. |
819068
|
[2] |
Washer
|
|
| 29. |
956078
|
[4] |
Cross recessed screw
|
|
| 30. |
951674
|
[4] |
Lock nut
|
|
| 31. |
|
|
|
See group 2D
|
| 32. |
|
|
|
See group 2D
|
| 33. |
843232
|
[2] |
Oil pressure sensor
|
Early type
|
| 33A. |
862568
|
[2] |
Oil pressure sensor
|
Late type
|
| 34. |
840074
|
[2] |
Temperature sensor
|
|
| 34. |
862567
|
[2] |
Temperature sensor
|
For engines with 1,5 pole electrical system
|
