沃尔沃零件查询TMD41A; TMD41B; D41A; D41B; TAMD41A; TAMD41B; AQAD41A; AD41A; AD41B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1; AD41BJ; AD41; AD41P-B; D41; TAMD41Steering SystemSteering Mechanism Roto PilotEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
792 次

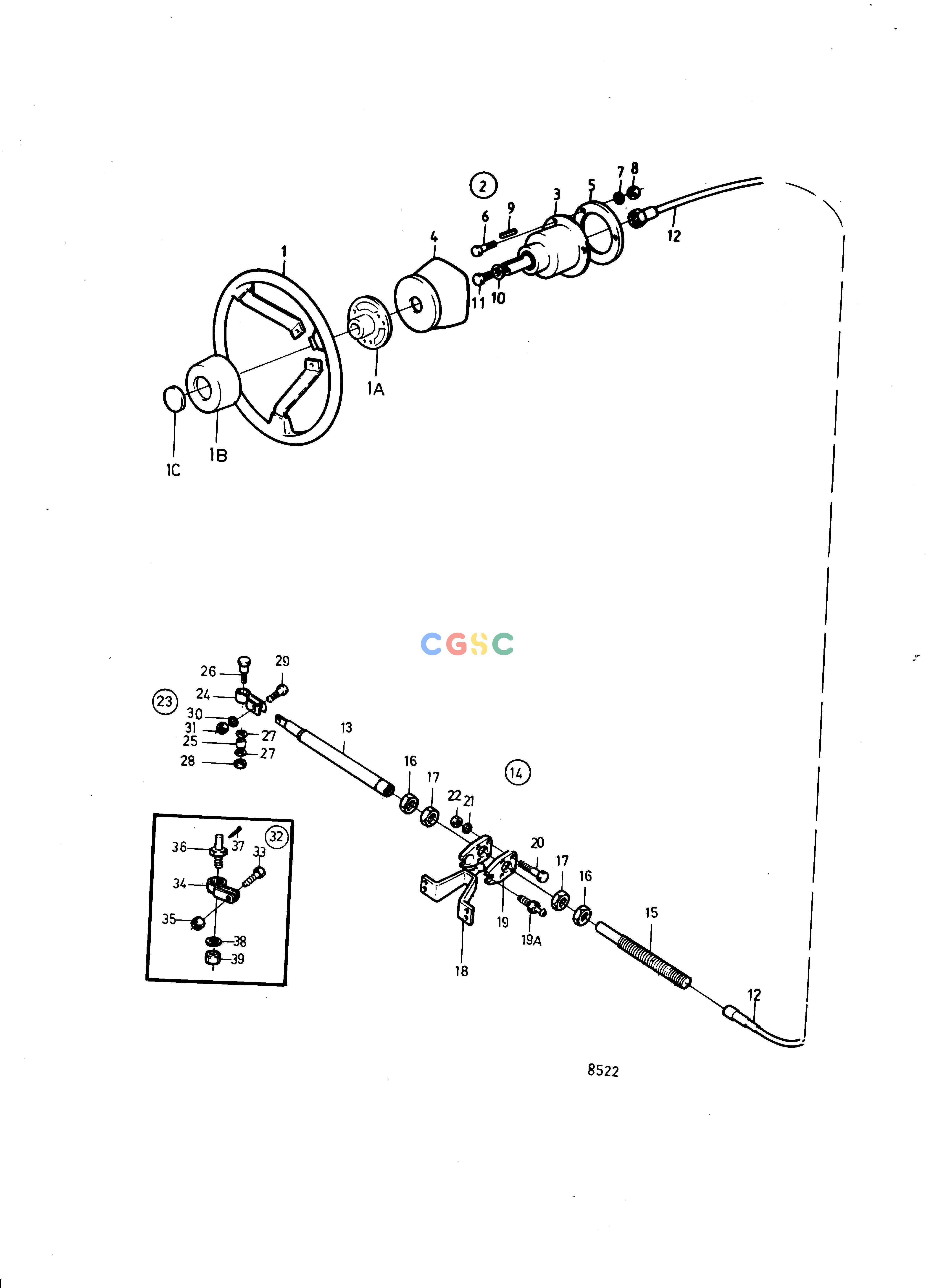

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850936
|
[1] |
Steering wheel
|
|
| 1A. |
|
|
|
|
| 1B. |
828943
|
[1] |
Steering wheel cushi
|
|
| 1C. |
850938
|
[1] |
Emblem
|
|
| 2. |
851056
|
[1] |
Steering gear
|
|
| 3. |
|
|
|
|
| 4. |
851057
|
[1] |
Cover
|
|
| 5. |
851069
|
[1] |
Washer
|
|
| 6. |
940101
|
[3] |
Hexagon screw
|
|
| 7. |
941906
|
[3] |
Spring washer
|
(955892)
|
| 8. |
955781
|
[3] |
Hexagon nut
|
|
| 9. |
851349
|
[1] |
Key
|
|
| 10. |
948823
|
[1] |
Washer
|
|
| 11. |
970944
|
[1] |
Hexagon screw
|
(940148)
|
| 12. |
852035
|
[1] |
Steering cable
|
L=800mm
|
| 12. |
851016
|
[1] |
Steering cable, steering cable
|
L=2500mm
|
| 12. |
|
|
|
Repl by 851020
|
| 12. |
851017
|
[1] |
Steering cable
|
L=2750mm
|
| 12. |
851018
|
[1] |
Steering cable
|
L=3000mm
|
| 12. |
851019
|
[1] |
Steering cable, steering cable
|
L=3250mm
|
| 12. |
851020
|
[1] |
Steering cable
|
L=3500mm
|
| 12. |
851021
|
[1] |
Steering cable
|
L=3750mm
|
| 12. |
851022
|
[1] |
Steering cable
|
L=4000mm
|
| 12. |
851023
|
[1] |
Steering cable
|
L=4250mm
|
| 12. |
851024
|
[1] |
Steering cable
|
L=4500mm
|
| 12. |
851025
|
[1] |
Steering cable
|
L=4750mm
|
| 12. |
851026
|
[1] |
Steering cable
|
L=5000mm
|
| 12. |
851027
|
[1] |
Steering cable
|
L=5250mm
|
| 12. |
851028
|
[1] |
Steering cable
|
L=5500mm
|
| 12. |
851029
|
[1] |
Steering cable
|
L=5750mm
|
| 12. |
851030
|
[1] |
Steering cable
|
L=6000mm
|
| 12. |
851031
|
[1] |
Steering cable
|
L=6500mm
|
| 12. |
851032
|
[1] |
Steering cable
|
L=7000mm
|
| 12. |
851033
|
[1] |
Steering cable
|
L=7500mm
|
| 12. |
851034
|
[1] |
Steering cable
|
L=8000mm
|
| 12. |
851921
|
[1] |
Steering cable
|
L=8500mm
|
| 12. |
851922
|
[1] |
Steering cable
|
L=9000mm
|
| 12. |
851923
|
[1] |
Steering cable
|
L=9500mm
|
| 13. |
851059
|
[1] |
Steering cylinder
|
For port mounting
|
| 13. |
851147
|
[1] |
Steering cylinder
|
For starboard mounting
|
| 14. |
853290
|
[1] |
Stern attachment
|
|
| 15. |
850771
|
[1] |
Anchorage
|
|
| 16. |
850778
|
[2] |
Nut
|
|
| 17. |
853306
|
[2] |
Nut
|
|
| 18. |
851093
|
[1] |
Bracket
|
|
| 19. |
828854
|
[1] |
Anchorage
|
Late type
|
| 19. |
828857
|
[1] |
Anchorage
|
Late type
|
| 19A. |
951739
|
[1] |
Lubricating nipple
|
For 828857
|
| 20. |
940101
|
[2] |
Hexagon screw
|
Late type
|
| 21. |
941906
|
[2] |
Spring washer
|
Late type
|
| 22. |
963105
|
[2] |
Lock nut
|
Late type
|
| 23. |
851122
|
[1] |
Ball joint kit
|
Repl by 828924
|
| 24. |
|
|
|
|
| 25. |
851121
|
[1] |
Sleeve
|
|
| 26. |
851117
|
[1] |
Shoulder screw
|
|
| 27. |
942551
|
[2] |
Washer
|
|
| 28. |
966172
|
[1] |
Lock nut
|
|
| 29. |
851118
|
[1] |
Shoulder screw
|
|
| 30. |
941670
|
[1] |
Washer
|
|
| 31. |
966171
|
[1] |
Lock nut
|
|
| 32. |
828924
|
[1] |
Ball joint kit
|
(851122)
|
| 33. |
851118
|
[1] |
Shoulder screw
|
|
| 34. |
|
|
|
|
| 35. |
966171
|
[1] |
Lock nut
|
|
| 36. |
|
|
|
|
| 37. |
967707
|
[1] |
Split pin
|
|
| 38. |
955897
|
[1] |
Washer
|
|
| 39. |
963119
|
[1] |
Lock nut
|
|
