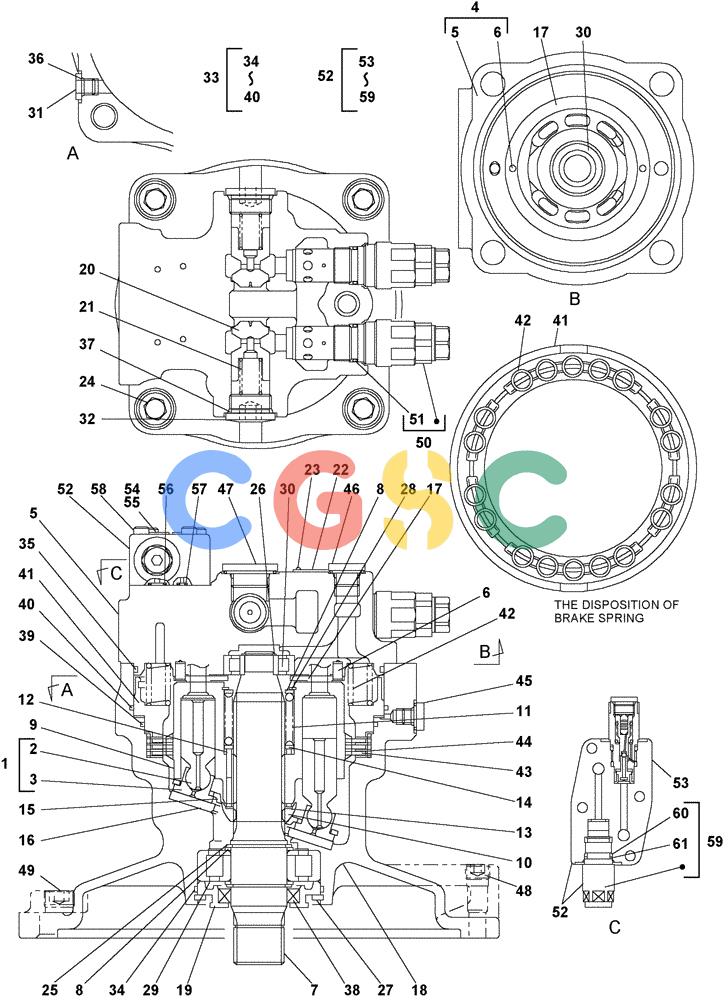

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-063-00[01]) - HYDRAULIC MOTOR - SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUC0017 | [1] | MOTOR, HYDRAULIC | SUM |
| 1. | LJ00588 | [1] | PISTON | SUM |
| 2. | NSS | [9] | NOT SERVICED SEPARATELY | CON |
| 4. | LW00260 | [1] | HOUSING | SUM |
| 6. | 738-1816 | [2] | LOCK PIN,M8 x 16, Slotted | SUM |
| 7. | LB00704 | [1] | DRIVE SHAFT | SUM |
| 8. | 155627A1 | [3] | SPACER | SUM |
| 9. | 167062A1 | [1] | BARREL | SUM |
| 10. | 156800A1 | [1] | RETAINER | SUM |
| 11. | LG00264 | [1] | SPRING | SUM |
| 12. | 155656A1 | [12] | TAPPET | SUM |
| 13. | 155628A1 | [1] | SPACER | SUM Superseded by part number: 155627A1 |
| 14. | 155629A1 | [1] | SPACER | SUM |
| 15. | LR00753 | [1] | PLATE | SUM |
| 16. | LR00232 | [1] | PLATE | SUM |
| 17. | LR00754 | [1] | PLATE | SUM |
| 18. | 167063A1 | [1] | HOUSING | SUM |
| 19. | 156319A1 | [1] | COVER | SUM |
| 20. | LJ00529 | [2] | PLUNGER | SUM |
| 21. | LG00237 | [2] | SPRING | SUM |
| 24. | 863-22045 | [4] | HEX SOC SCREW,M22 x 45mm, Cl 12.9 | SUMM22 x 45; 12.9 |
| 25. | 800-1150 | [2] | SNAP RING,M50, Ext | CAS Superseded by part number: 8603209 |
| 26. | LA00791 | [1] | RING, LOCKING | SUM |
| 27. | 800-21110 | [1] | SNAP RING,M110, Int | CAS Superseded by part number: 301652 |
| 28. | 166179A1 | [1] | RING, SNAP | SUMSNAP RING |
| 29. | 156132A1 | [1] | BEARING, ROLLER,50 mm ID x 110 mm OD x 27 mm | SUM Superseded by part number: 80450644 |
| 30. | LB00705 | [1] | BEARING | SUM |
| 31. | LK00015 | [1] | PLUG | SUM |
| 32. | LK00346 | [2] | PLUG | SUM |
| 33. | LE00913 | [1] | SEAL | SUM |
| 34. | 154739A1 | [1] | O-RING | SUM Superseded by part number: 154741A1 |
| 35. | 155217A1 | [1] | O-RING | SUM |
| 36. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 37. | 154543A1 | [2] | O-RING | SUM |
| 38. | TAM0012 | [1] | OIL SEAL | SUM Superseded by part number: 155109A1 |
| 39. | 155215A1 | [1] | O-RING | SUM |
| 40. | 155218A1 | [1] | O-RING | SUM |
| 41. | LJ00872 | [1] | PISTON | SUM |
| 42. | LG00022 | [18] | SPRING | SUM |
| 43. | 156318A1 | [3] | BRAKE DISC | SUM |
| 44. | 156317A1 | [4] | DISC | SUM |
| 45. | LK00024 | [1] | PLATE | SUM |
| 46. | LK00023 | [1] | PLUG | SUM |
| 47. | LK00025 | [1] | PLUG | SUM |
| 48. | LK00001 | [1] | PLUG | SUM |
| 49. | LK00002 | [1] | PLUG | SUM |
| 50. | LJ00873 | [2] | VALVE, PRESSURE RELI | SUMEF |
| 51. | 154529A1 | [4] | O-RING | SUM |
| 52. | LJ00535 | [1] | VALVE | SUM |
| 53. | 162755A1 | [1] | CASING | SUM |
| 56. | 154471A1 | [2] | O-RING | SUM |
| 57. | 154447A1 | [2] | O-RING | SUM |
| 58. | 863-8055 | [4] | HEX SOC SCREW,M8 x 55mm, Cl 12.9 | SUMM8 x 55 |
| 59. | LJ00536 | [2] | VALVE | SUM |
| 60. | 154491A1 | [4] | O-RING | SUM |
| 61. | 153973A1 | [4] | BACK-UP RING | SUMRING, BACK-UP |
