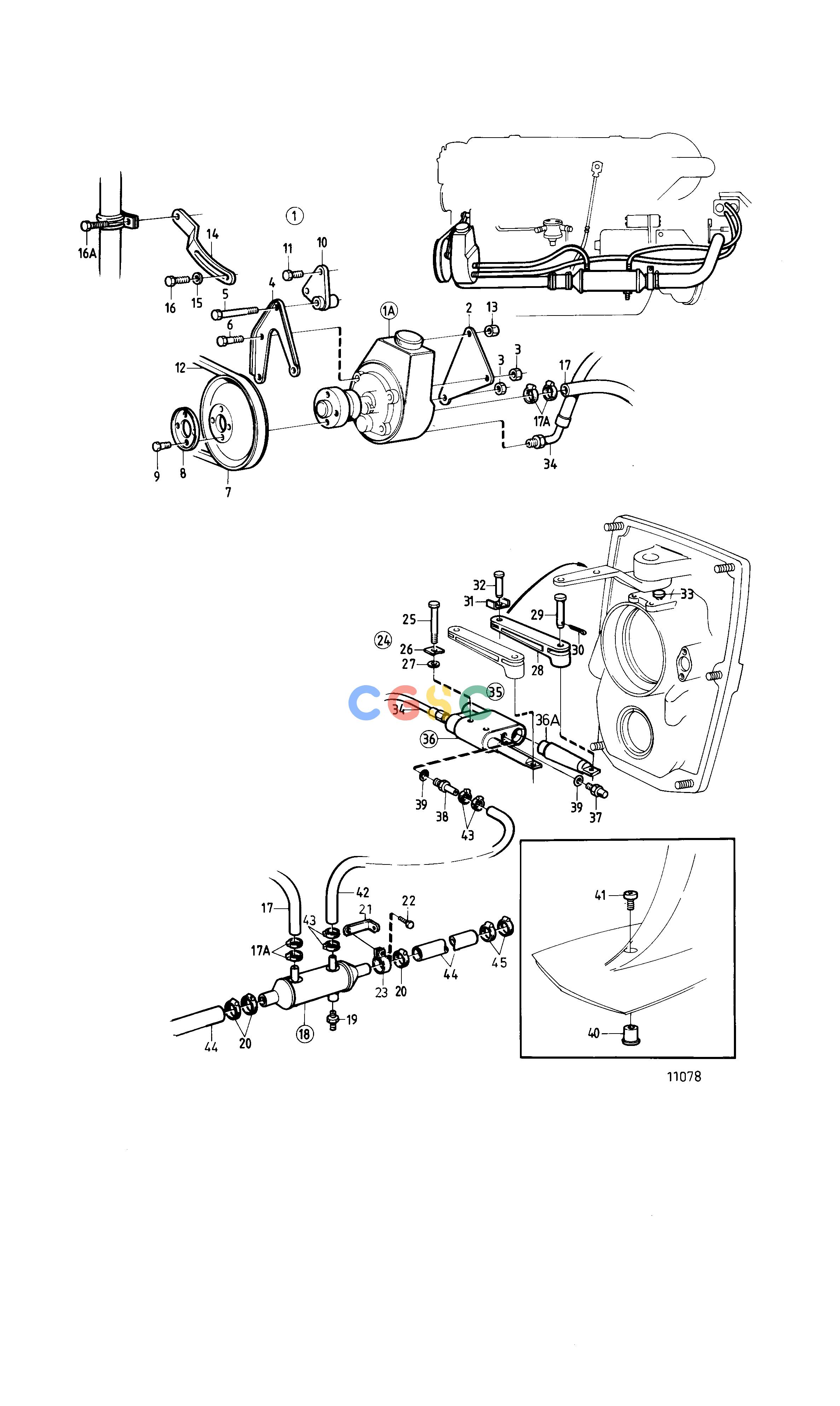

沃尔沃零件查询TMD41B; D41B; TAMD41B; AD41B; AD41BJSteering SystemPower Steering, Earlier ProdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860957
|
[1] |
Servo pump kit
|
|
| 1A. |
838310
|
[1] |
Servo pump
|
|
| 2. |
838892
|
[1] |
Bracket
|
|
| 3. |
971095
|
[1] |
Flange nut
|
(945409)
|
| 3. |
971083
|
[1] |
Lock nut
|
|
| 4. |
838893
|
[1] |
Bracket
|
|
| 5. |
955557
|
[1] |
Hexagon screw
|
|
| 6. |
946329
|
[2] |
Flange screw
|
L=25mm
|
| 6. |
946441
|
[1] |
Flange screw
|
L=20mm
|
| 7. |
1219961
|
[1] |
V-belt pulley
|
|
| 8. |
464541
|
[1] |
Washer
|
|
| 9. |
944926
|
[4] |
Flange screw
|
|
| 10. |
838312
|
[1] |
Bracket
|
|
| 11. |
947760
|
[2] |
Flange screw
|
|
| 12. |
967123
|
[1] |
V-belt
|
(960470)
|
| 13. |
950355
|
[1] |
Lock nut
|
|
| 14. |
838073
|
[1] |
Tensioner
|
|
| 15. |
960141
|
[1] |
Washer
|
|
| 16. |
946173
|
[1] |
Flange screw
|
|
| 16A. |
948217
|
[1] |
Flange screw
|
|
| 17. |
838311
|
[1] |
Return hose
|
L=1800mm
|
| 17A. |
961664
|
[4] |
Hose clamp
|
|
| 18. |
858541
|
[1] |
Oil cooler
|
|
| 19. |
949918
|
[1] |
Shut-off cock
|
|
| 20. |
961669
|
[3] |
Hose clamp
|
|
| 21. |
860701
|
[1] |
Bracket
|
|
| 22. |
946671
|
[1] |
Flange screw
|
|
| 23. |
860700
|
[1] |
Attaching clamp
|
|
| 24. |
858722
|
[1] |
Power steering kit
|
|
| 25. |
968247
|
[2] |
Hexagon screw
|
|
| 26. |
853254
|
[2] |
Striker plate
|
|
| 27. |
941908
|
[2] |
Spring washer
|
|
| 28. |
852787
|
[1] |
Link rod
|
|
| 29. |
852789
|
[1] |
Clevis pin
|
|
| 30. |
907856
|
[1] |
Split pin
|
|
| 31. |
853160
|
[1] |
Lock washer
|
|
| 32. |
913158
|
[1] |
Clevis pin
|
|
| 33. |
184700
|
[1] |
Roller
|
|
| 34. |
853454
|
[1] |
Pressure hose
|
|
| 35. |
|
|
|
|
| 36. |
852741
|
[1] |
Steering cylinder
|
|
| 36. |
853307
|
[1] |
Repair kit
|
|
| 36A. |
853983
|
[1] |
Piston rod guide
|
|
| 37. |
957031
|
[1] |
Nipple
|
|
| 38. |
946152
|
[1] |
Nipple
|
|
| 39. |
958226
|
[2] |
O-ring
|
|
| 40. |
853531
|
[1] |
Anode kit
|
DP
|
| 40. |
853589
|
[1] |
Anode kit
|
SP
|
| 41. |
959437
|
[1] |
Hex. socket screw
|
|
| 42. |
838311
|
[1] |
Return hose
|
|
| 43. |
961664
|
[1] |
Hose clamp
|
|
| 44. |
|
|
|
See group 2B,4A
|
| 45. |
961669
|
[1] |
Hose clamp
|
|
