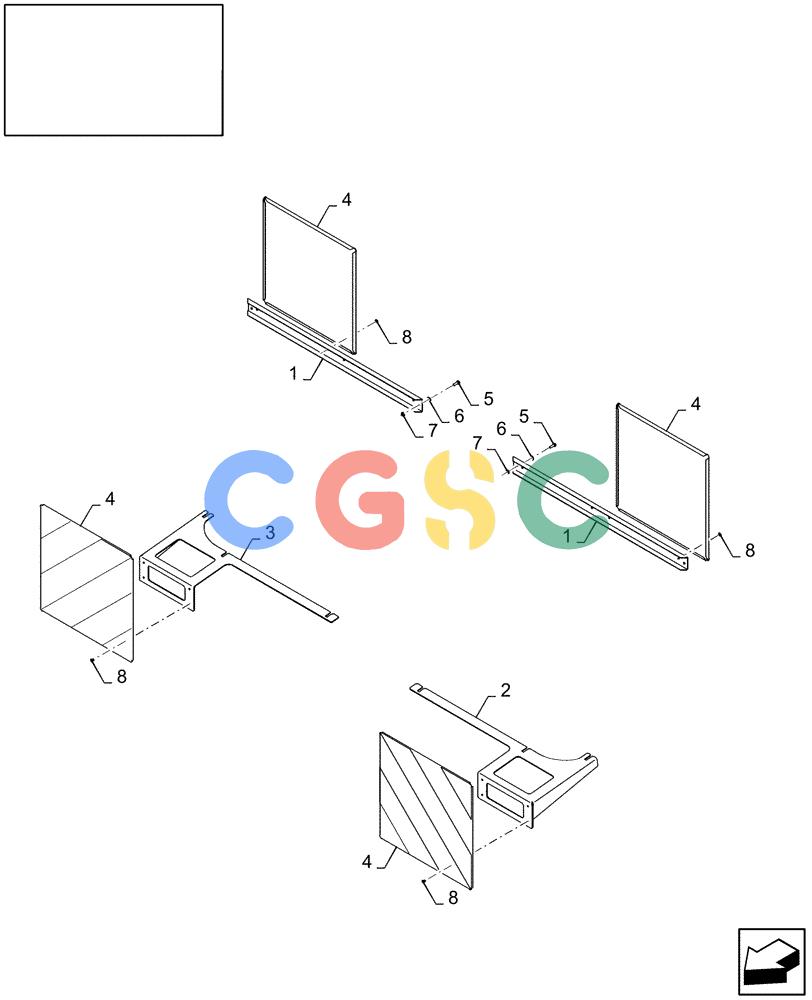

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (18.84123388[01]) - DIA : WIDTH SIGNAL PLATES KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84123388
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84429146
|
[2] |
SUPPORT
|
ZED
|
| 2. |
84123714
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84123712
|
[1] |
SUPPORT
|
ZED
|
| 4. |
84607381
|
[4] |
PLATE
|
ZED
|
| 5. |
120100
|
[4] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 6. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 8. |
445394
|
[12] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
