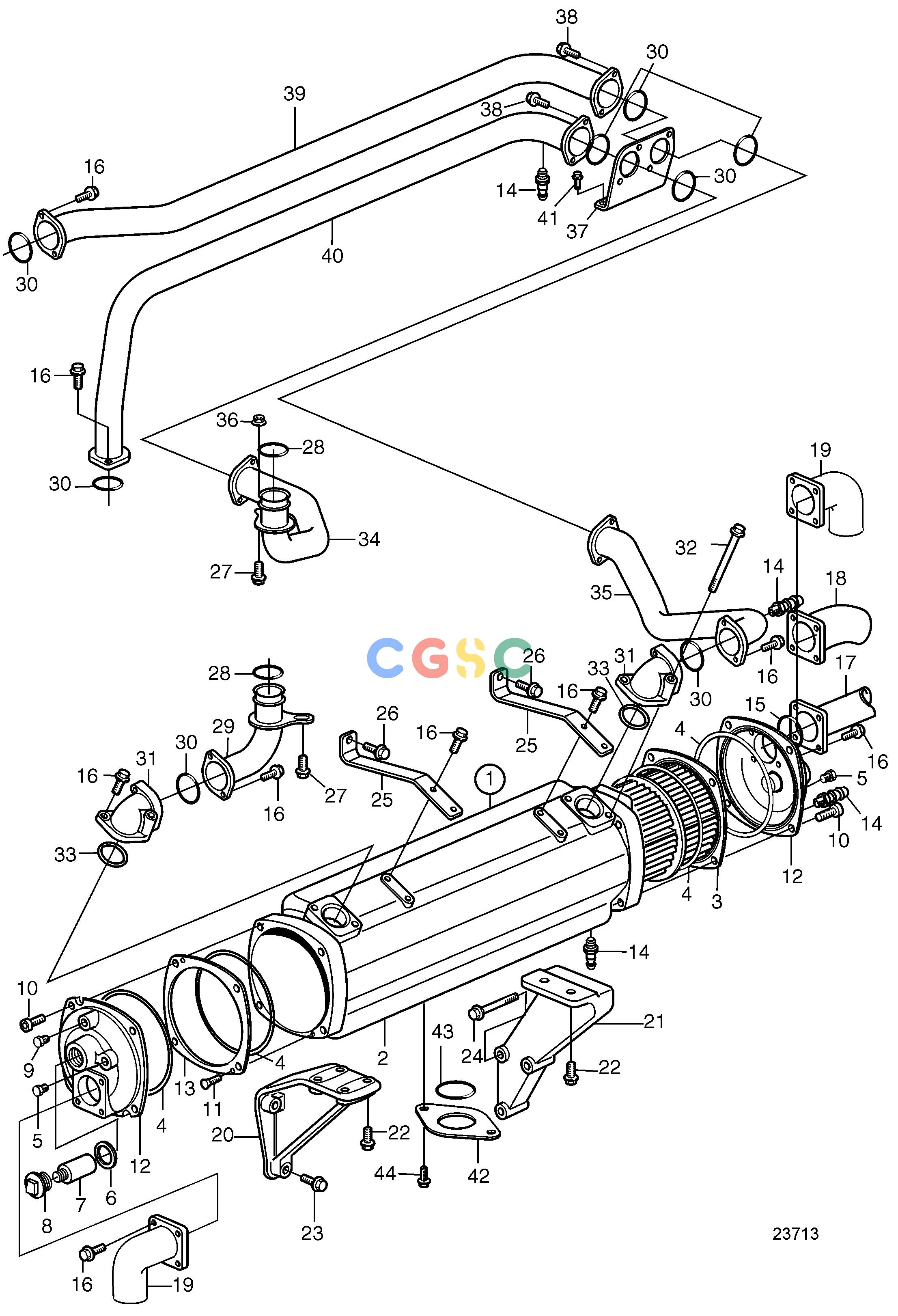

沃尔沃零件查询D12D-A MG; D12D-E MGCooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3843533
|
[1] |
Heat exchanger
|
Late type
|
| 2. |
|
|
|
|
| 3. |
3830696
|
[1] |
Insert
|
|
| 4. |
3826783
|
[4] |
O-ring
|
|
| 5. |
982364
|
[2] |
Plug
|
|
| 6. |
836169
|
[2] |
Gasket
|
|
| 7. |
823661
|
[2] |
Zinc anode
|
|
| 8. |
823662
|
[2] |
Plug
|
|
| 9. |
982363
|
[1] |
Plug
|
|
| 10. |
959224
|
[8] |
Hex. socket screw
|
L=35mm
|
| 11. |
942001
|
[4] |
Hex. socket screw
|
L=16mm
|
| 12. |
3830697
|
[2] |
End plate
|
|
| 13. |
3830694
|
[1] |
Spacer
|
|
| 14. |
949918
|
[4] |
Shut-off cock
|
|
| 15. |
843584
|
[1] |
Gasket
|
|
| 16. |
946173
|
[18] |
Flange screw
|
|
| 17. |
|
|
|
See oil cooler for reversing gear, group 26.
|
| 18. |
3830257
|
[1] |
Pipe elbow, hose connecting
|
Alt 30°
|
| 19. |
3830255
|
[1] |
Pipe elbow, hose connecting
|
Alt 90°
|
| 20. |
865377
|
[1] |
Bracket
|
|
| 21. |
865376
|
[1] |
Bracket
|
|
| 22. |
946752
|
[6] |
Flange screw
|
|
| 23. |
965220
|
[3] |
Flange screw
|
|
| 24. |
965188
|
[3] |
Flange screw
|
|
| 25. |
3827441
|
[2] |
Bracket
|
|
| 26. |
965217
|
[2] |
Flange screw
|
|
| 27. |
948217
|
[2] |
Flange screw
|
|
| 28. |
1547253
|
[2] |
Sealing ring
|
|
| 29. |
865930
|
[1] |
Coolant pipe, charge air cooler
|
|
| 30. |
864491
|
[8] |
Gasket
|
|
| 31. |
865821
|
[2] |
Pipe connection
|
|
| 32. |
965180
|
[2] |
Flange screw
|
|
| 33. |
925069
|
[2] |
O-ring
|
|
| 34. |
3832829
|
[1] |
Coolant pipe, charge air cooler
|
|
| 35. |
3832856
|
[1] |
Coolant pipe
|
|
| 36. |
948645
|
[1] |
Flange lock nut
|
|
| 37. |
3832830
|
[1] |
Bracket
|
|
| 38. |
945444
|
[4] |
Flange screw
|
|
| 39. |
3832833
|
[1] |
Coolant pipe, therm. housing
|
|
| 40. |
3837473
|
[1] |
Coolant pipe, circulation pump
|
|
| 41. |
946471
|
[2] |
Flange screw
|
|
| 42. |
3827303
|
[1] |
Cap
|
|
| 43. |
925255
|
[1] |
O-ring
|
|
| 44. |
946173
|
[2] |
Flange screw
|
|
