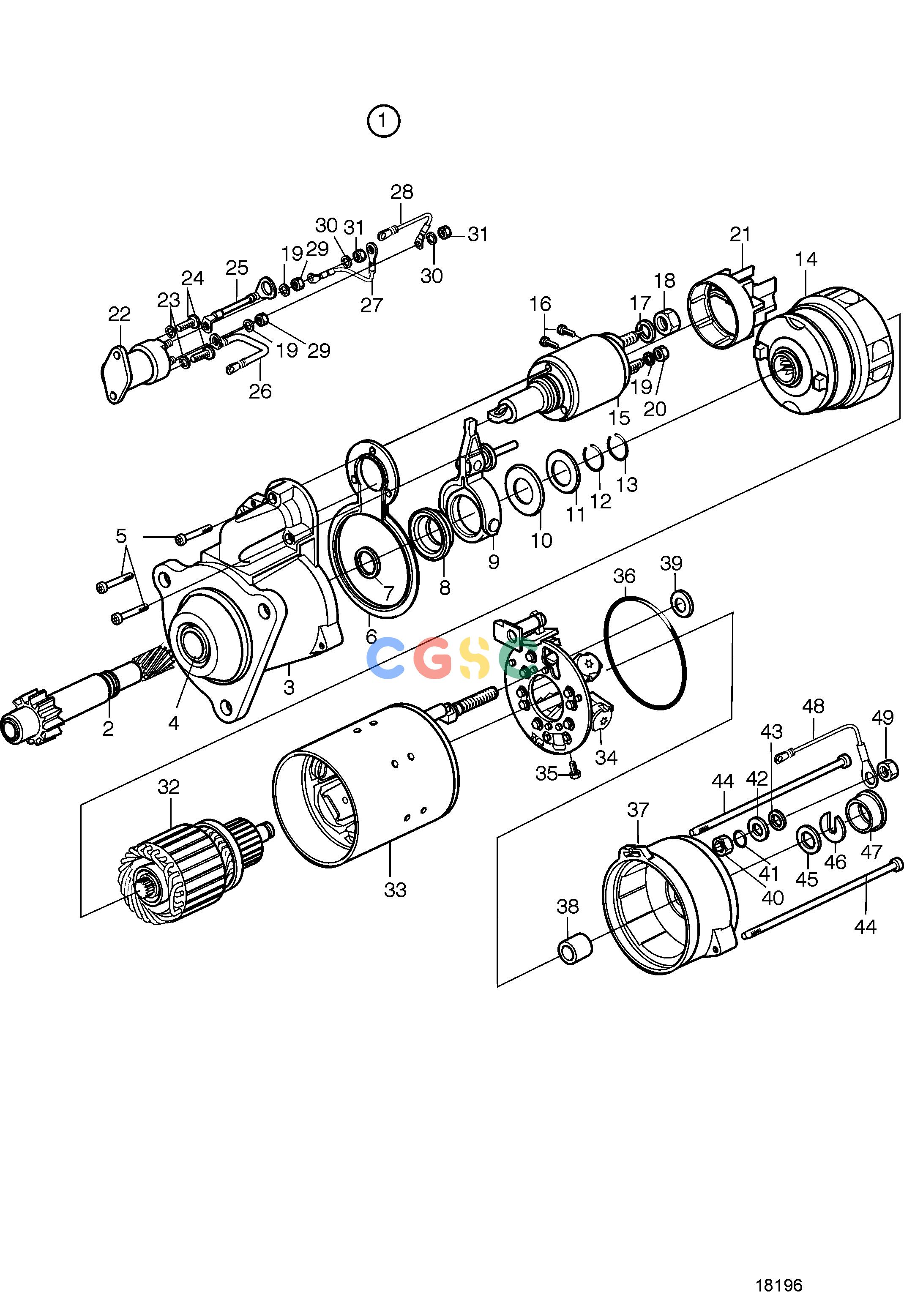

沃尔沃零件查询D12D-A MG; D12D-E MGElectrical SystemStarter Motor, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
874468
|
[1] |
Starter motor
|
|
| 1. |
3803872
|
[1] |
Starter motor, exch
|
|
| 2. |
3885269
|
[1] |
Starter pinion
|
(3819991)
|
| 3. |
874350
|
[1] |
Bearing housing
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
3819996
|
[1] |
Intermediate lever
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
874352
|
[1] |
Planetary gear
|
|
| 15. |
3819998
|
[1] |
Solenoid
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
3887186
|
[1] |
Starter relay
|
(3840001)
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
874357
|
[1] |
Cable
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
874351
|
[1] |
Rotor
|
|
| 33. |
874353
|
[1] |
Field winding
|
|
| 34. |
874354
|
[1] |
Brush retainer
|
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
| 37. |
874356
|
[1] |
Bearing
|
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
|
|
|
|
| 41. |
|
|
|
|
| 42. |
|
|
|
|
| 43. |
|
|
|
|
| 44. |
|
|
|
|
| 45. |
|
|
|
|
| 46. |
|
|
|
|
| 47. |
|
|
|
|
| 48. |
|
|
|
|
| 49. |
|
|
|
|
