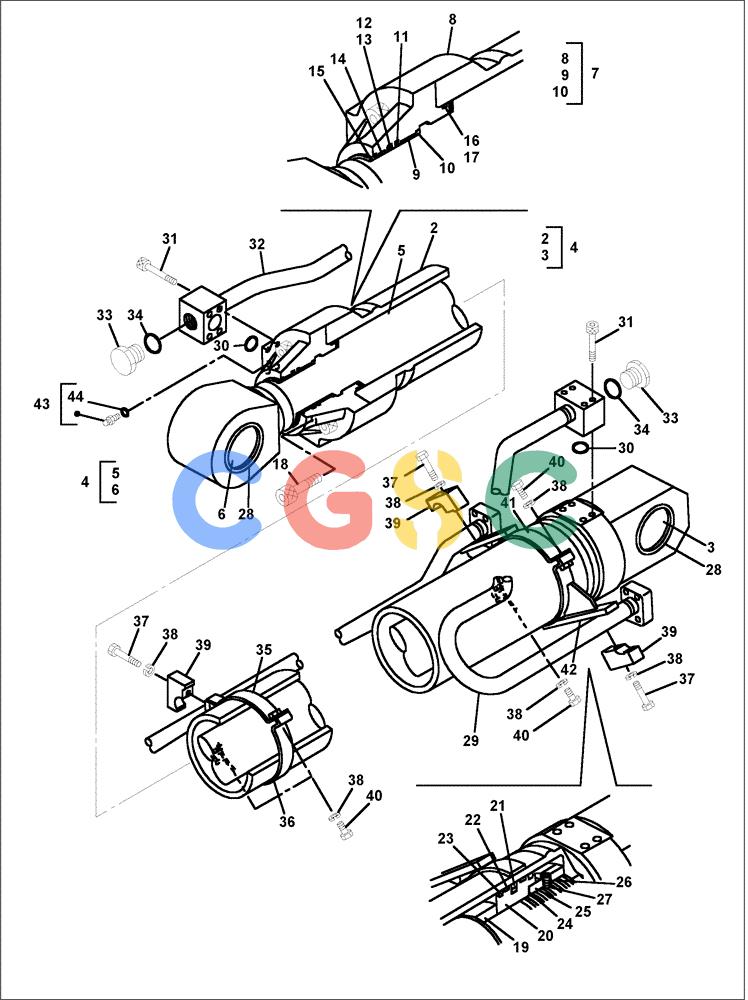

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-109-00[01]) - DIPPER CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUV0242 | [1] | HYDRAULIC CYLINDER | SUM |
| 1. | LR00750 | [1] | HYD CYL SLEEVE | SUM |
| 2. | LR00751 | [1] | PIPE ASSY. | SUM Superseded by part number: LR00750 |
| 3. | KUV0037 | [1] | BUSHING | SUM |
| 4. | LB00702 | [1] | PISTON ROD | SUM |
| 5. | LB00703 | [1] | PISTON ROD | SUM Superseded by part number: LB00702 |
| 7. | LU00062 | [1] | CYLINDER END CAP | SUM |
| 8. | LU00063 | [1] | CYLINDER END CAP | SUM |
| 9. | LB00461 | [1] | BUSHING | SUM |
| 10. | LA00623 | [1] | LOCKING RING | SUM |
| 11. | LE00624 | [1] | RING | SUM |
| 12. | LE00485 | [1] | WIPER SEAL | SUM |
| 13. | LE00486 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 14. | LE00625 | [1] | SEALING STRIP | SUM |
| 15. | LE00911 | [1] | WIPER SEAL | SUM |
| 16. | LE00488 | [1] | O-RING | SUM |
| 17. | LE00627 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 18. | 108R033W110N | [8] | BOLT | SUM |
| 19. | LE00912 | [1] | RING | SUM |
| 20. | LJ00627 | [1] | JACK PISTON | SUM |
| 21. | LE00628 | [1] | SEALING RING | SUMSEALRING |
| 22. | LE00629 | [2] | SEALING STRIP | SUM |
| 23. | LE00630 | [2] | SEALING STRIP | SUM |
| 24. | LH00213 | [1] | SEALING STRIP | SUM |
| 25. | LA00619 | [1] | SPECIAL NUT | SUM |
| 26. | LA00617 | [1] | SCREW,Hex Skt | SUM |
| 27. | LB00459 | [1] | BALL | SUM |
| 28. | LE00653 | [4] | WIPER SEAL | SUM |
| 29. | LR00450 | [1] | PIPE ASSY. | SUM |
| 30. | TBU0048 | [2] | O-RING | SUM |
| 31. | LUU0092 | [8] | BOLT,Hex Skt Hd | SUM |
| 32. | LR00752 | [1] | PIPE ASSY. | SUM |
| 33. | LK00249 | [2] | PLUG | SUM |
| 34. | 154568A1 | [2] | O-RING | SUM |
| 35. | LD00022 | [1] | CLAMP BRACKET | SUM |
| 36. | LD00023 | [1] | CLAMP BRACKET | SUM |
| 37. | LA00616 | [3] | BOLT | SUM |
| 38. | 892-16014 | [7] | LOCK WASHER,M14, Hvy | SUM |
| 39. | LS00105 | [3] | HALF-FLANGE | SUM Superseded by part number: LS003190 |
| 40. | 828-14050 | [4] | BOLT,Hex, M14 x 2 x 50mm, Cl 10.9 | CASM14 x 50; 10.9 |
| 41. | LD00024 | [1] | CLAMP BRACKET | SUM |
| 42. | LD00025 | [1] | CLAMP BRACKET | SUM |
| 43. | LJ00624 | [1] | BLEEDER | SUM |
| 44. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
