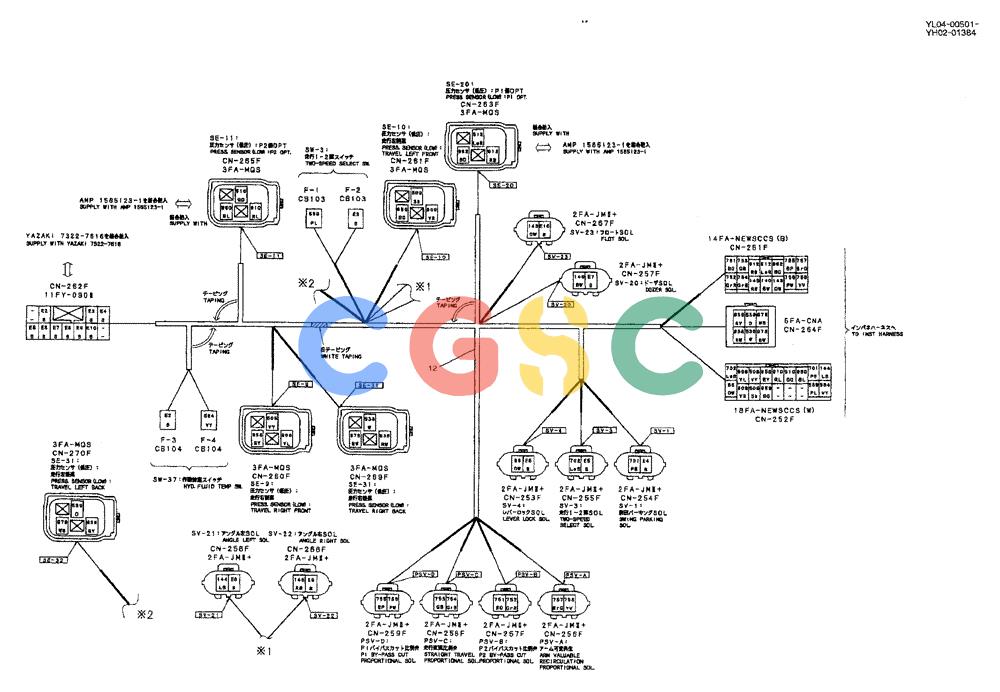

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-024[02]) - HARNESS ASSY, UPP (PLATE, FLOOR) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
122 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY13E00010F8 | [1] | HARNESS ASSY, UPP (PLATE, FLOOR) | |
| 2. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 3. | LE13E01005P1 | [1] | CABLE,100mm L | KOB100mm Long (3-15/16 in) |
| 4. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 5. | ZS18C08016 | [1] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 12. | YY13E01099P1 | [1] | HARNESS | KOB |
