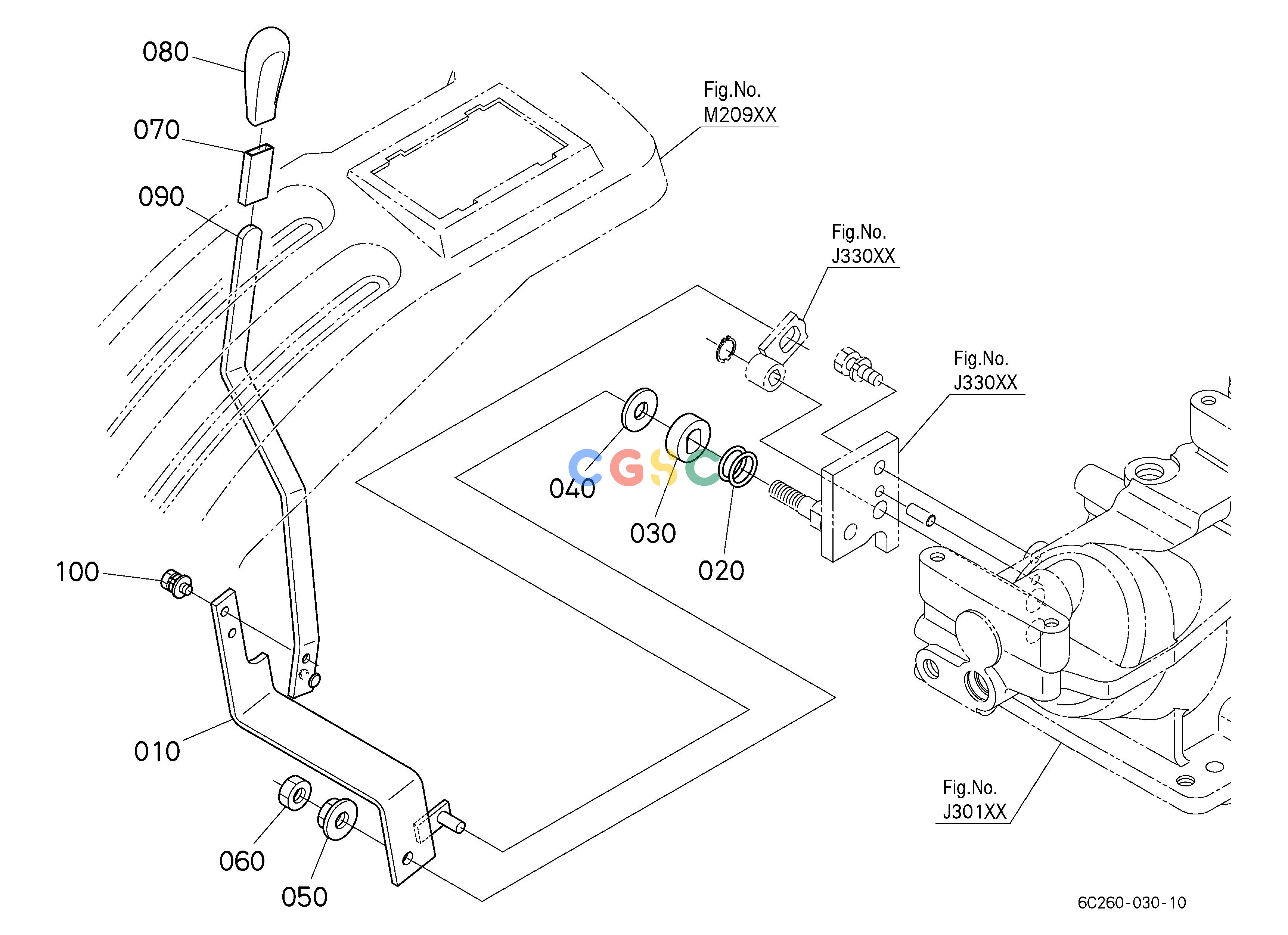

久保田零件查询F14002 POSITION CONTROL LEVER PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C26138210
|
[1] |
LEVER,POSITION
|
1.4960(lbs); 0.680
|
| 020. |
6C20038260
|
[1] |
SPRING,LEVER
|
0.0264(lbs); 0.012
|
| 030. |
6C20038253
|
[1] |
COLLAR
|
0.0770(lbs); 0.035
|
| 040. |
PA40146640
|
[1] |
PLATE,FRICTION
|
0.0066(lbs); 0.003
|
| 050. |
0213150100
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
6A90038250
|
[1] |
CUSHION(POSITION MA)
|
0.0066(lbs); 0.003
|
| 080. |
6A70038242
|
[1] |
GRIP,BLACK 83
|
0.1210(lbs); 0.055
|
| 090. |
6C26036312
|
[1] |
LEVER,HYD UPPER
|
0.9130(lbs); 0.415
|
| 100. |
0112550816
|
[1] |
BOLT,W SEMS
|
0.0286(lbs); 0.013
|
