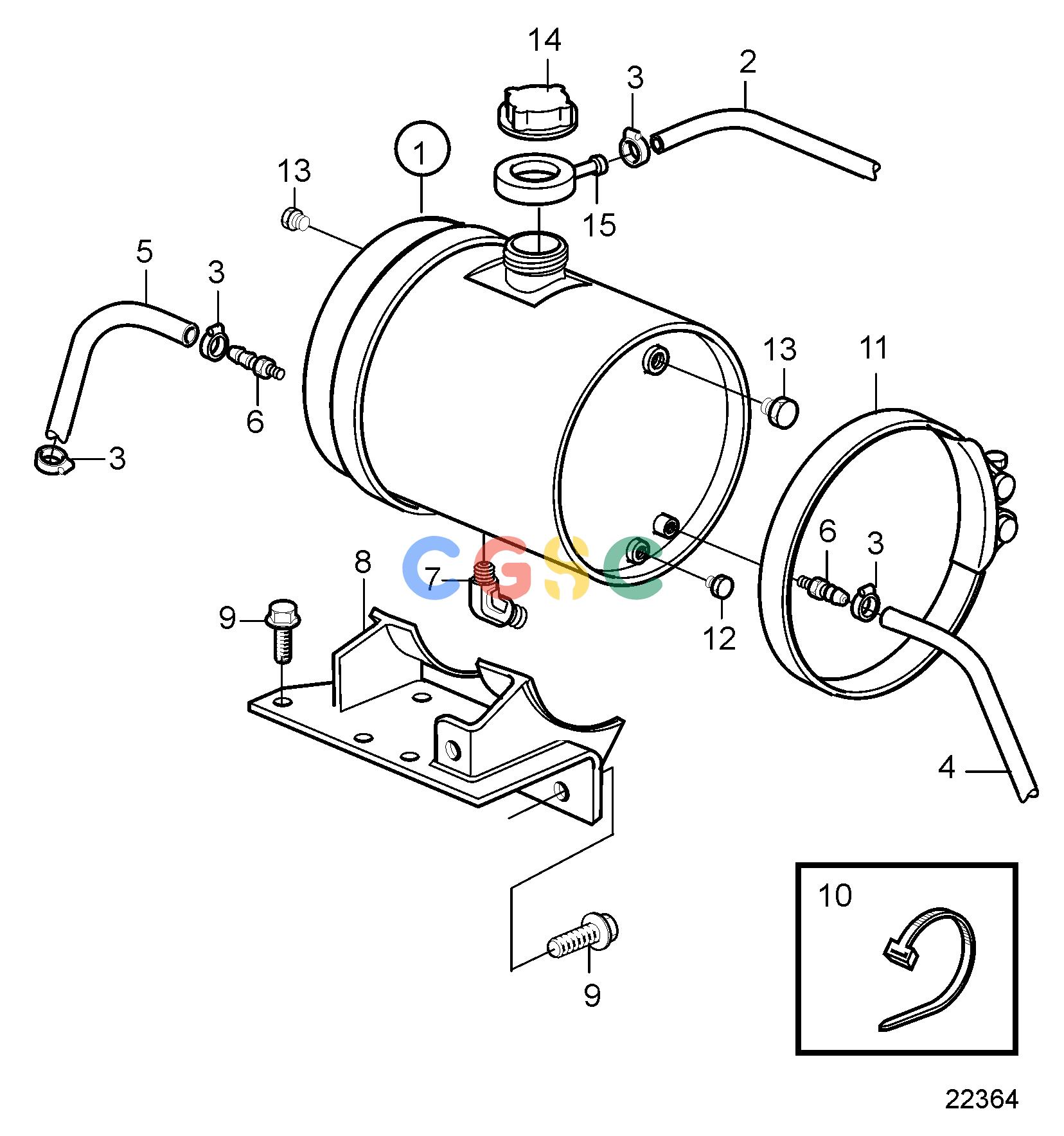

沃尔沃零件查询D9A2A; D9A2A MG; D9A2A D9A-MGCooling SystemExpansion Tank, Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827367
|
[1] |
Expansion tank
|
|
| 2. |
192618
|
[1] |
Hose
|
L=2300mm
|
| 3. |
994556
|
[5] |
Hose clamp
|
|
| 4. |
943367
|
[1] |
Rubber hose
|
L=850mm
|
| 5. |
943367
|
[1] |
Rubber hose
|
L=700mm
|
| 6. |
942722
|
[2] |
Nipple
|
|
| 7. |
942649
|
[1] |
Elbow nipple
|
|
| 8. |
3835107
|
[1] |
Bracket
|
|
| 9. |
984751
|
[4] |
Flange screw
|
|
| 10. |
948211
|
[1] |
Cable tie
|
|
| 11. |
3839545
|
[2] |
Tensioner
|
|
| 12. |
960632
|
[1] |
Plug
|
|
| 13. |
479979
|
[2] |
Plug
|
|
| 14. |
1674083
|
[1] |
Pressure cap
|
|
| 15. |
3828863
|
[1] |
Rubber collar
|
|
