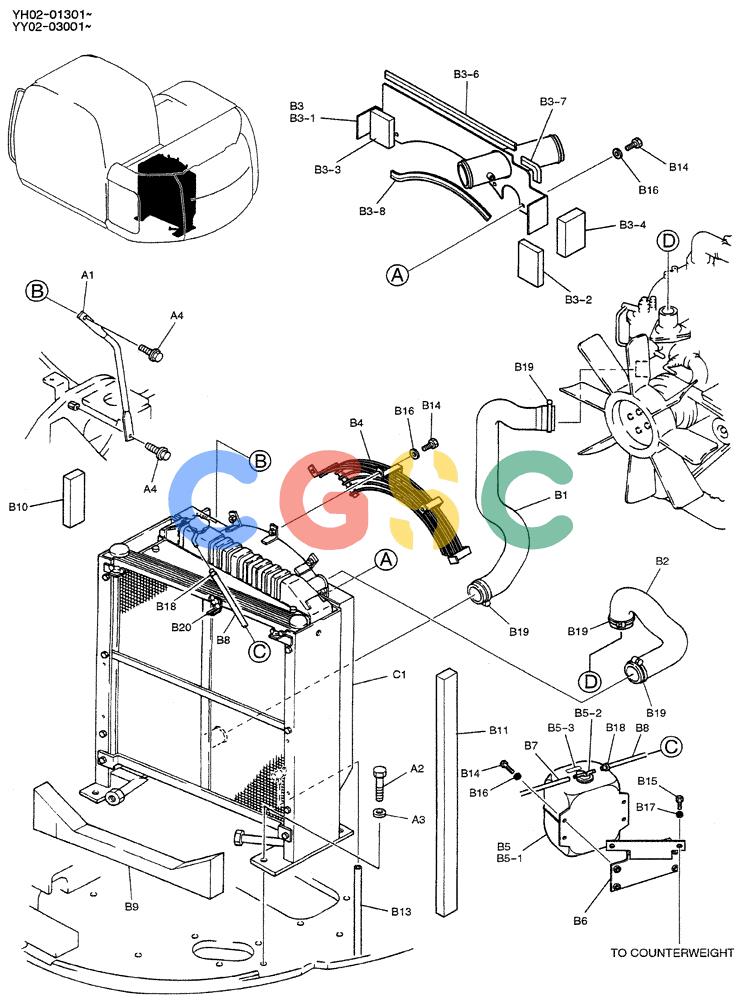

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-005) - RADIATOR INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX05P00002F1 | [1] | RADIATOR | KOBINSTAL |
| A1. | YX05P01024P1 | [1] | STAY | KOBSTAY |
| A2. | ZS18C16035 | [3] | SCREW,Hex, M16 x 35mm | KOBM16x2.0x35mm |
| A3. | ZW16H16000 | [3] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| A4. | 2420T6786 | [2] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| . . | YY05P00005F1 | [1] | RADIATOR | KOBGROUP |
| B1. | YX05P01030P1 | [1] | RADIATOR HOSE | KOB |
| B2. | YX05P01031P1 | [1] | RADIATOR HOSE | KOB |
| B3. | YY05P01010F1 | [1] | BRACKET | KOBASSY Superseded by part number: YY05P01137F1 |
| B3-1. | YY05P01012P1 | [1] | BRACKET | KOB Superseded by part number: YY05P01135P1 |
| B3-2. | YX05P01019P1 | [1] | FOAM INSULATION | KOB |
| B3-3. | YY05P01011P1 | [1] | FOAM INSULATION | KOB |
| B3-4. | YX05P01034P1 | [1] | FOAM INSULATION | KOB |
| B3-6. | 2427P1836D41 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| B3-7. | 2427P1836D17 | [1] | WEATHERSTRIP | KOB105mm Long (4-1/8 in) |
| B3-8. | 2427P1836D38 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| B4. | YY05P01008P1 | [1] | GUARD | KOB |
| B5. | YX05P01012F1 | [1] | TANK | KOBASSY, WATER SUB |
| B5-1. | YX05P01012S001 | [1] | TANK | KOBWATER Superseded by part number: YX05P01012F1 |
| B5-2. | YN05P01041S2 | [1] | CAP ASSY. | KOBCAP ASSY Superseded by part number: YN05P01041S002 |
| B5-3. | 2427U203S3 | [1] | LABEL | KOB |
| B6. | YY05P01020P1 | [1] | BRACKET | KOB |
| B7. | HX11Y05064DX | [1] | HOSE,8mm ID x 640mm L | KOB |
| B8. | HX11Y05120DX | [1] | HOSE | KOB |
| B9. | YX05P01026P1 | [1] | FOAM INSULATION | KOB |
| B10. | YY05P01013P1 | [1] | FOAM INSULATION | KOB |
| B11. | YY05P01014P1 | [1] | FOAM INSULATION | KOB |
| B13. | YY05P01027D1 | [1] | HOSE | KOB |
| B14. | ZS18C08020 | [10] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| B15. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| B16. | ZW16X08000 | [10] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| B17. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| B18. | ZC16X01200 | [2] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| B19. | ZC16X05800 | [4] | CLIP | KOBClamp, Hose -- Min 50 x Max 66mm |
| B20. | 2432R233D1 | [1] | CLIP | KOB37x12x40mm |
| C1. | YY05P00004F1 | [1] | RADIATOR | KOBASSY, SEE FIG 01-006 |
