神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-007) - CLEANER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
486 次

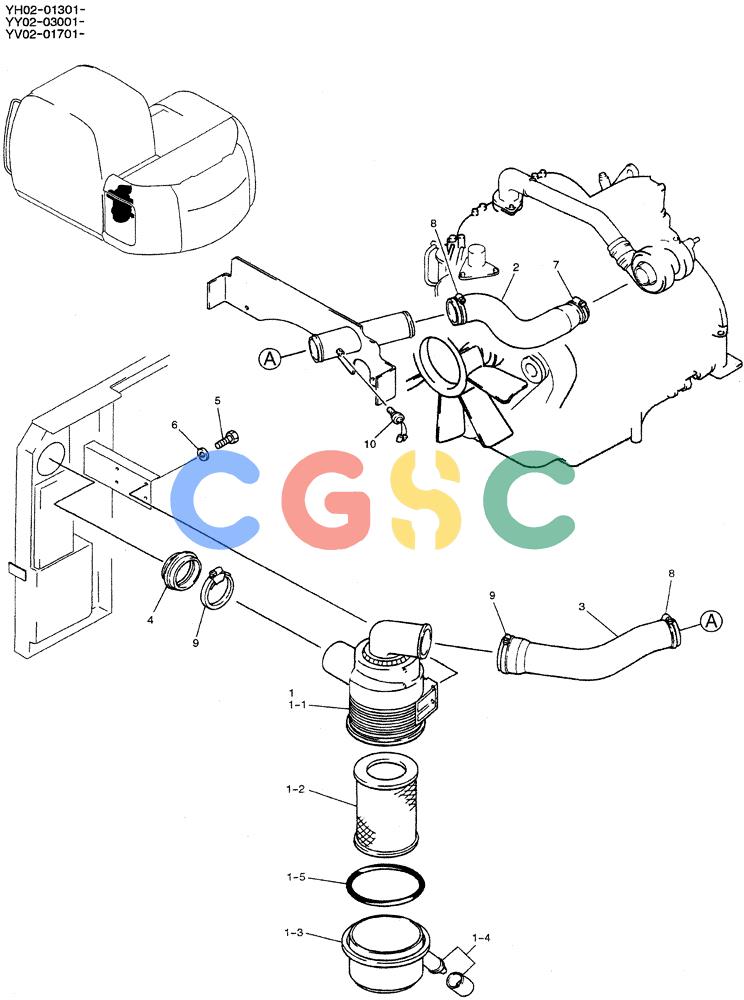

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY11P00001F1 | [1] | CLEANER | KOBASSY, AIR |
| 1. | YX11P00005F1 | [1] | FILTER ASSY | KOBASSY |
| 1-1. | YX11P00005S001 | [1] | CLEANER | KOB Superseded by part number: YX11P00005F1 |
| 1-2. | LP11P00004S002 | [1] | ELEMENT | KOBFILTER Superseded by part number: 84217229 |
| 1-3. | YX11P00002S003 | [1] | COVER | KOBASSY |
| 1-4. | YX11P00002S004 | [1] | VALVE | KOBASSY |
| 1-5. | YX11P00005S005 | [1] | O-RING | KOB |
| 2. | YY11P01004P1 | [1] | HOSE | KOBAIR |
| 3. | YY11P01005P1 | [1] | HOSE | KOBAIR |
| 4. | YX11P01004P1 | [1] | GROMMET | KOB |
| 5. | ZS18C08014 | [4] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 6. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 7. | ZC16X07000 | [1] | CLIP | KOBClamp, Hose -- Min 60 x Max 81mm |
| 8. | ZC16X08700 | [2] | CLIP | KOBClamp, Hose -- Min 77 x Max 96mm |
| 9. | ZC16X10000 | [2] | CLIP | KOBClamp, Hose -- Min 87 x Max 113mm |
| 10. | LE11P01015F1 | [1] | INDICATOR | KOBAir Filter Restriction Gauge |
