神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-010) - PUMP ASSY, FUEL, P/N YY22P00005F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
444 次

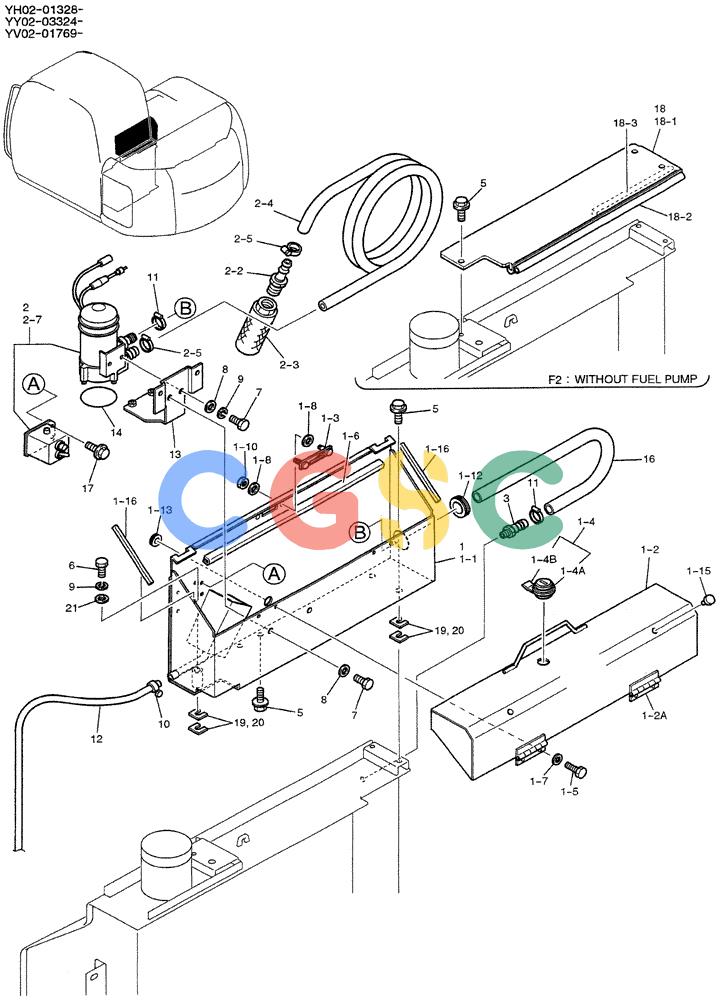

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY22P00005F1 | [1] | PUMP | KOBASSY, FUEL (WITH FUEL PUMP) |
| 1. | YY22P01025F1 | [1] | BOX | KOB |
| 1-1. | YY22P01020P2 | [1] | BOX | KOB Superseded by part number: YY22P01020P3 |
| 1-2. | YY22P01022P1 | [1] | COVER | KOB |
| 1-2A. | LE03M01040P1 | [2] | HINGE | KOB |
| 1-3. | YY22P01015P1 | [1] | PLATE | KOB |
| 1-4. | YY22P01009F1 | [1] | LOCK | KOBASSY |
| 1-4A. | YR22C01025P1 | [1] | LOCK | KOB, Serial Range: YH02-01328-YH02-02076 Superseded by part number: YR22C01025P2 |
| 1-4A. | YR22C01025P2 | [1] | LOCK | KOB, Start Serial: YH03-02077- |
| 1-4B. | YY22P01007P1 | [1] | PLATE | KOB |
| 1-5. | ZS18C06012 | [4] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 1-6. | PM22C01020DJ | [1] | TRIM PANEL | KOB515mm Long (20-17/64 in) |
| 1-7. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 1-8. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 1-10. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 1-12. | 2420R372D122 | [1] | GROMMET | KOB |
| 1-13. | YX14E01004P1 | [1] | GROMMET | KOB |
| 1-15. | YT21C01162P2 | [2] | RUBBER BLOCK | KOB |
| 1-16. | PN02C01004D1 | [2] | TRIM PANEL | KOB Superseded by part number: S16539-16000 |
| 2. | YF22P00003F3 | [1] | PUMP | KOBASSY, FUEL |
| 2-2. | 2444Z1233D7 | [1] | ELEC CONNECTOR | KOB |
| 2-3. | 2446Z143 | [1] | STRAINER ASSY. | KOB |
| 2-4. | YF22P01004D1 | [1] | HOSE | KOB |
| 2-5. | ZC15X02600 | [2] | CLAMP | KOB |
| 2-7. | YF22P00002F3 | [1] | PUMP | KOBASSY, FUEL,SEE FIG 01-011 |
| 3. | YY22P01024P1 | [1] | ELEC CONNECTOR | KOB |
| 5. | YR21C01159P1 | [4] | BOLT | KOBSEMS |
| 6. | ZS18C08065 | [1] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| 7. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 8. | YR21C01161P1 | [4] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| 9. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 11. | ZC16X02800 | [2] | CLIP | KOBClamp, Hose -- Min 22 x Max 33mm |
| 12. | HX11Y06120DX | [1] | HOSE | KOB |
| 13. | YY22P01023P1 | [1] | BRACKET | KOB |
| 14. | YY22P01026P1 | [1] | RUBBER | KOB |
| 16. | YF22P01004D3 | [1] | HOSE | KOB |
| 17. | ZM61C06012 | [2] | BOLT | KOBM06x1.0x12mm (Incls. Washer & Lockwasher) |
| 19. | PY21C01042D1 | [2] | SPACER | KOB |
| 20. | PY21C01042D2 | [2] | SPACER | KOB |
| 21. | YN43H01151P1 | [1] | WASHER | KOBID 8.5 x OD 23 x Th 4.5mm |
| . . | YY22P00005F2 | [1] | PUMP | KOBASSY, FUEL (WITHOUT FUEL PUMP) Superseded by part number: YY22P00003F2 |
| 18. | YY21C01184F1 | [1] | COVER ASSY | KOB |
| 18-1. | YY21C01185P1 | [1] | COVER | KOB |
| 18-2. | YN22C01099D7 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 18-3. | PY21C01034D2 | [1] | GASKET | KOB |
