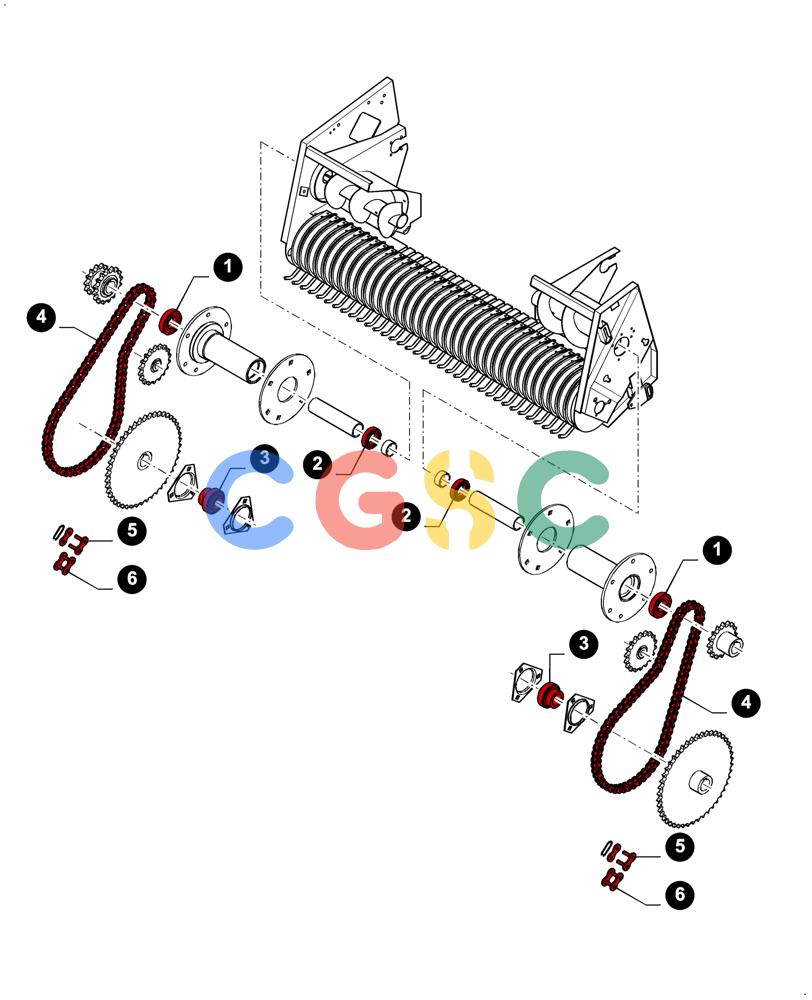

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (00.00LB030[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP AUGER DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84438926
|
[2] |
BALL BEARING,35mm ID x 72mm OD x 17mm W
|
NH
|
| 2. |
364908
|
[2] |
BALL BEARING,35mm ID x 62mm OD x 14mm W
|
ZED
|
| 3. |
84814912
|
[2] |
BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm
|
ZED
Superseded by part number: 87605590
|
| 4. |
84007380
|
[2] |
CHAIN,Roller, 72 Links x 19.05mm = 1371.6mm
|
ZED
(5)
|
| 5. |
165590
|
[2] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
| 6. |
25808
|
[1] |
LINK CHAIN
|
NNA
Superseded by part number: 86595251, 86595251, ST205A
|
