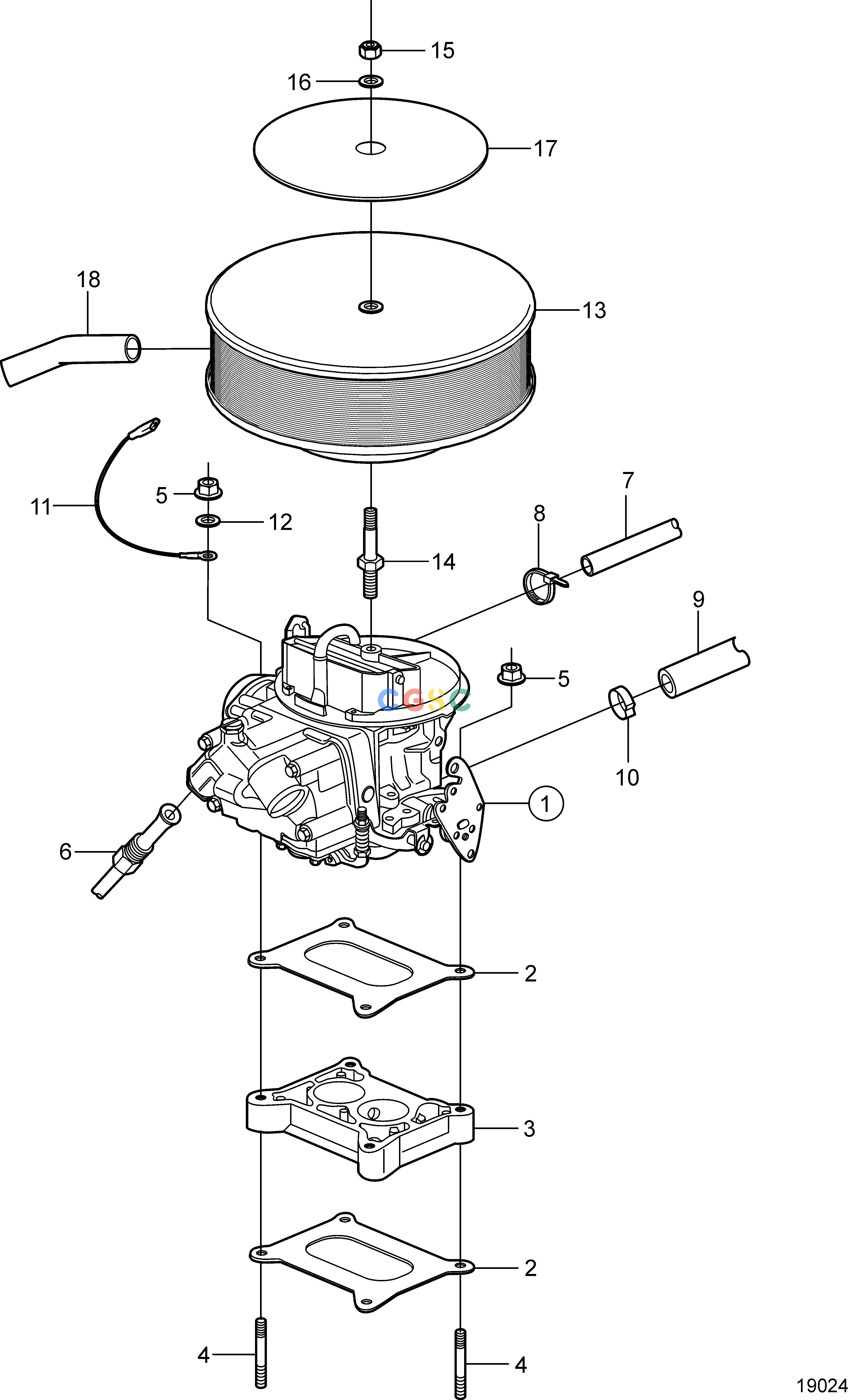

沃尔沃零件查询3.0GLP-EFuel SystemCarburetor Mounting, Holley ™EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3887697
|
[1] |
Kit
|
Replaced by next part number
|
| 1. |
21610333
|
[1] |
Carburettor
|
|
| 2. |
3853283
|
[2] |
Gasket
|
|
| 3. |
3860750
|
[1] |
Spacer
|
|
| 4. |
3860751
|
[4] |
Stud
|
|
| 5. |
3852142
|
[4] |
Nut
|
|
| 6. |
3860950
|
[1] |
Fuel pipe
|
|
| 7. |
3854242
|
[1] |
Hose
|
L=991mm
|
| 8. |
948211
|
[1] |
Cable tie
|
|
| 9. |
3856870
|
[1] |
Hose
|
|
| 10. |
982663
|
[1] |
Hose clamp
|
|
| 11. |
3853845
|
[1] |
Cable
|
|
| 12. |
3852191
|
[1] |
Washer
|
|
| 13. |
3862630
|
[1] |
Flame shield
|
|
| 14. |
3853560
|
[1] |
Stud
|
|
| 15. |
3852118
|
[1] |
Nut
|
|
| 16. |
3852193
|
[1] |
Washer
|
|
| 17. |
3862780
|
[1] |
Decal
|
3.0 GL
|
| 18. |
3862743
|
[1] |
Hose
|
|
