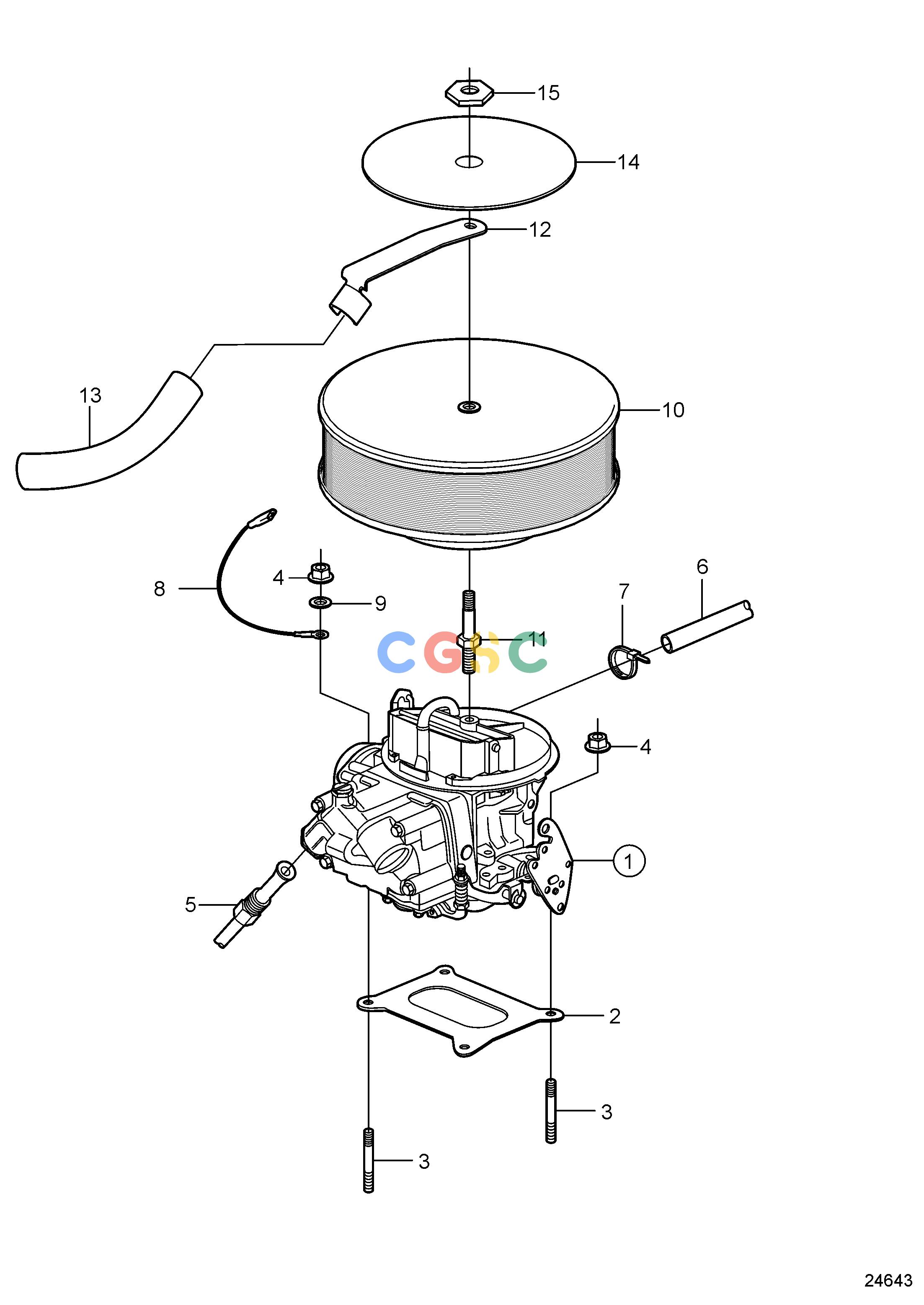

沃尔沃零件查询3.0GSMLKD; 3.0GSPLKDFuel SystemCarburettor MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3854086
|
[1] |
Carburettor
|
|
| 2. |
3853283
|
[1] |
Gasket
|
|
| 3. |
3853373
|
[4] |
Stud
|
|
| 4. |
3852142
|
[4] |
Nut
|
|
| 5. |
3854869
|
[1] |
Fuel pipe
|
|
| 6. |
3854242
|
[1] |
Hose
|
L=991mm
|
| 7. |
948211
|
[1] |
Cable tie
|
|
| 8. |
3853845
|
[1] |
Cable
|
|
| 9. |
3852191
|
[1] |
Washer
|
|
| 10. |
3854026
|
[1] |
Flame shield
|
|
| 11. |
3852708
|
[1] |
Stud
|
|
| 12. |
3852438
|
[1] |
Connector
|
|
| 13. |
3853254
|
[1] |
Hose
|
|
| 14. |
3854981
|
[1] |
Decal
|
3.0GS
|
| 15. |
3853561
|
[1] |
Nut
|
|
