神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-025) - LEVER ASSY, PROPEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
191 次

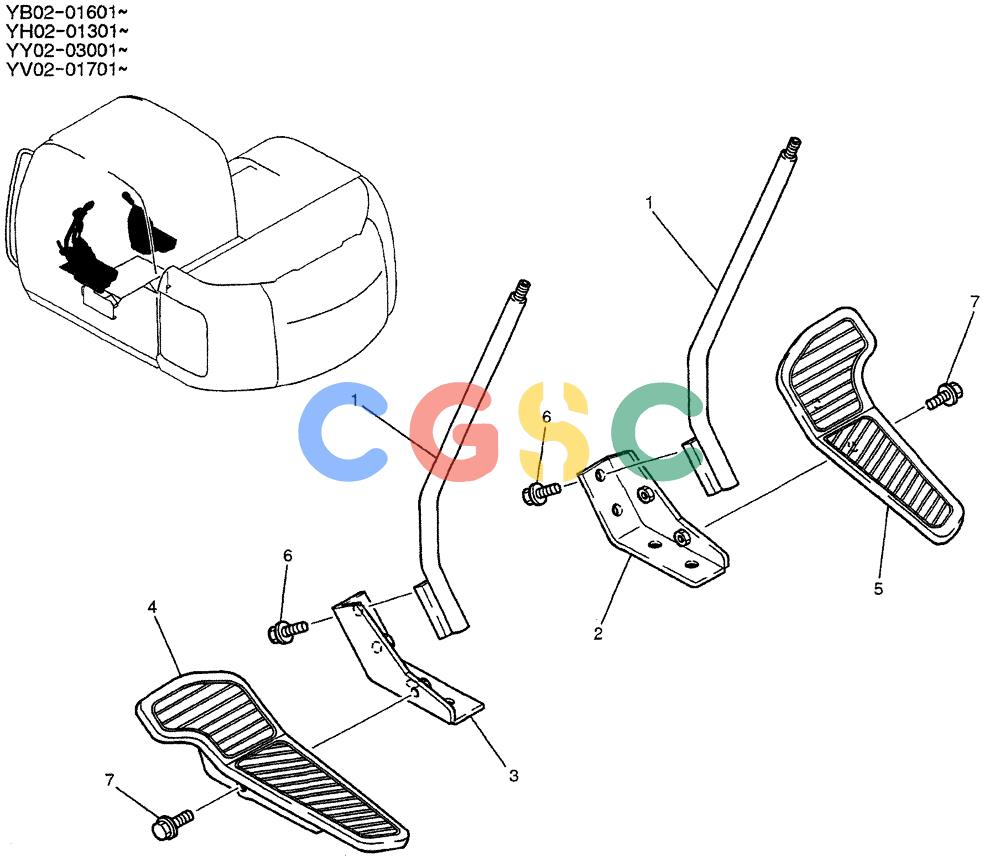

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV50M00003F1 | [1] | LEVER ASSY. | KOBPROPEL |
| 1. | YV50M01008P1 | [2] | LEVER | KOB |
| 2. | YV50M01009P1 | [1] | SUPPORT | KOB(R.H) |
| 3. | YV50M01010P1 | [1] | SUPPORT | KOB(L.H) |
| 4. | YV55M01001P1 | [1] | PEDAL | KOB(L.H) |
| 5. | YV55M01002P1 | [1] | PEDAL | KOB(R.H) |
| 6. | ZM27C08020 | [4] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 7. | ZM27C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
