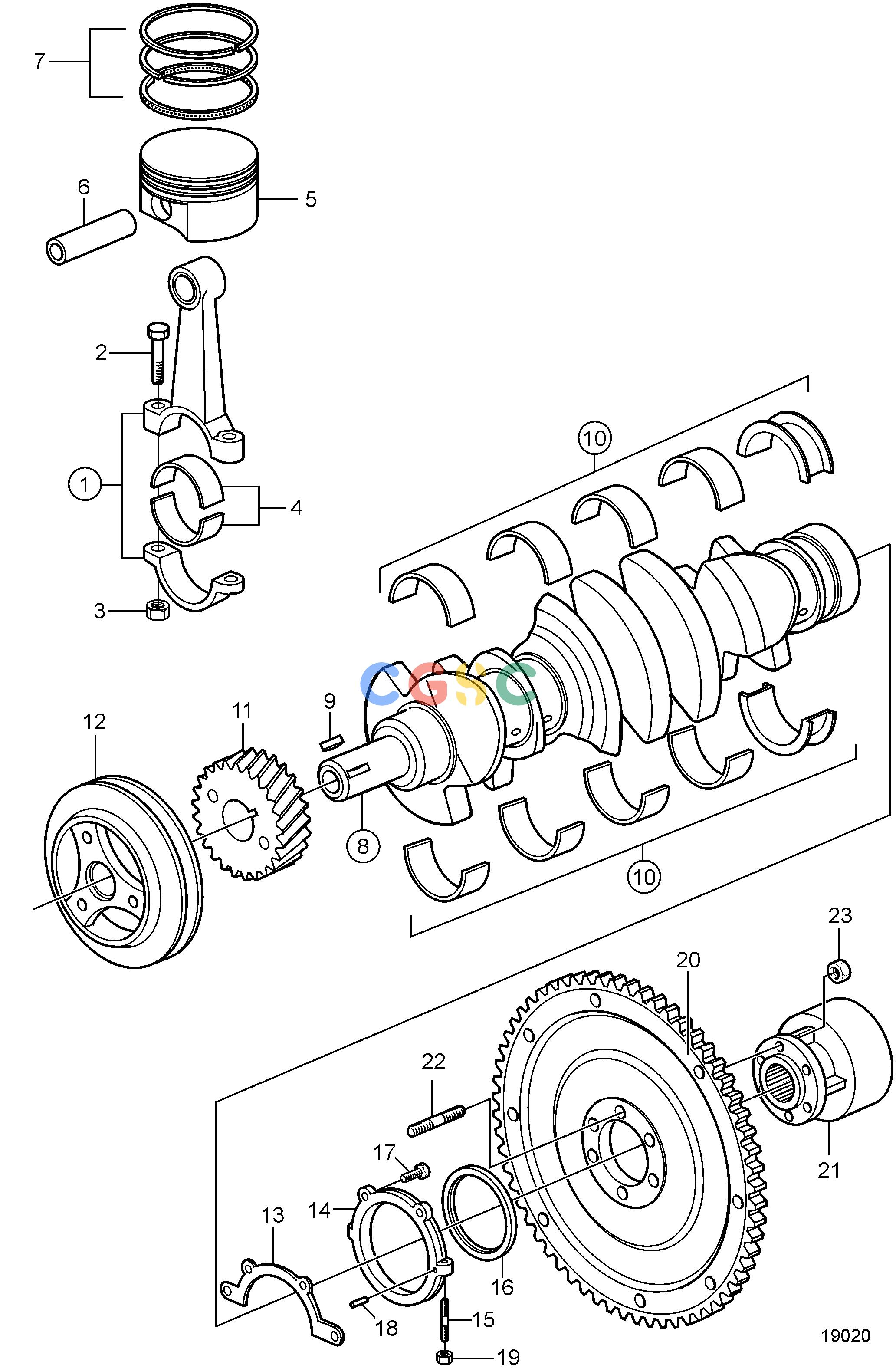

沃尔沃零件查询3.0GXiC-J; 3.0GXi-JEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3853957
|
[4] |
Connecting rod
|
|
| 2. |
3853162
|
[8] |
Bolt
|
|
| 3. |
3853413
|
[8] |
Nut
|
|
| 4. |
3858954
|
[4] |
Big-end bearing kit
|
|
| 5. |
3853340
|
[4] |
Piston
|
other
|
| 5. |
3853477
|
[4] |
Piston
|
O.S=0.020'' (0.51mm)
|
| 6. |
|
|
|
not sold separately
|
| 7. |
3853960
|
[4] |
Piston ring kit
|
other
|
| 7. |
3854252
|
[4] |
Piston ring kit
|
O.S=0.020'' (0.51mm)
|
| 8. |
|
|
|
With position sensor ring
|
| 9. |
3852663
|
[1] |
Woodruff key
|
|
| 10. |
3856731
|
[1] |
Main bearing
|
other
|
| 10. |
3856732
|
[1] |
Main bearing
|
U.S=0.010'' (0.25mm)
|
| 10. |
3856733
|
[1] |
Main bearing
|
U.S=0.020'' (0.51mm)
|
| 10. |
3856734
|
[1] |
Main bearing
|
U.S=0.030'' (0.76mm)
|
| 11. |
3852661
|
[1] |
Gear
|
|
| 12. |
3852662
|
[1] |
Oscillation damper
|
|
| 13. |
3852656
|
[1] |
Gasket
|
|
| 14. |
3855820
|
[1] |
Housing
|
|
| 15. |
3853202
|
[2] |
Stud
|
|
| 16. |
3852657
|
[1] |
Sealing
|
|
| 17. |
3857901
|
[2] |
Bolt
|
L=1.38'' (35mm)
|
| 17. |
3853339
|
[2] |
Bolt
|
L=0.75'' (19mm)
|
| 18. |
3856140
|
[1] |
Pin
|
|
| 19. |
3853168
|
[2] |
Nut
|
|
| 20. |
3858658
|
[1] |
Flywheel
|
|
| 20. |
3855970
|
[1] |
Gear
|
|
| 21. |
3854032
|
[1] |
Clutch
|
|
| 22. |
3862516
|
[6] |
Stud
|
|
| 23. |
3853273
|
[6] |
Nut
|
|
