LIST A
|
[1] |

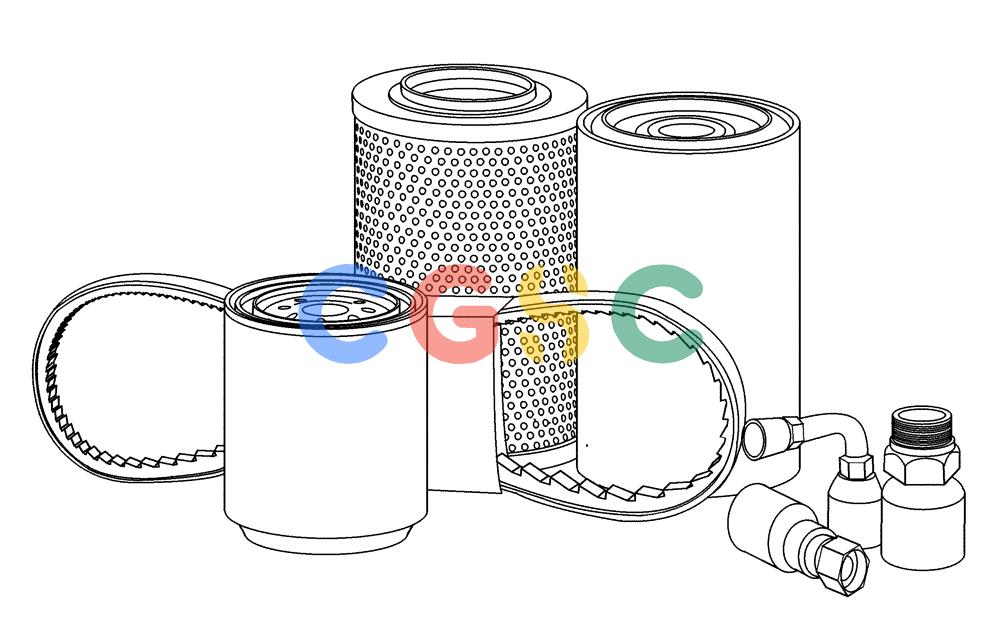

Parts Required For Preventative Maintenance
|
|
| 1. |
536632
|
[10] |
BOLT
|
MKT
Shear, M10 x 60 Superseded by part number: 86508619
|
| 2. |
83931335
|
[10] |
BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8
|
ZED
Shear
|
| 3. |
84056883
|
[10] |
TINE,2 Prongs, 96.52mm L
|
ZED
Pickup, Rotor Units
|
| 4. |
84074264
|
[10] |
REEL TINE,Coiled, 2 Prongs, 145mm L
|
ZED
Pickup, Silage Units
|
| 5. |
9838803
|
[5] |
KNIFE,48mm L x 27mm W x 2mm Thk
|
ZED
Knotter
|
| 6. |
9847572
|
[10] |
TINE,2 Prongs, 96.52mm L
|
NH
Pickup
|
| . . |
LIST B
|
[1] |
Parts Required For Preventative Maintenance And Basic Repair
|
|
| 7. |
87690629
|
[4] |
ROPE GUIDE ROLLER,31.5mm OD x 16mm L
|
ZED
Twine Guide
|
| 8. |
87615918
|
[1] |
FINGER
|
ZED
Twine
|
| 9. |
87729344
|
[1] |
TENSION SPRING
|
ZED
|
| 10. |
87730406
|
[1] |
TENSION SPRING
|
ZED
|
| 11. |
87728773
|
[1] |
TENSION SPRING
|
ZED
Superseded by part number: 84465174
|
| 12. |
87645098
|
[1] |
BILL HOOK
|
ZED
Knotter Lip
|
| 13. |
87645121
|
[1] |
BILL HOOK
|
ZED
Knotter Assy
|
| 14. |
87728047
|
[1] |
ARM
|
ZED
Knife
|
| 15. |
9838783
|
[1] |
CAM
|
ZED
Knotter
|
| 16. |
87660400
|
[1] |
BRAKE SHOE
|
ZED
Knotter
|
| 17. |
87617284
|
[1] |
SCRAPER
|
ZED
Scraper
|
| 18. |
84145759
|
[2] |
TOOTH
|
ZED
|
| 19. |
87723764
|
[1] |
NEEDLE
|
ZED
High
|
| 20. |
84819065
|
[4] |
CLUTCH PLATE
|
ZED
|
| 21. |
54770
|
[4] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 22. |
100037
|
[10] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
Lock
|
| 23. |
241-1316
|
[5] |
LINK,19.05mm Pitch
|
CAS
Chain
|
| 24. |
261798
|
[6] |
CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk
|
NH
Clutch
|
| 25. |
322360
|
[2] |
BALL BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 26. |
323327
|
[1] |
SPHERICAL BEARING,40mm ID x 80mm OD x 23mm W
|
ZED
|
| 27. |
364908
|
[2] |
BALL BEARING,35mm ID x 62mm OD x 14mm W
|
ZED
|
| 28. |
417722
|
[1] |
SEAL,30mm ID x 62mm OD x 7mm Thk
|
ZED
|
| 29. |
84021175
|
[1] |
SPRING
|
ZED
|
| 30. |
84038524
|
[2] |
SPRING,Compression, 1.26" OD x 13.39" L
|
ZED
|
| 31. |
84041862
|
[2] |
CIRCLIP
|
ZED
|
| 32. |
84041936
|
[1] |
ROLLER,25mm OD x 15mm L
|
ZED
|
| 33. |
87652359
|
[2] |
PIN,15MM OD X 35MM L
|
PLO
|
| 34. |
84043973
|
[2] |
FRICTION WASHER,15mm ID x 21mm OD x 1.5mm Thk
|
ZED
|
| 35. |
84053769
|
[2] |
SPRING
|
ZED
|
| 36. |
84056426
|
[5] |
KNIFE
|
ZED
|
| 37. |
84056924
|
[1] |
CAM FOLLOWER,Tine Shaft
|
ZED
|
| 38. |
84058012
|
[1] |
BUSHING,15.88mm ID x 30mm OD x 16mm L
|
ZED
|
| 39. |
87695682
|
[1] |
SHEAR BOLT BUSHING,10.2mm ID x 31.7mm OD x 38mm L
|
ZED
|
| 40. |
84058863
|
[1] |
SENSOR
|
ZED
|
| 41. |
84214795
|
[5] |
GUARD
|
ZED
Pickup Superseded by part number: 84274384
|
| 42. |
84078760
|
[1] |
SENSOR
|
ZED
|
| 43. |
84320124
|
[1] |
CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100
|
ZED
|
| 44. |
87331610
|
[5] |
GUIDE
|
ZED
Twine
|
| 45. |
84438926
|
[2] |
BALL BEARING,35mm ID x 72mm OD x 17mm W
|
NH
|
| 46. |
84801631
|
[5] |
GUARD
|
ZED
Pickup Superseded by part number: 84468627
|
| 47. |
84607927
|
[10] |
SCREW,#10 - 32 x 0.55",
|
ZED
|
| 48. |
84806594
|
[2] |
SPRING
|
ZED
|
| 49. |
84806601
|
[1] |
SPRING,Extension, 28.399mm OD x 108mm L
|
ZED
|
| 50. |
84814869
|
[2] |
KNIFE,108mm L x 68mm W x 10mm Thk
|
ZED
|
| 51. |
84814870
|
[1] |
KNIFE,90mm L x 68mm W x 10mm Thk
|
ZED
|
| 52. |
84818537
|
[1] |
TIE-ROD,M10 x 333.4mm
|
ZED
|
| 53. |
84819064
|
[2] |
CLUTCH LINING
|
ZED
|
| 54. |
86511478
|
[2] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
Screw
|
| 55. |
86595251
|
[2] |
LINK,Chain, 19.05mm Pitch
|
ZED
|
| 56. |
86595276
|
[2] |
LINK,15.88mm Pitch
|
NH
Chain
|
| 57. |
86627654
|
[10] |
SPACER
|
NH
Support, Pickup Finger Superseded by part number: 84427925
|
| 58. |
16104414
|
[10] |
LOCK NUT,M8 x 1.25
|
LEC
Lock
|
| 59. |
9837806
|
[1] |
FLANGED BEARING,25mm ID
|
ZED
|
| 60. |
9837879
|
[1] |
CHAIN,Roller, 68 Links x 19.05mm = 1295.4mm
|
ZED
|
| 61. |
9837965
|
[1] |
CHAIN,Roller, 123 Links x 15.88mm = 1952.63mm
|
ZED
|
| 62. |
9837966
|
[1] |
CHAIN,Roller, 105 Links x 19.05mm = 2000.25mm
|
ZED
|
| 63. |
9837987
|
[1] |
LEVER
|
ZED
|
| 64. |
9838237
|
[10] |
HEX SOC SCREW,CSS, #10 - 32 x 1/2"
|
ZED
|
| 65. |
9838366
|
[1] |
ROLLER,32mm OD x 40mm L
|
ZED
|
| 66. |
9838773
|
[2] |
DISC
|
ZED
Superseded by part number: 84476390
|
| 67. |
9838790
|
[10] |
PIN,5mm OD x 16mm L
|
ZED
|
| 68. |
9838802
|
[2] |
ROLLER
|
ZED
|
| 70. |
9838815
|
[1] |
GEAR
|
ZED
|
| 71. |
9838834
|
[5] |
SHIM,57.15mm ID x 76.2mm OD x 0.8mm Thk
|
ZED
|
| 72. |
9838862
|
[5] |
SPRING
|
ZED
|
| 73. |
9839358
|
[1] |
CHAIN,Roller, 106 Links x 25.4mm = 2692.4mm
|
ZED
|
| 74. |
84232219
|
[1] |
SENSOR
|
ZED
Superseded by part number: 84523156
|
| 75. |
87751450
|
[1] |
ECU
|
ZED
|
| . . |
87751450R
|
[1] |
REMAN ELECT CONTROL
|
ZED
LB333S, LB333P, LB333R all (9/08-)
|
| . . |
87751450C
|
[1] |
CORE-ELECTRONIC CONT
|
ZED
Return Number
|
| 76. |
87342073
|
[1] |
SENSOR
|
GI
Housing
|
