纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-167-00[01]) - CYLINDER ASSY COUNTERWEIGHT ARM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
283 次

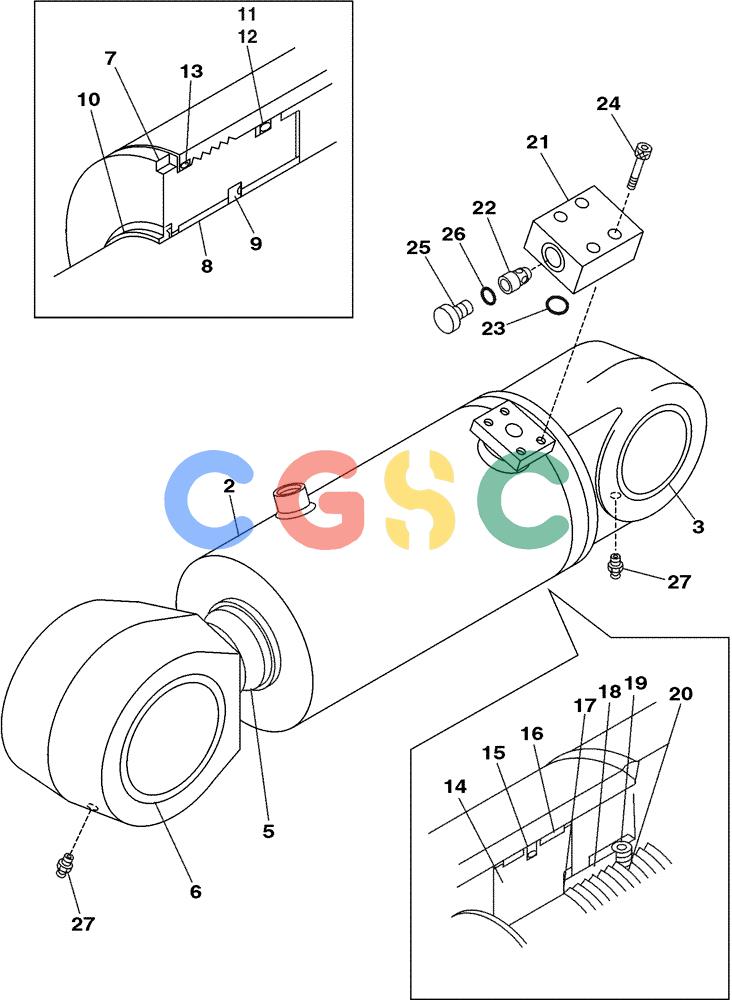

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUB0156 | [1] | HYDRAULIC CYLINDER | SUM |
| . . | LR00748 | [1] | HYD CYL SLEEVE | SUM |
| 2. | LR00749 | [1] | PIPE ASSY. | SUM |
| 3. | LB00698 | [1] | BUSHING | SUM |
| . . | LB00699 | [1] | PISTON ROD | SUM |
| 5. | LB00700 | [1] | PISTON ROD | SUM |
| 6. | LB00701 | [1] | BUSHING | SUM |
| 7. | LU00136 | [1] | CYLINDER END CAP | SUM |
| 8. | LU00137 | [1] | CYLINDER END CAP | SUM |
| 9. | MBP0211 | [1] | O-RING | SUM |
| 10. | LE00420 | [1] | SEAL | SUM Superseded by part number: LE019410 |
| 11. | 154768A1 | [1] | O-RING | SUM |
| 12. | LE00433 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 13. | 154775A1 | [1] | O-RING | SUM |
| 14. | LJ00871 | [1] | JACK PISTON | SUM |
| 15. | 155323A1 | [1] | SEALING RING | SUM |
| 16. | LE00910 | [2] | SEALING STRIP | SUM |
| 17. | 155742A1 | [1] | WASHER | SUM |
| 18. | LA00556 | [1] | SPECIAL NUT | SUM |
| 19. | 156223A1 | [1] | SET SCREW | SUM |
| 20. | 155977A1 | [1] | BALL | SUM |
| 21. | LW00357 | [1] | HOUSING | SUM |
| 22. | LJ00870 | [1] | VALVE | SUM |
| 23. | 154499A1 | [1] | O-RING | SUM |
| 24. | 164502A1 | [4] | BOLT | SUM |
| 25. | LK00195 | [1] | PLUG | SUM |
| 26. | 154475A1 | [1] | O-RING | SUM |
| 27. | 153630A1 | [2] | LUBE NIPPLE | SUM |
| . . | LZ00464 | [1] | SEAL KIT | SUM |
