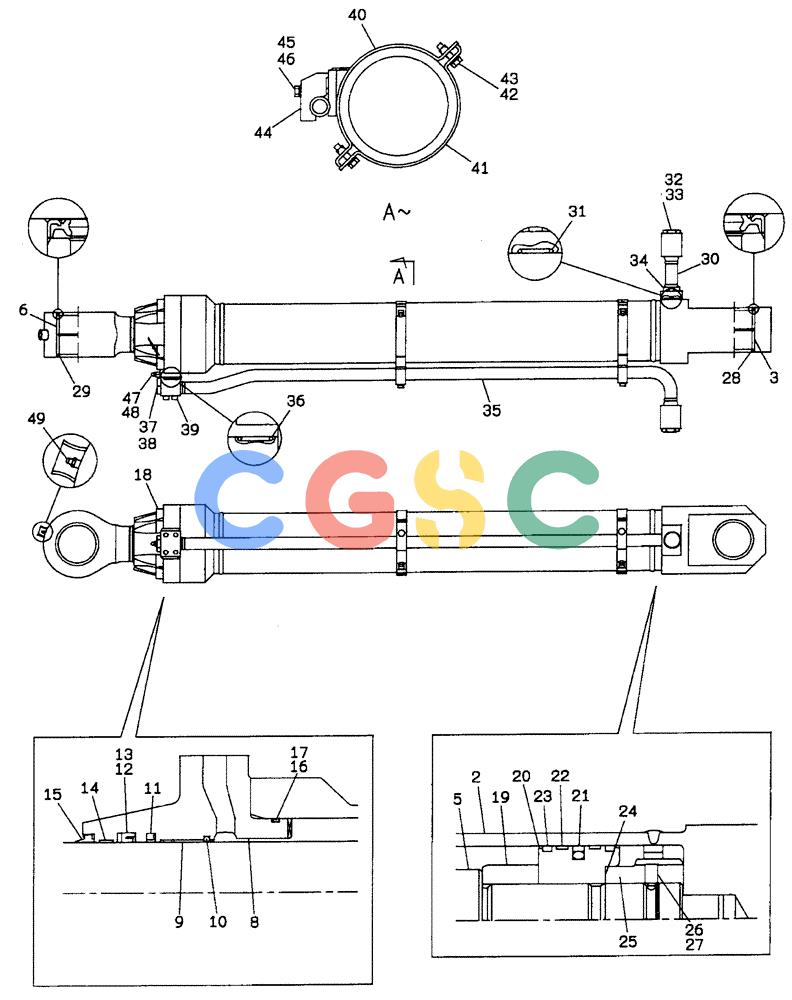

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-177-00[01]) - CYLINDER ASSY BUCKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
710 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUV0114 | [1] | BUCKET CYLINDER | SUM |
| . . | LR00457 | [1] | HYD. TUBE | SUM |
| 2. | LR00458 | [1] | PIPE ASSY. | SUM Superseded by part number: LR00457 |
| 3. | KUV0037 | [1] | BUSHING | SUM |
| . . | LB00453 | [1] | PISTON ROD | SUM |
| 5. | LB00454 | [1] | PISTON ROD | SUM Superseded by part number: LB00453 |
| 6. | KUV0035 | [1] | BUSHING | SUM |
| . . | LU00060 | [1] | CYLINDER END CAP | SUM |
| 8. | LU00061 | [1] | CYLINDER END CAP | SUM |
| 9. | LB00461 | [1] | BUSHING | SUM |
| 10. | LA00623 | [1] | LOCKING RING | SUM |
| 11. | LE00624 | [1] | RING | SUM |
| 12. | LE00485 | [1] | WIPER SEAL | SUM |
| 13. | LE00486 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 14. | LE00625 | [1] | SEALING STRIP | SUM |
| 15. | LE00626 | [1] | RING | SUM |
| 16. | LE00488 | [1] | O-RING | SUM |
| 17. | LE00627 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 18. | 108R033W110N | [8] | BOLT | SUM |
| 19. | LG00282 | [1] | RING | SUM Superseded by part number: LE00912 |
| 20. | LJ00626 | [1] | JACK PISTON | SUM |
| 21. | LE00628 | [1] | SEALING RING | SUMSEALRING |
| 22. | LE00629 | [2] | SEALING STRIP | SUM |
| 23. | LE00630 | [2] | SEALING STRIP | SUM |
| 24. | LH00213 | [1] | SEALING STRIP | SUM |
| . . | LZ00313 | [1] | SEAL KIT | SUM |
| 25. | LA00619 | [1] | SPECIAL NUT | SUM |
| 26. | LA00617 | [1] | SCREW,Hex Skt | SUM |
| 27. | LB00459 | [1] | BALL | SUM |
| 28. | LE00653 | [2] | WIPER SEAL | SUM |
| 29. | LE00654 | [2] | WIPER SEAL | SUM |
| 30. | LR00448 | [1] | PIPE ASSY. | SUM |
| 31. | TBU0048 | [1] | O-RING | SUM |
| 32. | LK00249 | [1] | PLUG | SUM |
| 33. | 154568A1 | [1] | O-RING | SUM |
| 34. | 108R016Z060N | [4] | BOLT | SUM |
| 35. | LR00449 | [1] | PIPE ASSY. | SUM |
| 36. | 154579A1 | [1] | O-RING | SUM |
| 37. | LK00250 | [2] | PLUG | SUM |
| 38. | 154539A1 | [2] | O-RING | SUM |
| 39. | 156231A1 | [4] | BOLT | SUM |
| 40. | LD00022 | [2] | CLAMP BRACKET | SUM |
| 41. | LD00023 | [2] | CLAMP BRACKET | SUM |
| 42. | 827-14050 | [4] | BOLT,Hex, M14 x 2 x 50mm, Cl 10.9 | SUMM14 x 50 Superseded by part number: 11116231 |
| 43. | 892-11014 | [6] | LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk | CAS |
| 44. | 155736A1 | [2] | HALF-FLANGE | SUM Superseded by part number: LS003200 |
| 45. | 153910A1 | [2] | BOLT,High Strength, Hex, M14 x 80mm | SUM |
| 47. | LJ00624 | [1] | BLEEDER | SUM |
| 48. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 49. | 153630A1 | [1] | LUBE NIPPLE | SUM |
