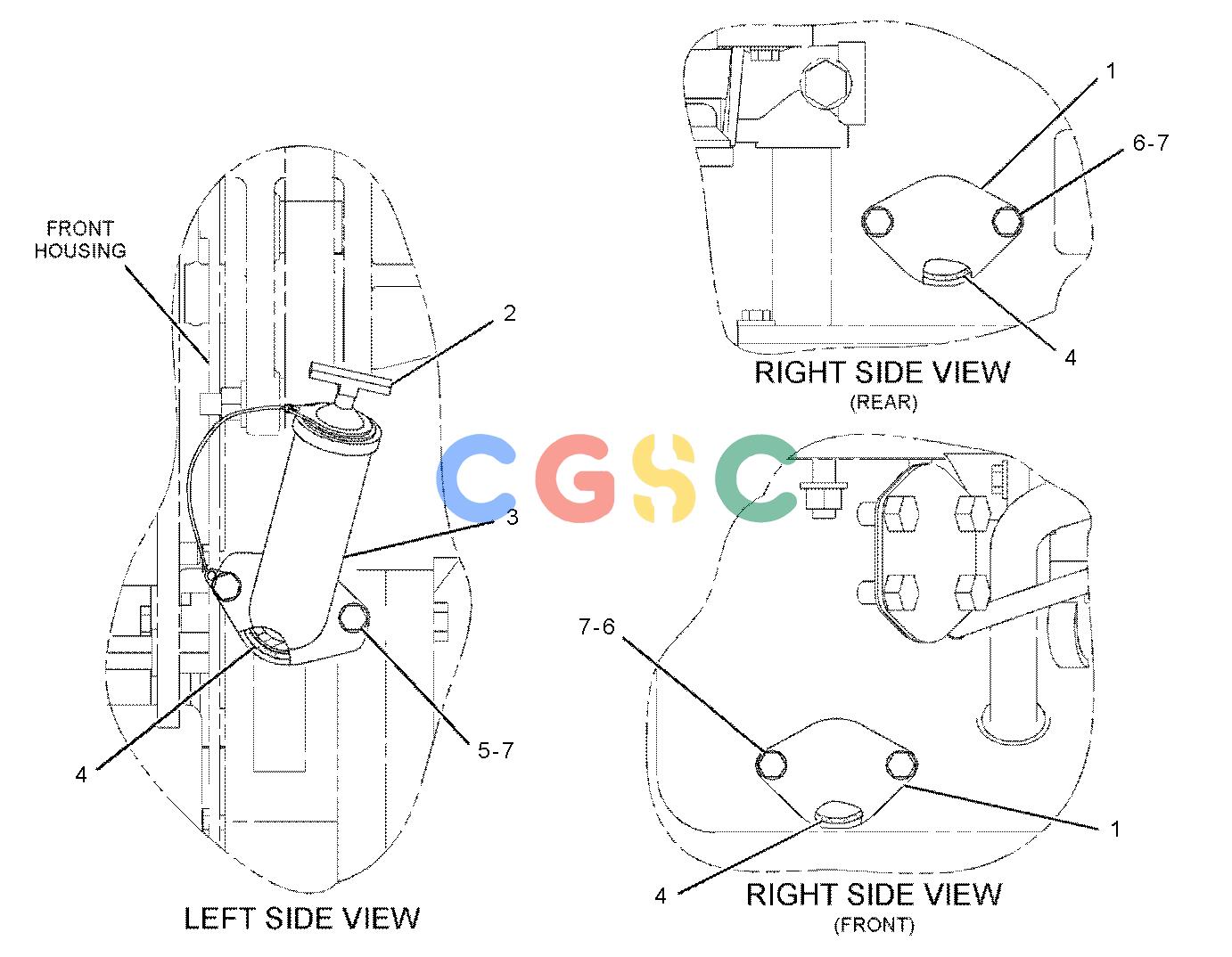

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7C-1445 | [2] | COVER | |
| 2. | 241-5645J | [1] | CAP AS-ENGINE OIL FILLER | |
| -OR- | ||||
| 4P-9579L | [1] | CAP AS-FILLER(ENGINE OIL) | ||
| 3. | 264-4288J | [1] | TUBE-OIL FILLER | |
| -OR- | ||||
| 7C-2909L | [1] | TUBE-OIL FILLER | ||
| 4. | 061-9455 | [3] | SEAL-O-RING | |
| 5. | 6V-3940M | [2] | BOLT(M8X1.25X25-MM) | |
| 6. | 6V-5217M | [4] | BOLT(M8X1.25X20-MM) | |
| 7. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| J | PARTS MARKED J TO BE USED TOGETHER | |||
| L | PARTS MARKED L TO BE USED TOGETHER | |||
| M | METRIC PART | |||
